FA67RF37-Y0.25KWDetailed Information
Keyword: what parallel axle gear reduction box for a 200kw power unit _fa67rf37-y0. 25kw_fa67rf37-y0. 55kw
FA67RF37-Y0.25KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA67RF37-Y0.25KW | 572 | 0.25KW | 2.30r/min | 930N.m | 73.5kg | 9150N | 0.90 |
| FA67RF37-Y0.25KW | 509 | 0.25KW | 2.60r/min | 810N.m | 73.5kg | 10400N | 1.00 |
| FA67RF37-Y0.25KW | 437 | 0.25KW | 3.00r/min | 700N.m | 73.5kg | 11200N | 1.15 |
| FA67RF37-Y0.25KW | 500 | 0.25KW | 2.60r/min | 830N.m | 73.5kg | 10200N | 1.00 |
| FA67RF37-Y0.25KW | 454 | 0.25KW | 2.90r/min | 755N.m | 73.5kg | 10800N | 1.10 |
| FA67RF37-Y0.25KW | 392 | 0.25KW | 3.30r/min | 650N.m | 73.5kg | 11600N | 1.25 |
| FA67RF37-Y0.25KW | 333 | 0.25KW | 3.90r/min | 550N.m | 73.5kg | 12200N | 1.50 |
| FA67RF37-Y0.25KW | 297 | 0.25KW | 4.40r/min | 485N.m | 73.5kg | 12500N | 1.70 |
| FA67RF37-Y0.25KW | 261 | 0.25KW | 5.00r/min | 425N.m | 73.5kg | 12700N | 1.90 |
| FA67RF37-Y0.25KW | 238 | 0.25KW | 5.50r/min | 385N.m | 73.5kg | 12900N | 2.10 |
Fa67rf37-y0. 55kw reduction engine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA67RF37-Y0.55KW | 257 | 0.55KW | 5.40r/min | 890N.m | 78.5kg | 9610N | 0.90 |
| FA67RF37-Y0.55KW | 231 | 0.55KW | 6.00r/min | 790N.m | 78.5kg | 10500N | 1.05 |
| FA67RF37-Y0.55KW | 205 | 0.55KW | 6.70r/min | 705N.m | 78.5kg | 11200N | 1.15 |
| FA67RF37-Y0.55KW | 175 | 0.55KW | 7.90r/min | 600N.m | 78.5kg | 11900N | 1.35 |
Fa67rf37-y0. 25kw power driveType:
F67rf37-y0. 25kw bottom foot installation of parallel axes - tilt gearsGearboc
Fa67bf37-y0. 25kw foot hollow axis installed parallel axle-slasher
Fv67brf37-y0. 25kw bottom feet axis installation of parallel axes - tilt gear deviators
Fa67rf37-y0. 25kw sky axis installation of parallel axes - tilt gear deviators
Fv67rf37-y0. 25kw sky axis installation of parallel axes - tilt gear deviators
Faf67rf37-y0. 25kw is the parallel axle-slash gear-reducing machine for the b5 french aerocentric axis
Fvf67rf37-y0. 25kw is a parallel axle-slash gear-reducing machine installed on the b5 flannel axis
Faz67rf37-y0. 25kw is a parallel axle for b14 flange-slasher
Fvz67rf37-y0. 25kw is a parallel axle for b14 flannel axle-slasher
Ff67rf37-y0. 25kw is a parallel to the b5 installation of a side axle-slasher
Fh67brf37-y0. 25kw bottom foot hollow axle locks, parallel axle-slasher
Fh67rf37-y0. 25kw is a parallel axle-slash-slasher for a hollow axle lock
Fhf67rf37-y0. 25kw is a parallel axle-slash-slasher for the b5 axle
Fhz67rf37-y0. 25kw is the parallel axle-slasher for the b14 axle lock plate-slasher

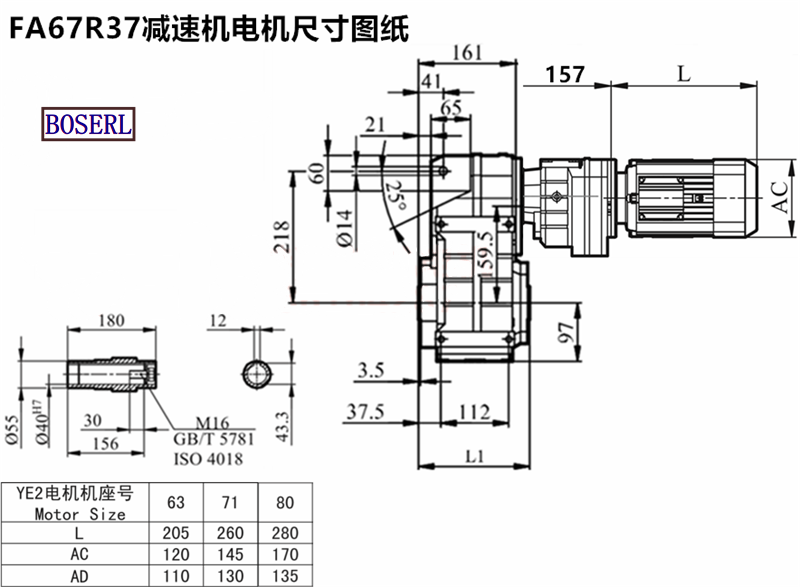

Fa67rf37-y0. 25kw power driveInstall size drawings
Fa67rf37-y0. 25kw power driveThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
