FA67RF37-Y0.37KWDetailed Information
Keyword: 0. 75 kw power with parallel axle brakes_ fa67rf37-y0. 37kw_fa67rf37-y63m4
FA67RF37-Y0.37KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA67RF37-Y0.37KW | 384 | 0.37KW | 3.60r/min | 880N.m | 74kg | 9670N | 0.95 |
| FA67RF37-Y0.37KW | 338 | 0.37KW | 4.10r/min | 785N.m | 74kg | 10600N | 1.05 |
| FA67RF37-Y0.37KW | 305 | 0.37KW | 4.50r/min | 700N.m | 74kg | 11200N | 1.15 |
| FA67RF37-Y0.37KW | 257 | 0.37KW | 5.40r/min | 590N.m | 74kg | 11900N | 1.40 |
| FA67RF37-Y0.37KW | 231 | 0.37KW | 6.00r/min | 520N.m | 74kg | 12300N | 1.55 |
Fa67rf37-y63m4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA67RF37-Y63M4 | 1429 | 0.12KW | 0.97r/min | 960N.m | 69kg | 7070N | 0.85 |
| FA67RF37-Y63M4 | 1271 | 0.12KW | 1.10r/min | 860N.m | 69kg | 9840N | 0.95 |
| FA67RF37-Y63M4 | 1102 | 0.12KW | 1.20r/min | 725N.m | 69kg | 11100N | 1.15 |
| FA67RF37-Y63M4 | 970 | 0.12KW | 1.40r/min | 635N.m | 69kg | 11700N | 1.30 |
| FA67RF37-Y63M4 | 858 | 0.12KW | 1.60r/min | 560N.m | 69kg | 12100N | 1.45 |
| FA67RF37-Y63M4 | 755 | 0.12KW | 1.80r/min | 490N.m | 69kg | 12400N | 1.65 |
| FA67RF37-Y63M4 | 641 | 0.12KW | 2.20r/min | 415N.m | 69kg | 12700N | 1.95 |
| FA67RF37-Y63M4 | 572 | 0.12KW | 2.40r/min | 390N.m | 69kg | 12800N | 2.10 |
| FA67RF37-Y63M4 | 509 | 0.12KW | 2.70r/min | 330N.m | 69kg | 13000N | 2.50 |
| FA67RF37-Y63M4 | 437 | 0.12KW | 3.20r/min | 285N.m | 69kg | 13000N | 2.80 |
Fa67rf37-y0. 37kw motor for reductionType:
F67rf37-y0. 37kw bottom foot installation of parallel axes - tilt gearsGearboc
Fa67brf37-y0. 37kw foot hollow axis installed parallel axle-slasher
Fv67brf37-y0. 37kw bottom feet axis installation of parallel axes - tilt gear deviators
Fa67rf37-y0. 37kw sky axes installation of parallel axes - tilt gear deviators
Fv67rf37-y0. 37kw sky axis installation of parallel axes - tilt gear deviators
Faf67rf37-y0. 37kw is the parallel axle-slash gear-reducing machine for the b5 franium axle
Fvf67rf37-y0. 37kw is a parallel axle-slash gear-reducing machine for the b5 flannel axis
Faz67rf37-y0. 37kw is a parallel axle for b14 flange-slasher
Fvz67rf37-y0. 37kw is a parallel axle-slash gear-reducing machine for b14 flannel cores
Ff67rf37-y0. 37kw is a parallel axle for b5-slash gear reduction
Fh67brf37-y0. 37kw foot hollow axle locks to install parallel axes-slash gear-reving machines
Fh67rf37-y0. 37kw is a parallel axle-slash-slasher for a hollow axle lock
Fhf67rf37-y0. 37kw is a parallel axle for the b5 axle locks - a slasher
Fhz67rf37-y0. 37kw is a parallel axle-slasher installed on the b14 air axe condensation board

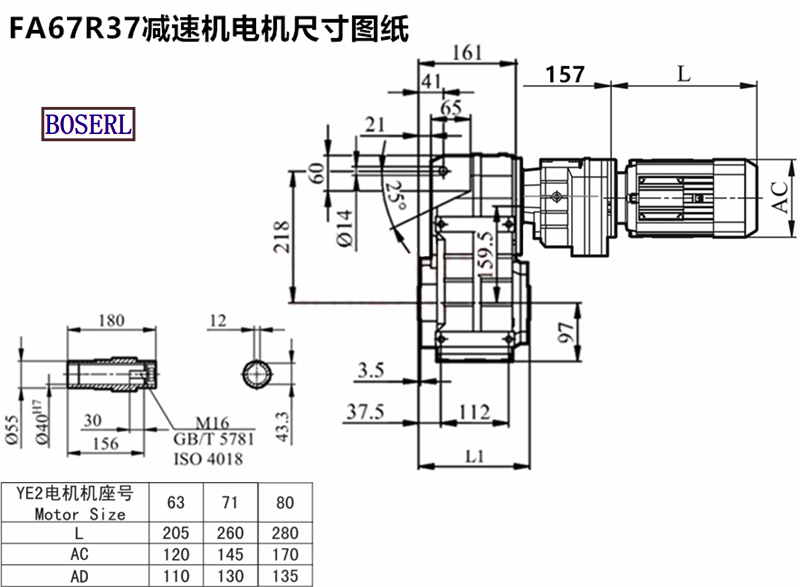

Fa67rf37-y0. 37kw motor for reductionInstall size drawings
Fa67rf37-y0. 37kw motor for reductionThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 0. 75kw power plant with parallel axle brakes fa67rf37-y0. 37kw fa67rf37-y63m4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FA67RF37Y0.37KW减速机样本 |
|
| FA67RF37Y0.37KW减速机三维图纸 |
|
