Fa77 power brakesDetailed Information
Keyword: fa77 deviator_fa77y11kw_fa77y112m4_fa77 deviator electric power plant_fa77 deviator power plant
FA77Y11KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA77Y11KW | 19.70 | 11KW | 75.0rpm | 1400N.m | 205kg | 16300N | 1.05 |
| FA77Y11KW | 17.49 | 11KW | 84.0rpm | 1240N.m | 205kg | 17200N | 1.20 |
| FA77Y11KW | 15.64 | 11KW | 94.0rpm | 1110N.m | 205kg | 17600N | 1.35 |
| FA77Y11KW | 14.06 | 11KW | 105rpm | 1000N.m | 205kg | 17300N | 1.50 |
| FA77Y11KW | 12.20 | 11KW | 121rpm | 860N.m | 205kg | 16900N | 1.75 |
| FA77Y11KW | 10.93 | 11KW | 135rpm | 775N.m | 205kg | 16600N | 1.95 |
| FA77Y11KW | 9.30 | 11KW | 159rpm | 660N.m | 205kg | 15400N | 1.65 |
| FA77Y11KW | 8.26 | 11KW | 179rpm | 585N.m | 205kg | 15100N | 1.85 |
| FA77Y11KW | 7.39 | 11KW | 200rpm | 525N.m | 205kg | 14800N | 2.00 |
| FA77Y11KW | 6.64 | 11KW | 222rpm | 470N.m | 205kg | 14500N | 2.30 |
| FA77Y11KW | 5.74 | 11KW | 256rpm | 410N.m | 205kg | 14100N | 2.60 |
| FA77Y11KW | 5.16 | 11KW | 286rpm | 365N.m | 205kg | 13800N | 2.90 |
| FA77Y11KW | 4.28 | 11KW | 345rpm | 300N.m | 205kg | 13300N | 3.30 |
FA77Y112M4Induction Motor 3Ph machine electrical parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA77Y112M4 | 66.46 | 4KW | 22.0rpm | 1730N.m | 136kg | 13900N | 0.85 |
| FA77Y112M4 | 58.32 | 4KW | 25.0rpm | 1520N.m | 136kg | 15600N | 1.00 |
| FA77Y112M4 | 55.27 | 4KW | 26.0rpm | 1440N.m | 136kg | 16100N | 1.05 |
| FA77Y112M4 | 48.37 | 4KW | 30.0rpm | 1260N.m | 136kg | 17100N | 1.20 |
| FA77Y112M4 | 43.58 | 4KW | 34.0rpm | 1140N.m | 136kg | 17700N | 1.30 |
| FA77Y112M4 | 38.23 | 4KW | 38.0rpm | 1000N.m | 136kg | 18300N | 1.50 |
| FA77Y112M4 | 33.74 | 4KW | 43.0rpm | 880N.m | 136kg | 18700N | 1.70 |
| FA77Y112M4 | 29.91 | 4KW | 49.0rpm | 780N.m | 136kg | 19000N | 1.90 |
| FA77Y112M4 | 25.54 | 4KW | 57.0rpm | 665N.m | 136kg | 19300N | 2.20 |
| FA77Y112M4 | 31.51 | 4KW | 46.0rpm | 820N.m | 136kg | 18900N | 1.65 |
| FA77Y112M4 | 28.75 | 4KW | 51.0rpm | 750N.m | 136kg | 19100N | 1.90 |
| FA77Y112M4 | 25.50 | 4KW | 57.0rpm | 665N.m | 136kg | 19300N | 2.20 |
| FA77Y112M4 | 21.43 | 4KW | 68.0rpm | 560N.m | 136kg | 19600N | 2.70 |
| FA77Y112M4 | 19.70 | 4KW | 74.0rpm | 515N.m | 136kg | 19700N | 2.90 |
Fa77 power brakesType:
F. installation of parallel axes on the bottom foot - slashed gearGearboc
Fa. b bottom foot hollow axis with parallel axle-slash gear reduction
Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors
Fa. installation of parallel axes on the hollow axle-slash gear reduction machines
Fv. installation of parallel axes - tilt gear detachor
Faf
Fvf
Faz
Fvz. Is a parallel axle of the b14 flannel cortex
Ff. it's a parallel axle of b5-slash gears
Fh. B bottom foot hollow axle locks, parallel axle-slasher
Fh
Fhf
Fhz

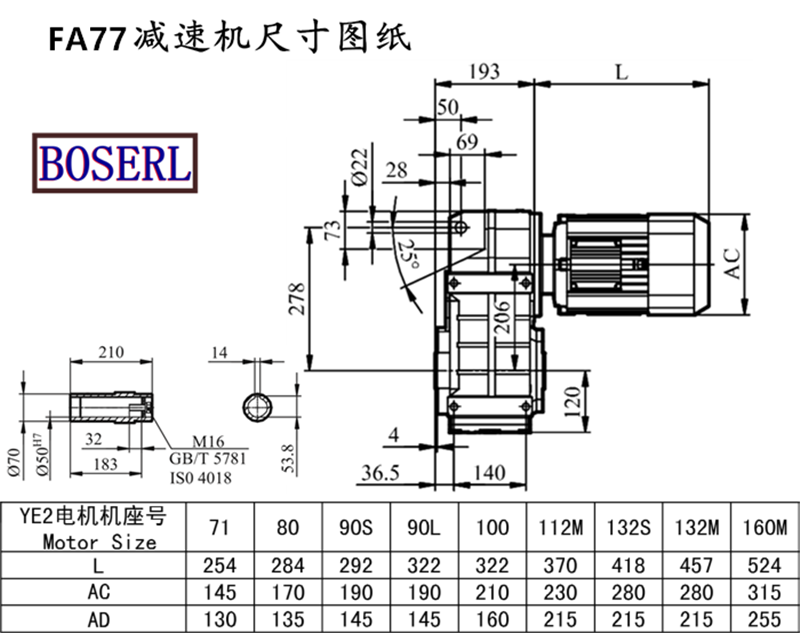

Fa77 power brakesInstall size drawings
Fa77 power brakesThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
