FA77DRE71S4Detailed Information
Keywords: Output transfer _FA77DRE71S4_FA77DVE71S4_355.5rpm _ one-minute deceleration _355.5r gear reduction box motor _355.5r/min/minute decelerator _355.5rpm
FA77DRE71S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA77DRE71S4 | 281.71 | 0.37KW | 4.90rpm | 720N.m | 100.5kg | 19200N | 2.10 |
| FA77DRE71S4 | 262.93 | 0.37KW | 5.20rpm | 670N.m | 100.5kg | 19300N | 2.20 |
| FA77DRE71S4 | 225.79 | 0.37KW | 6.10rpm | 575N.m | 100.5kg | 19500N | 2.60 |
| FA77DRE71S4 | 198.31 | 0.37KW | 7.00rpm | 505N.m | 100.5kg | 19700N | 3.00 |
Fa77dve71s4 deviation machine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA77DVE71S4 | 281.71 | 0.37KW | 4.90rpm | 720N.m | 100.5kg | 19200N | 2.10 |
| FA77DVE71S4 | 262.93 | 0.37KW | 5.20rpm | 670N.m | 100.5kg | 19300N | 2.20 |
| FA77DVE71S4 | 225.79 | 0.37KW | 6.10rpm | 575N.m | 100.5kg | 19500N | 2.60 |
| FA77DVE71S4 | 198.31 | 0.37KW | 7.00rpm | 505N.m | 100.5kg | 19700N | 3.00 |
Fa77dre71s4 gear-reducing motorType:
F. installation of parallel axes on the bottom foot - slashed gearGearboc
Fa. b bottom foot hollow axis with parallel axle-slash gear reduction
Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors
Fa. installation of parallel axes on the hollow axle-slash gear reduction machines
Fv. installation of parallel axes - tilt gear detachor
Faf
Fvf
Faz
Fvz. Is a parallel axle of the b14 flannel cortex
Ff. it's a parallel axle of b5-slash gears
Fh. B bottom foot hollow axle locks, parallel axle-slasher
Fh
Fhf
Fhz

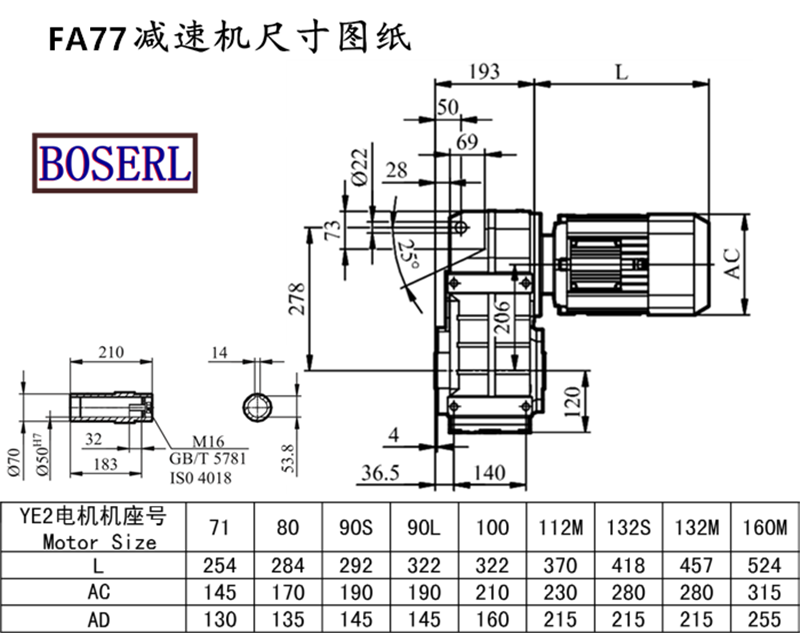

Fa77dre71s4 gear-reducing motorInstall size drawings
Fa77dre71s4 gear-reducing motorThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: Output number 355.5r/min speed-reducing motor FA77DRE71S4FFA77DVE71S4 355.5rpm 355.5rm per minute turn 355.5r/min/minute speed-reducing machine 355.5rpm
- 上一条FA77DRS71S4
- 下一条FA77DV80S4
