What parallel axle gear brakes do 75kw power? fa77r37dm63m4

FA77R37DM63M4Detailed Information

prevnext

FA77R37DM63M4

TEL：Email:[email protected]

详细信息

Keyword: what parallel axle wheel brakes for 75kw power _ fa77r37dm63m4_fa77r37drs71m4

FA77R37DM63M4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
FA77R37DM63M4	2613	0.12KW	0.53r/min	1820N.m	104kg	13000N	0.80
FA77R37DM63M4	2284	0.12KW	0.60r/min	1570N.m	104kg	15200N	0.95
FA77R37DM63M4	2029	0.12KW	0.68r/min	1380N.m	104kg	16400N	1.10
FA77R37DM63M4	1728	0.12KW	0.80r/min	1180N.m	104kg	17500N	1.25
FA77R37DM63M4	1544	0.12KW	0.89r/min	1090N.m	104kg	17900N	1.40
FA77R37DM63M4	1354	0.12KW	1.00r/min	950N.m	104kg	18500N	1.55
FA77R37DM63M4	1200	0.12KW	1.20r/min	840N.m	104kg	18800N	1.75
FA77R37DM63M4	1053	0.12KW	1.30r/min	740N.m	104kg	19100N	2.00
FA77R37DM63M4	910	0.12KW	1.50r/min	630N.m	104kg	19400N	2.40
FA77R37DM63M4	810	0.12KW	1.70r/min	525N.m	104kg	19600N	2.80
FA77R37DM63M4	710	0.12KW	1.90r/min	460N.m	104kg	19800N	3.20

Fa77r37drs71m4 deviation motor parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
FA77R37DRS71M4	810	0.37KW	1.70r/min	1840N.m	109kg	11300N	0.80
FA77R37DRS71M4	710	0.37KW	1.90r/min	1620N.m	109kg	14900N	0.95
FA77R37DRS71M4	615	0.37KW	2.20r/min	1420N.m	109kg	16200N	1.05
FA77R37DRS71M4	538	0.37KW	2.60r/min	1240N.m	109kg	17200N	1.20
FA77R37DRS71M4	480	0.37KW	2.90r/min	1100N.m	109kg	17900N	1.35
FA77R37DRS71M4	413	0.37KW	3.40r/min	940N.m	109kg	18500N	1.60
FA77R37DRS71M4	367	0.37KW	3.80r/min	840N.m	109kg	18900N	1.80
FA77R37DRS71M4	323	0.37KW	4.30r/min	750N.m	109kg	19100N	2.00

Fa77r37dm63m4 reduction motor Type:

F77r37dm63m4 bottom foot installation parallel axes - tilt gearGearboc

Fa77br37dm63m4 foot hollow axis installed parallel axle-slash gear brakes

Fv77br37dm63m4 bottom feet cascular axes installation of parallel axes - tilt gear deviators

Fa77r37dm63m4 sky axes installation of parallel axes - tilted gear deviators

Fv77r37dm63m4 sky axis installation of parallel axes - tilt-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-stell-steal-stell-stell-steall-stell-steal-steall-steal-steve-steal-stell-stell-steward-steward-stell-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-sal-ste-ste-ste-ste-ste-ste-ste-ste-s

Faf77r37dm63m4 is a parallel axle for the b5 aerocentric axle-slasher

Fvf77r37dm63m4 is a parallel axle-slash gear-reducing machine for the b5 flange

Faz77r37dm63m4 is a parallel axle for b14f

Fvz77r37dm63m4 is a parallel axle-slash gear-reducing machine for b14 flannel cores

Ff77r37dm63m4 is a parallel to the b5-slash gear reduction machine

Fh77br37dm63m4 foot hollow axle locks, parallel axle-slasher

Fh77r37dm63m4 is a parallel axle-slash-slasher for the empty axle lock

Fhf77r37dm63m4 is a parallel axle for the b5 axle lock, a slasher

Fhz77r37dm63m4 is the parallel axle of the b14 axle lockboard-slasher-slasher

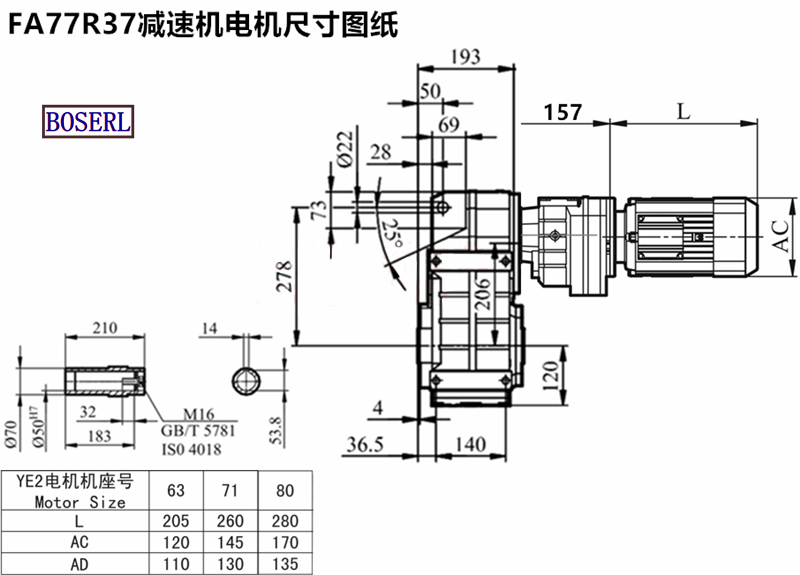

Fa77r37dm63m4 reduction motor Install size drawings

Fa77r37dm63m4 reduction motor The manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine

Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc

FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor

FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW

标签: What's the 75kw power with a parallel axle gear brake? fa77r37dm63m4 fa77r37drs71m4

tags： What's the 75kw power with a parallel axle gear brake? fa77r37dm63m4 fa77r37drs71m4

上一条FA77R37DM80M4
下一条FA77R37DT63M4

Documentation related to this product / Related DownLoad

Product Document Name	Click to download
FA77R37DM63M4减速机样本
FA77R37DM63M4减速机三维图纸
