FA77R37DT63MS4Detailed Information
Keyword: what parallel axle brakes for 45kw power? fa77r37dt63ms4_fa77r37drrs80s4
FA77R37DT63MS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA77R37DT63MS4 | 2613 | 0.12KW | 0.53r/min | 1820N.m | 104kg | 13000N | 0.80 |
| FA77R37DT63MS4 | 2284 | 0.12KW | 0.60r/min | 1570N.m | 104kg | 15200N | 0.95 |
| FA77R37DT63MS4 | 2029 | 0.12KW | 0.68r/min | 1380N.m | 104kg | 16400N | 1.10 |
| FA77R37DT63MS4 | 1728 | 0.12KW | 0.80r/min | 1180N.m | 104kg | 17500N | 1.25 |
| FA77R37DT63MS4 | 1544 | 0.12KW | 0.89r/min | 1090N.m | 104kg | 17900N | 1.40 |
| FA77R37DT63MS4 | 1354 | 0.12KW | 1.00r/min | 950N.m | 104kg | 18500N | 1.55 |
| FA77R37DT63MS4 | 1200 | 0.12KW | 1.20r/min | 840N.m | 104kg | 18800N | 1.75 |
| FA77R37DT63MS4 | 1053 | 0.12KW | 1.30r/min | 740N.m | 104kg | 19100N | 2.00 |
| FA77R37DT63MS4 | 910 | 0.12KW | 1.50r/min | 630N.m | 104kg | 19400N | 2.40 |
| FA77R37DT63MS4 | 810 | 0.12KW | 1.70r/min | 525N.m | 104kg | 19600N | 2.80 |
| FA77R37DT63MS4 | 710 | 0.12KW | 1.90r/min | 460N.m | 104kg | 19800N | 3.20 |
Fa77r37drrs80s4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA77R37DRS80S4 | 480 | 0.55KW | 2.90r/min | 1660N.m | 113.5kg | 14500N | 0.90 |
| FA77R37DRS80S4 | 413 | 0.55KW | 3.40r/min | 1420N.m | 113.5kg | 16200N | 1.05 |
| FA77R37DRS80S4 | 367 | 0.55KW | 3.80r/min | 1270N.m | 113.5kg | 17100N | 1.20 |
| FA77R37DRS80S4 | 323 | 0.55KW | 4.30r/min | 1120N.m | 113.5kg | 17800N | 1.35 |
Fa77r37dt63ms4 deviation motorType:
F77r37dt63ms4 bottom foot installation parallel axes - tilt gearGearboc
Fa77br37dt63ms4 foot hollow axis installed parallel axle-slash gear brakes
Fv77br37dt63ms4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa77r37dt63ms4 sky axes installation of parallel axes - tilt gear deviators
Fv77r37dt63ms4 sky axes installation of parallel axes - tilt-truck-trinkler
Faf77r37dt63ms4 is the parallel axle-slash gear-reducing machine for the b5 aerocentric axis
Fvf77r37dt63ms4 is a parallel axle-slash gear-reducing machine for b5 franoids
Faz77r37dt63ms4 is a parallel axle for b14-slash gear reduction
Fvz77r37dt63ms4 is a parallel axle for b14 flannel axle-slasher
Ff77r37dt63ms4 is a parallel axle-slash gear-reducing machine for b5
Fh77br37dt63ms4 foot hollow axle lock, parallel axle-slasher
Fh77r37dt63ms4 is a parallel axle-slash-slasher for an empty axle lock
Fhf77r37dt63ms4 is a parallel axle-slasher for the b5 axle lock
Fhz77r37dt63ms4 is a parallel axle-slasher for the b14 axle lock

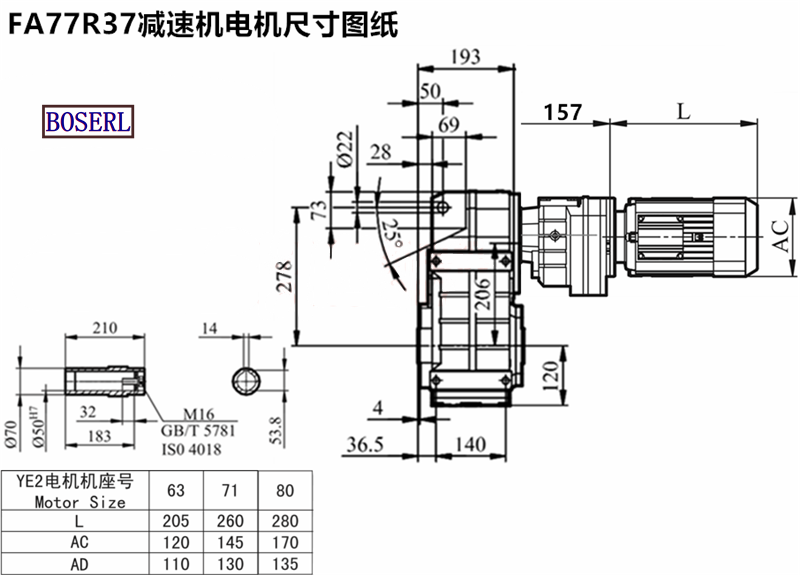

Fa77r37dt63ms4 deviation motorInstall size drawings
Fa77r37dt63ms4 deviation motorThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: What parallel axle brakes does 45kw have
- 上一条FA77R37DT71D4
- 下一条FA77R37DT63L4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FA77R37DT63MS4减速机样本 |
|
| FA77R37DT63MS4减速机三维图纸 |
|
