FA77R37DV80MK4Detailed Information
Keyword: 37kw electric power with a parallel axle gear brake_ fa77r37dv80mk4_fa77r37drrn63l4
FA77R37DV80MK4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA77R37DV80MK4 | 480 | 0.55KW | 2.90r/min | 1660N.m | 113.5kg | 14500N | 0.90 |
| FA77R37DV80MK4 | 413 | 0.55KW | 3.40r/min | 1420N.m | 113.5kg | 16200N | 1.05 |
| FA77R37DV80MK4 | 367 | 0.55KW | 3.80r/min | 1270N.m | 113.5kg | 17100N | 1.20 |
| FA77R37DV80MK4 | 323 | 0.55KW | 4.30r/min | 1120N.m | 113.5kg | 17800N | 1.35 |
Fa77r37drrn63l4 deviation motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA77R37DRN63L4 | 1544 | 0.18KW | 0.86r/min | 1770N.m | 104.5kg | 13500N | 0.85 |
| FA77R37DRN63L4 | 1354 | 0.18KW | 0.98r/min | 1550N.m | 104.5kg | 15300N | 0.95 |
| FA77R37DRN63L4 | 1200 | 0.18KW | 1.10r/min | 1380N.m | 104.5kg | 16500N | 1.10 |
| FA77R37DRN63L4 | 1053 | 0.18KW | 1.20r/min | 1210N.m | 104.5kg | 17400N | 1.25 |
| FA77R37DRN63L4 | 910 | 0.18KW | 1.40r/min | 1030N.m | 104.5kg | 18200N | 1.45 |
| FA77R37DRN63L4 | 810 | 0.18KW | 1.60r/min | 880N.m | 104.5kg | 18700N | 1.70 |
| FA77R37DRN63L4 | 710 | 0.18KW | 1.90r/min | 780N.m | 104.5kg | 19000N | 1.90 |
| FA77R37DRN63L4 | 615 | 0.18KW | 2.20r/min | 690N.m | 104.5kg | 19300N | 2.20 |
Fa77r37dv80mk4 deviation engineType:
F77r37dv80mk4 bottom foot installation parallel axes - tilt gearGearboc
Fa77br37dv80mk4 foot hollow axis installed parallel axle-slash gear brake
Fv77br37dv80mk4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa77r37dv80mk4 sky axes installation of parallel axes - tilt gear deviators
Fv77r37dv80mk4 sky axes installation of parallel axes - tilt-truck deviators
Faf77r37dv80mk4 is the parallel axle of the b5 aerocentric axle-slasher
Fvf77r37dv80mk4 is a parallel axle for b5 flannel axle-slasher
Faz77r37dv80mk4 is a parallel axle for b14frand - a slasher
Fvz77r37dv80mk4 is a parallel axle-slash gear-reducing machine for b14 flannel cores
Ff77r37dv80mk4 is a parallel axle for b5-slash gear reduction
Fh77br37dv80mk4 foot hollow axle locks to install parallel axes-slash gear reduction machines
Fh77r37dv80mk4 is a parallel axle-slash-slasher for an empty axle lock
Fhf77r37dv80mk4 is a parallel axle-slash-slasher for the b5 axle
Fhz77r37dv80mk4 is a parallel axle-slasher for the b14 axle lock

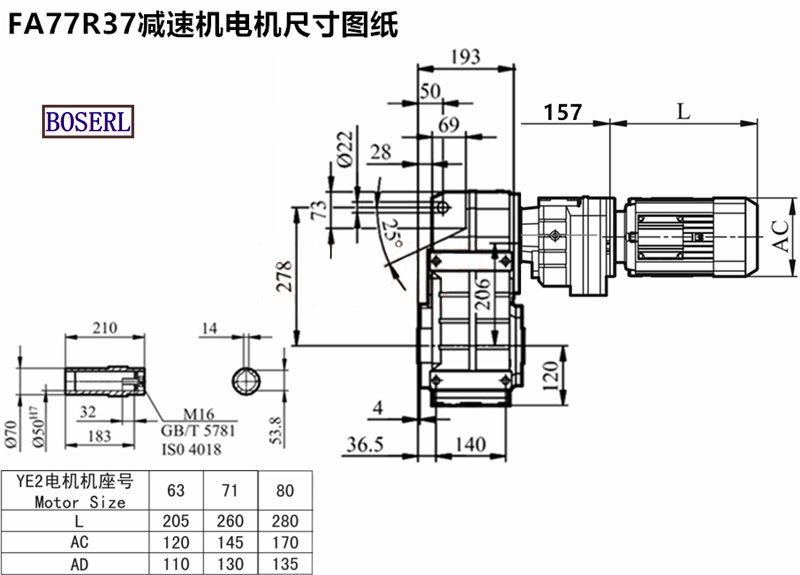

Fa77r37dv80mk4 deviation engineInstall size drawings
Fa77r37dv80mk4 deviation engineThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: What's the 37kw power with a parallel axle gear brake? fa77r37dv80mk4 fa77r37drrn63l4
- 上一条FA77R37DV80K4
- 下一条FA77R37DM71MS4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FA77R37DV80MK4减速机样本 |
|
| FA77R37DV80MK4减速机三维图纸 |
|
