Parallel-Shaft Helical Gear Reducer Motor
网站首页 > BOSERL Gear Reducer > Gearboc > Conveyor motor

FA87DM180S4Detailed Information

FA87DM180S4
prevnext

FA87DM180S4

TEL：Email:[email protected]
  1. 详细信息

Keyword: coal-miningreducing machine _fa87dm180s4_ fa87dt180s4

FA87DM180S4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
FA87DM180S421.3218.5KW69.0rpm2570N.m322kg10900N1.15
FA87DM180S419.3118.5KW76.0rpm2320N.m322kg11100N1.30
FA87DM180S417.1218.5KW86.0rpm2060N.m322kg11400N1.45
FA87DM180S415.4818.5KW95.0rpm1860N.m322kg11500N1.60
FA87DM180S413.1218.5KW112rpm1580N.m322kg11600N1.90
FA87DM180S411.4618.5KW128rpm1380N.m322kg11600N2.20
FA87DM180S49.5818.5KW153rpm1150N.m322kg11500N2.50
FA87DM180S48.2918.5KW177rpm990N.m322kg10900N1.55
FA87DM180S47.3518.5KW199rpm880N.m322kg10800N1.75
FA87DM180S46.6518.5KW220rpm800N.m322kg10700N1.90
FA87DM180S45.6318.5KW260rpm675N.m322kg10400N2.20
FA87DM180S44.9218.5KW298rpm590N.m322kg10200N2.60
FA87DM180S44.1218.5KW356rpm495N.m322kg9900N2.90

Fa87dt180s4reducing motor parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
FA87DT180S421.3218.5KW69.0rpm2570N.m322kg10900N1.15
FA87DT180S419.3118.5KW76.0rpm2320N.m322kg11100N1.30
FA87DT180S417.1218.5KW86.0rpm2060N.m322kg11400N1.45
FA87DT180S415.4818.5KW95.0rpm1860N.m322kg11500N1.60
FA87DT180S413.1218.5KW112rpm1580N.m322kg11600N1.90
FA87DT180S411.4618.5KW128rpm1380N.m322kg11600N2.20
FA87DT180S49.5818.5KW153rpm1150N.m322kg11500N2.50
FA87DT180S48.2918.5KW177rpm990N.m322kg10900N1.55
FA87DT180S47.3518.5KW199rpm880N.m322kg10800N1.75
FA87DT180S46.6518.5KW220rpm800N.m322kg10700N1.90
FA87DT180S45.6318.5KW260rpm675N.m322kg10400N2.20
FA87DT180S44.9218.5KW298rpm590N.m322kg10200N2.60
FA87DT180S44.1218.5KW356rpm495N.m322kg9900N2.90

Fa87dm180s4 motor retardatorType:

F. installation of parallel axes on the bottom foot - slashed gearGearboc

Fa. b bottom foot hollow axis with parallel axle-slash gear reduction

Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors

Fa. installation of parallel axes on the hollow axle-slash gear reduction machines

Fv. installation of parallel axes - tilt gear detachor

Faf

Fvf

Faz

Fvz. Is a parallel axle of the b14 flannel cortex

Ff. it's a parallel axle of b5-slash gears

Fh. B bottom foot hollow axle locks, parallel axle-slasher

Fh

Fhf

Fhz

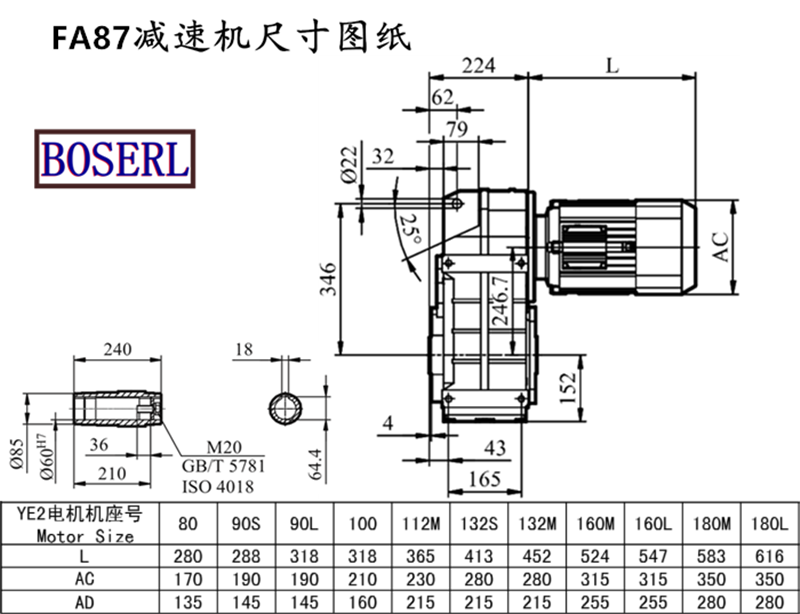

Fa87dm180s4 motor retardatorInstall size drawings



Fa87dm180s4 motor retardatorThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine

Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc

FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor

FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW


标签:  Coal-mining speed-reducing machine fa87dm180s4ffa87dt180s4
tags： Coal-mining speed-reducing machine fa87dm180s4ffa87dt180s4
