FA87DRE180LC4Detailed Information

prevnext

FA87DRE180LC4

TEL：Email:[email protected]

详细信息

Keyword: slide-trackreducing machine _fa87dre180lc4_fa87drn180lc4

FA87DRE180LC4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
FA87DRE180LC4	21.32	22KW	69.0rpm	3030N.m	335kg	9020N	1.00
FA87DRE180LC4	19.31	22KW	76.0rpm	2740N.m	335kg	9450N	1.10
FA87DRE180LC4	17.12	22KW	86.0rpm	2430N.m	335kg	9870N	1.25
FA87DRE180LC4	15.48	22KW	95.0rpm	2200N.m	335kg	10100N	1.35
FA87DRE180LC4	13.12	22KW	112rpm	1860N.m	335kg	10400N	1.60
FA87DRE180LC4	11.46	22KW	129rpm	1630N.m	335kg	10600N	1.85
FA87DRE180LC4	9.58	22KW	154rpm	1360N.m	335kg	10600N	2.10
FA87DRE180LC4	8.29	22KW	178rpm	1180N.m	335kg	10100N	1.30
FA87DRE180LC4	7.35	22KW	201rpm	1040N.m	335kg	10100N	1.45
FA87DRE180LC4	6.65	22KW	222rpm	940N.m	335kg	10000N	1.60
FA87DRE180LC4	5.63	22KW	262rpm	800N.m	335kg	9890N	1.90
FA87DRE180LC4	4.92	22KW	300rpm	700N.m	335kg	9740N	2.20
FA87DRE180LC4	4.12	22KW	358rpm	585N.m	335kg	9490N	2.50

Fa87drn180lc4 deviation machine parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
FA87DRN180LC4	21.32	22KW	69.0rpm	3030N.m	335kg	9020N	1.00
FA87DRN180LC4	19.31	22KW	76.0rpm	2740N.m	335kg	9450N	1.10
FA87DRN180LC4	17.12	22KW	86.0rpm	2430N.m	335kg	9870N	1.25
FA87DRN180LC4	15.48	22KW	95.0rpm	2200N.m	335kg	10100N	1.35
FA87DRN180LC4	13.12	22KW	112rpm	1860N.m	335kg	10400N	1.60
FA87DRN180LC4	11.46	22KW	129rpm	1630N.m	335kg	10600N	1.85
FA87DRN180LC4	9.58	22KW	154rpm	1360N.m	335kg	10600N	2.10
FA87DRN180LC4	8.29	22KW	178rpm	1180N.m	335kg	10100N	1.30
FA87DRN180LC4	7.35	22KW	201rpm	1040N.m	335kg	10100N	1.45
FA87DRN180LC4	6.65	22KW	222rpm	940N.m	335kg	10000N	1.60
FA87DRN180LC4	5.63	22KW	262rpm	800N.m	335kg	9890N	1.90
FA87DRN180LC4	4.92	22KW	300rpm	700N.m	335kg	9740N	2.20
FA87DRN180LC4	4.12	22KW	358rpm	585N.m	335kg	9490N	2.50

Fa87dre180lc4 power brakeType:

F. installation of parallel axes on the bottom foot - slashed gearGearboc

Fa. b bottom foot hollow axis with parallel axle-slash gear reduction

Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors

Fa. installation of parallel axes on the hollow axle-slash gear reduction machines

Fv. installation of parallel axes - tilt gear detachor

Faf

Fvf

Faz

Fvz. Is a parallel axle of the b14 flannel cortex

Ff. it's a parallel axle of b5-slash gears

Fh. B bottom foot hollow axle locks, parallel axle-slasher

Fhf

Fhz

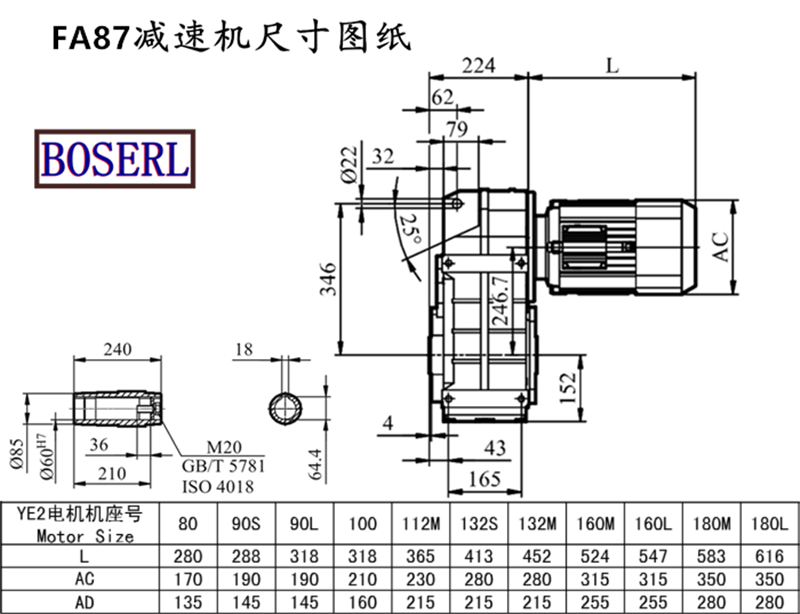

Fa87dre180lc4 power brakeInstall size drawings

Fa87dre180lc4 power brakeThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine

Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc

FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor

FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
