FA87R57DVE71D4Detailed Information
Keyword: 132kw electric power with parallel axle gear brakes_ fa87r57dve71d4_fa87r57dr63ms4
FA87R57DVE71D4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA87R57DVE71D4 | 1300 | 0.37KW | 1.10r/min | 2930N.m | 178.5kg | 22000N | 1.00 |
| FA87R57DVE71D4 | 1148 | 0.37KW | 1.20r/min | 2610N.m | 178.5kg | 24400N | 1.15 |
| FA87R57DVE71D4 | 1010 | 0.37KW | 1.40r/min | 2280N.m | 178.5kg | 25600N | 1.30 |
| FA87R57DVE71D4 | 887 | 0.37KW | 1.60r/min | 2010N.m | 178.5kg | 26400N | 1.50 |
| FA87R57DVE71D4 | 780 | 0.37KW | 1.80r/min | 1760N.m | 178.5kg | 27100N | 1.70 |
| FA87R57DVE71D4 | 674 | 0.37KW | 2.00r/min | 1500N.m | 178.5kg | 27800N | 2.00 |
| FA87R57DVE71D4 | 609 | 0.37KW | 2.30r/min | 1370N.m | 178.5kg | 28100N | 2.20 |
| FA87R57DVE71D4 | 515 | 0.37KW | 2.70r/min | 1150N.m | 178.5kg | 28600N | 2.60 |
| FA87R57DVE71D4 | 452 | 0.37KW | 3.00r/min | 1020N.m | 178.5kg | 28900N | 2.90 |
Fa87r57dr63ms4 deviation electric parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA87R57DR63MS4 | 4245 | 0.12KW | 0.33r/min | 2760N.m | 173.5kg | 23800N | 1.10 |
| FA87R57DR63MS4 | 3721 | 0.12KW | 0.37r/min | 2210N.m | 173.5kg | 25800N | 1.35 |
| FA87R57DR63MS4 | 3244 | 0.12KW | 0.43r/min | 2240N.m | 173.5kg | 25700N | 1.35 |
| FA87R57DR63MS4 | 2881 | 0.12KW | 0.48r/min | 1990N.m | 173.5kg | 26500N | 1.50 |
| FA87R57DR63MS4 | 2576 | 0.12KW | 0.54r/min | 1780N.m | 173.5kg | 27100N | 1.70 |
| FA87R57DR63MS4 | 2199 | 0.12KW | 0.63r/min | 1510N.m | 173.5kg | 27800N | 2.00 |
| FA87R57DR63MS4 | 1930 | 0.12KW | 0.72r/min | 1300N.m | 173.5kg | 28300N | 2.30 |
| FA87R57DR63MS4 | 1709 | 0.12KW | 0.81r/min | 1170N.m | 173.5kg | 28600N | 2.60 |
| FA87R57DR63MS4 | 1493 | 0.12KW | 0.92r/min | 1030N.m | 173.5kg | 28900N | 2.90 |
| FA87R57DR63MS4 | 1300 | 0.12KW | 1.10r/min | 820N.m | 173.5kg | 29300N | 3.70 |
| FA87R57DR63MS4 | 1148 | 0.12KW | 1.20r/min | 745N.m | 173.5kg | 29500N | 4.00 |

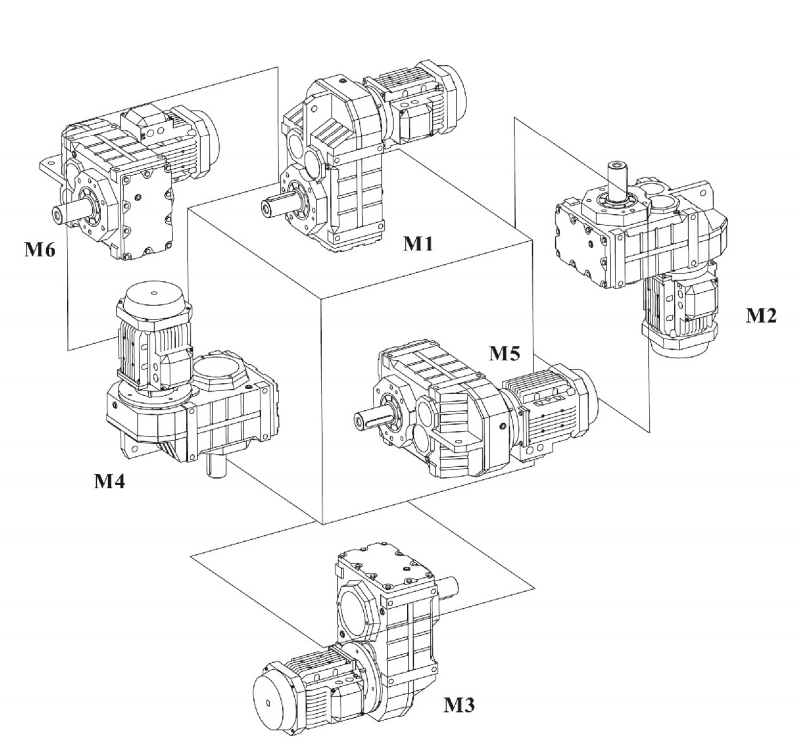

Fa87r57dve71d4 deviation motionType:
F87r57dve71d4 bottom foot installation parallel axes - tilt gearGearboc
Fa87br57dve71d 4 foot hollow axis installed parallel axle-slash gear reduction machine
Fv87br57dve71d4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa87r57dve71d4 sky axis installation parallel axle-slash gear reduction machine
Fv87r57dve71d4 cascade axes installation of parallel axes - tilt-truck-trinkler
Faf87r57dve71d4 is a parallel axle-slash gear-reducing machine for the b5 aerocentric axis
Fvf87r57dve71d4 is a parallel axle-slash gear-reducing machine for the b5 flannel axle
Faz87r57dve71d4 is a parallel to the b14fanan installation of a side axle-slash gearer
Fvz87r57dve71d4 is a parallel axle for the b14 flannel axle-slasher
Ff87r57dve71d4 is a parallel to the b5-slash gear brake
Fh87br57dve71d lockboards for bottom foot hollow axes with parallel axes - slash gearers
Fh87r57dve71d4 is a parallel axle-slash-slasher for the empty axle lock
Fhf87r57dve71d4 is a parallel axle-slasher for b5 axle locks
Fhz87r57dve71d4 is a parallel axle-slasher for b14 aerocentric lockboards
Fa87r57dve71d4 deviation motionInstall size drawings
Fa87r57dve71d4 deviation motionThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 132kw's power plant with a parallel axle gear brake fa87r57dve71d4 fa87r57dr63ms4
