FA97DV200L4Detailed Information

prevnext

FA97DV200L4

TEL：Email:[email protected]

详细信息

Keyword: boiler reduction machine _fa97dv200l4_fa97drn200l4

FA97DV200L4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
FA97DV200L4	22.11	30KW	67.0rpm	4290N.m	513kg	15100N	1.00
FA97DV200L4	20.07	30KW	74.0rpm	3890N.m	513kg	15500N	1.10
FA97DV200L4	17.25	30KW	86.0rpm	3350N.m	513kg	16000N	1.30
FA97DV200L4	15.06	30KW	98.0rpm	2920N.m	513kg	16300N	1.45
FA97DV200L4	12.77	30KW	116rpm	2480N.m	513kg	16400N	1.75
FA97DV200L4	11.16	30KW	132rpm	2160N.m	513kg	16400N	1.90
FA97DV200L4	9.06	30KW	163rpm	1760N.m	513kg	15400N	1.35
FA97DV200L4	8.22	30KW	179rpm	1590N.m	513kg	15300N	1.50
FA97DV200L4	7.07	30KW	209rpm	1370N.m	513kg	15100N	1.70
FA97DV200L4	6.17	30KW	239rpm	1190N.m	513kg	14900N	1.90
FA97DV200L4	5.23	30KW	282rpm	1010N.m	513kg	14600N	2.10
FA97DV200L4	4.57	30KW	322rpm	880N.m	513kg	14300N	2.30

Fa97drn200l4reducing motor parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
FA97DRN200L4	22.11	30KW	67.0rpm	4290N.m	513kg	15100N	1.00
FA97DRN200L4	20.07	30KW	74.0rpm	3890N.m	513kg	15500N	1.10
FA97DRN200L4	17.25	30KW	86.0rpm	3350N.m	513kg	16000N	1.30
FA97DRN200L4	15.06	30KW	98.0rpm	2920N.m	513kg	16300N	1.45
FA97DRN200L4	12.77	30KW	116rpm	2480N.m	513kg	16400N	1.75
FA97DRN200L4	11.16	30KW	132rpm	2160N.m	513kg	16400N	1.90
FA97DRN200L4	9.06	30KW	163rpm	1760N.m	513kg	15400N	1.35
FA97DRN200L4	8.22	30KW	179rpm	1590N.m	513kg	15300N	1.50
FA97DRN200L4	7.07	30KW	209rpm	1370N.m	513kg	15100N	1.70
FA97DRN200L4	6.17	30KW	239rpm	1190N.m	513kg	14900N	1.90
FA97DRN200L4	5.23	30KW	282rpm	1010N.m	513kg	14600N	2.10
FA97DRN200L4	4.57	30KW	322rpm	880N.m	513kg	14300N	2.30

Fa97dv200l4 reduction motor Type:

F. installation of parallel axes on the bottom foot - slashed gearGearboc

Fa. b bottom foot hollow axis with parallel axle-slash gear reduction

Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors

Fa. installation of parallel axes on the hollow axle-slash gear reduction machines

Fv. installation of parallel axes - tilt gear detachor

Faf

Fvf

Faz

Fvz. Is a parallel axle of the b14 flannel cortex

Ff. it's a parallel axle of b5-slash gears

Fh. B bottom foot hollow axle locks, parallel axle-slasher

Fhf

Fhz

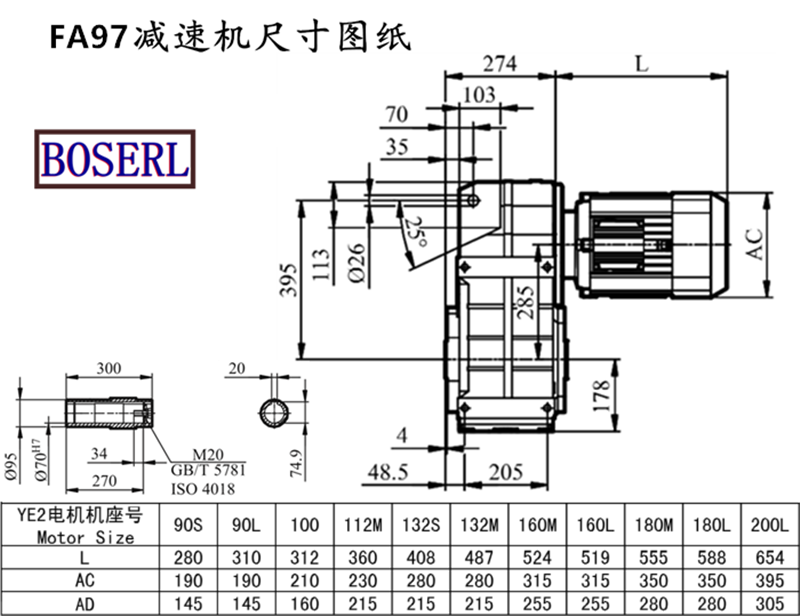

Fa97dv200l4 reduction motor Install size drawings

Fa97dv200l4 reduction motor The manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine

Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc

FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor

FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW

标签: The boiler speed-reducing machine fa97dv200l4fa97drn200l4

tags： The boiler speed-reducing machine fa97dv200l4fa97drn200l4

上一条FA97DM200L4
下一条FA97DM180LC4
