FA97R57DVE90L4Detailed Information
Keywords: 4kw adapts to a parallel axle slasher power _ fa97r57dve90l4_fa97r57dr100ls4
FA97R57DVE90L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA97R57DVE90L4 | 529 | 1.5KW | 2.70r/min | 4880N.m | 301kg | 19300N | 0.90 |
| FA97R57DVE90L4 | 467 | 1.5KW | 3.10r/min | 4320N.m | 301kg | 29800N | 1.00 |
| FA97R57DVE90L4 | 406 | 1.5KW | 3.50r/min | 3730N.m | 301kg | 31500N | 1.15 |
| FA97R57DVE90L4 | 363 | 1.5KW | 3.90r/min | 3340N.m | 301kg | 32500N | 1.30 |
Fa97r57dr100ls4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FA97R57DR100LS4 | 285 | 2.2KW | 5.00r/min | 3900N.m | 310kg | 31000N | 1.10 |
| FA97R57DR100LS4 | 245 | 2.2KW | 5.80r/min | 3350N.m | 310kg | 32500N | 1.30 |
Fa97r57dve90l4 deviation engineType:
F97r57dve90l4 bottom foot installation parallel axes - tilt gearGearboc
Fa97br57dve90l4 foot hollow axis installed parallel axle-slash gear brake
Fv97br57dve90l4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa97r57dve90l4 sky axis installation parallel axis-slash gear reduction machine
Fv97r57dve90l4 sky axis installation of parallel axes - tilt-truck deviators
Faf97r57dve90l4 is the parallel axle-slash gear-reducing machine for the b5 aerocentric axis
Fvf97r57dve90l4 is a parallel axle-slash gear-reducing machine for b5-franco-air
Faz97r57dve90l4 is a parallel axle for b14f
Fvz97r57dve90l4 is a parallel axle for b14 flannel cores - a slasher
Fff97r57dve90l4 is a parallel to the b5-slash gear brake
Fh97br57dve90l4 foot hollow axle locks to install parallel axes-slash gear-reducing machines
Fh97r57dve90l4 is a parallel axle-slash-slasher for an empty axle lock
Fhf97r57dve90l4 is a parallel axle-slasher for b5 axle lock
Fhz97r57dve90l4 is a parallel axle for the b14 axle lock, a slasher

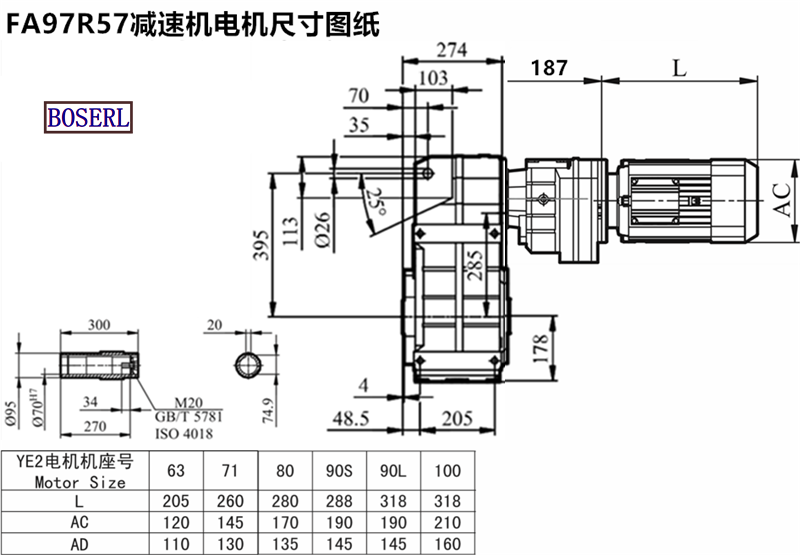

Fa97r57dve90l4 deviation engineInstall size drawings
Fa97r57dve90l4 deviation engineThe manufacturer, please make an appointment three days in advanceThree-phase variant powerreducing machine
Variable frequency motor reducer,Speed regulating motor reducer,Conveyor motor Gearboc
FA27 gearbox, FA37 gearbox, FA47 gearbox, FA67 Gearbox, FA77 Gearbox, FA87 Gearbox, FA97 Gearbox, FA107 Gearbox, FA127 Gearbox, FA157 Gear Reducer Geared motor
FA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 4kw appropriate for a parallel axle tilt gear reduction engine fa97r57dve90l4 fa97r57dr100ls4
- 上一条FA97R57DV90M4
- 下一条FA97R57DR100M4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FA97R57DVE90L4减速机样本 |
|
| FA97R57DVE90L4减速机三维图纸 |
|
