FAF107DV160L4Detailed Information

prevnext

FAF107DV160L4

TEL：Email:[email protected]

详细信息

Keyword: auto-scraper gear-reducing machine_ faf107dv160l4_faf107dv160mc4

FAF107DV160L4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
FAF107DV160L4	92.47	15KW	16.0rpm	9040N.m	537kg	46000N	0.85
FAF107DV160L4	88.49	15KW	17.0rpm	8650N.m	537kg	47100N	0.90
FAF107DV160L4	83.99	15KW	17.0rpm	8210N.m	537kg	48400N	0.95
FAF107DV160L4	74.52	15KW	20.0rpm	7280N.m	537kg	50800N	1.05
FAF107DV160L4	67.62	15KW	22.0rpm	6610N.m	537kg	52600N	1.15
FAF107DV160L4	58.12	15KW	25.0rpm	5680N.m	537kg	52200N	1.35
FAF107DV160L4	50.73	15KW	29.0rpm	4960N.m	537kg	51500N	1.55
FAF107DV160L4	43.03	15KW	34.0rpm	4200N.m	537kg	50300N	1.85
FAF107DV160L4	37.61	15KW	39.0rpm	3670N.m	537kg	49300N	2.10
FAF107DV160L4	31.80	15KW	46.0rpm	3100N.m	537kg	47900N	2.50
FAF107DV160L4	33.79	15KW	43.0rpm	3300N.m	537kg	48400N	2.20
FAF107DV160L4	27.57	15KW	53.0rpm	2690N.m	537kg	46700N	2.90
FAF107DV160L4	25.14	15KW	58.0rpm	2450N.m	537kg	45800N	3.20
FAF107DV160L4	21.76	15KW	67.0rpm	2120N.m	537kg	44500N	3.70

Faf slower machine parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
FAF107DV160MC4	117.94	11KW	13.0rpm	8390N.m	517kg	47900N	0.90
FAF107DV160MC4	101.38	11KW	15.0rpm	7210N.m	517kg	51000N	1.05
FAF107DV160MC4	92.47	11KW	16.0rpm	6580N.m	517kg	52600N	1.15
FAF107DV160MC4	83.99	11KW	18.0rpm	5980N.m	517kg	54100N	1.30
FAF107DV160MC4	74.52	11KW	20.0rpm	5300N.m	517kg	55600N	1.45
FAF107DV160MC4	67.62	11KW	22.0rpm	4810N.m	517kg	56700N	1.60
FAF107DV160MC4	58.12	11KW	25.0rpm	4130N.m	517kg	56200N	1.85
FAF107DV160MC4	50.73	11KW	29.0rpm	3610N.m	517kg	54900N	2.10
FAF107DV160MC4	43.03	11KW	34.0rpm	3060N.m	517kg	53300N	2.50
FAF107DV160MC4	33.79	11KW	44.0rpm	2400N.m	517kg	50700N	3.10
FAF107DV160MC4	27.57	11KW	54.0rpm	1960N.m	517kg	48500N	4.00
FAF107DV160MC4	25.14	11KW	59.0rpm	1790N.m	517kg	47500N	4.40

Faf107dv160l4 motor reduction machineType:

F. installation of parallel axes on the bottom foot - slashed gearGearboc

Fa. b bottom foot hollow axis with parallel axle-slash gear reduction

Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors

Fa. installation of parallel axes on the hollow axle-slash gear reduction machines

Fv. installation of parallel axes - tilt gear detachor

Faf

Fvf

Faz

Fvz. Is a parallel axle of the b14 flannel cortex

Ff. it's a parallel axle of b5-slash gears

Fh. B bottom foot hollow axle locks, parallel axle-slasher

Fhf

Fhz

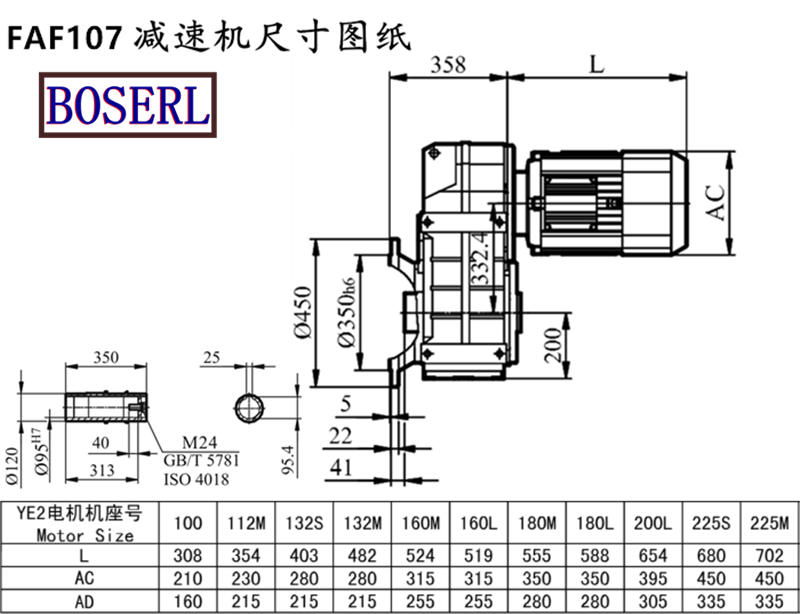

Faf107dv160l4 motor reduction machineInstall size drawings

Faf107dv160l4 motor reduction machineThe manufacturer, please make an appointment three days in advancebrakes motor-reducer

brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc

FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor

FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
