FAF107R77DM90L4Detailed Information
Keywords: 22kw parallel axe deviation engine_faf107r77dm90l4_faf107r77drrs63s4
FAF107R77DM90L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF107R77DM90L4 | 950 | 1.5KW | 1.50r/min | 8720N.m | 461kg | 46900N | 0.90 |
| FAF107R77DM90L4 | 834 | 1.5KW | 1.70r/min | 7630N.m | 461kg | 49900N | 1.00 |
| FAF107R77DM90L4 | 736 | 1.5KW | 1.90r/min | 6710N.m | 461kg | 52300N | 1.15 |
| FAF107R77DM90L4 | 640 | 1.5KW | 2.20r/min | 5890N.m | 461kg | 54300N | 1.30 |
| FAF107R77DM90L4 | 560 | 1.5KW | 2.60r/min | 5090N.m | 461kg | 56100N | 1.50 |
| FAF107R77DM90L4 | 489 | 1.5KW | 2.90r/min | 4440N.m | 461kg | 57500N | 1.75 |
| FAF107R77DM90L4 | 436 | 1.5KW | 3.30r/min | 4010N.m | 461kg | 58400N | 1.90 |
| FAF107R77DM90L4 | 370 | 1.5KW | 3.90r/min | 3400N.m | 461kg | 59600N | 2.30 |
Faf107r77drrs63s4 deviation machine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF107R77DRS63S4 | 14767 | 0.12KW | 0.10r/min | 8850N.m | 443.5kg | 65000N | 0.90 |
| FAF107R77DRS63S4 | 11348 | 0.12KW | 0.11r/min | 7550N.m | 443.5kg | 65000N | 1.05 |
| FAF107R77DRS63S4 | 10039 | 0.12KW | 0.13r/min | 6600N.m | 443.5kg | 65000N | 1.20 |
| FAF107R77DRS63S4 | 8548 | 0.12KW | 0.14r/min | 5890N.m | 443.5kg | 65000N | 1.35 |
| FAF107R77DRS63S4 | 7674 | 0.12KW | 0.17r/min | 5150N.m | 443.5kg | 65000N | 1.55 |
| FAF107R77DRS63S4 | 6767 | 0.12KW | 0.19r/min | 4490N.m | 443.5kg | 65000N | 1.80 |
| FAF107R77DRS63S4 | 5954 | 0.12KW | 0.22r/min | 3700N.m | 443.5kg | 65000N | 2.20 |
| FAF107R77DRS63S4 | 5223 | 0.12KW | 0.24r/min | 3210N.m | 443.5kg | 65000N | 2.50 |
| FAF107R77DRS63S4 | 4567 | 0.12KW | 0.27r/min | 2910N.m | 443.5kg | 65000N | 2.70 |
| FAF107R77DRS63S4 | 3521 | 0.12KW | 0.32r/min | 2670N.m | 443.5kg | 65000N | 3.00 |
Faf107r77dm90l4 deviation engineType:
F107r77dm90l4 bottom foot installation parallel axes - tilt gearGearboc
Fa107br77dm90l4 foot hollow axis installed parallel axle-slash gear brakes
Fv107br77dm90l4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa107r77dm90l4 sky axis installation of parallel axle-slash gear reduction machine
Fv107r77dm90l4 sky axis installation of parallel axes - tilt gear deviators
Faf107r77dm90l4 is a parallel axle-slash gear-reducing machine for the b5 aerocentric axis
Fvf107r77dm90l4 is a parallel axle-sweet gear-reducing machine for the b5 flannel axle
Faz107r77dm90l4 is a parallel axle of b14-slash gear reduction
Fvz107r77dm90l4 is a parallel axle for the b14 flannel axle-slasher
Ff107r77dm90l4 is a parallel axle for b5-slash gear reduction
Fh107br77dm90l4 foot hollow axle locks with parallel axles-slash gear-reducing machines
Fh107r77dm90l4 is a parallel axle-slash-slasher for an empty axle lock
Fhf107r77dm90l4 is the parallel axle of the b5 axle lock, a slasher
Fhz107r77dm90l4 is a parallel axle-slasher for b14 aerocentric locks

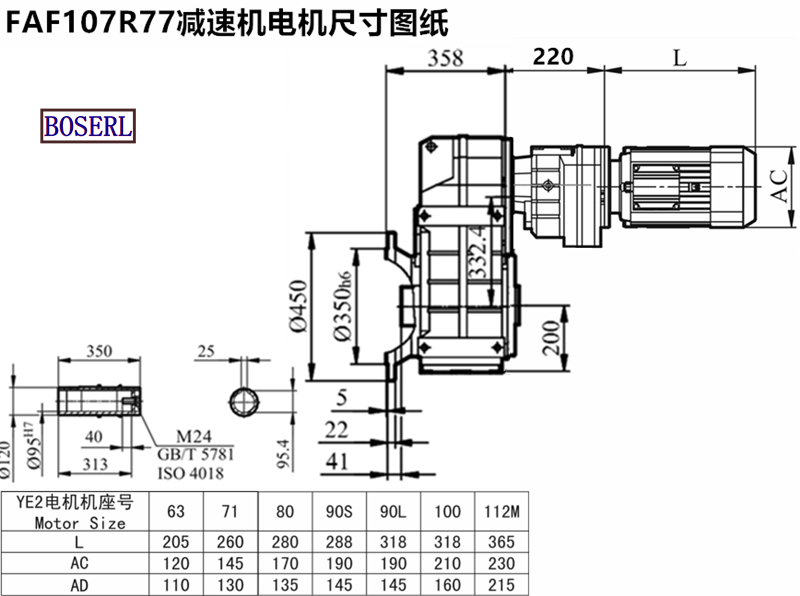

Faf107r77dm90l4 deviation engineInstall size drawings
Faf107r77dm90l4 deviation engineThe manufacturer, please make an appointment three days in advancebrakes motor-reducer
brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc
FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor
FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
