Faf127 motor speed reduction machine

TEL：Email:[email protected]

详细信息

Keyword: faf127 power-drive machine_faf127y37kw_faf127y45kw_faf127 power-drive manufacturer_faf127 power-drive manufacturer_faf127 power-drive manufacturer

FAF127Y37KWGeared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
FAF127Y37KW	55.31	37KW	27.0rpm	13200N.m	1000kg	59200N	0.90
FAF127Y37KW	48.80	37KW	30.0rpm	11600N.m	1000kg	60800N	1.05
FAF127Y37KW	42.15	37KW	35.0rpm	10000N.m	1000kg	61100N	1.20
FAF127Y37KW	37.28	37KW	40.0rpm	8910N.m	1000kg	60700N	1.35
FAF127Y37KW	26.86	37KW	55.0rpm	6420N.m	1000kg	58900N	1.30
FAF127Y37KW	24.57	37KW	60.0rpm	5870N.m	1000kg	58200N	1.45
FAF127Y37KW	31.33	37KW	47.0rpm	7490N.m	1000kg	59900N	1.60
FAF127Y37KW	25.30	37KW	58.0rpm	6050N.m	1000kg	58500N	2.00
FAF127Y37KW	21.38	37KW	69.0rpm	5110N.m	1000kg	57100N	2.40
FAF127Y37KW	18.87	37KW	78.0rpm	4510N.m	1000kg	55900N	2.40
FAF127Y37KW	16.36	37KW	90.0rpm	3910N.m	1000kg	54500N	2.80
FAF127Y37KW	14.55	37KW	102rpm	3480N.m	1000kg	53400N	3.20
FAF127Y37KW	12.54	37KW	118rpm	3000N.m	1000kg	51800N	3.30
FAF127Y37KW	10.19	37KW	145rpm	2430N.m	1000kg	49600N	3.90
FAF127Y37KW	8.86	37KW	167rpm	2110N.m	1000kg	47700N	3.30
FAF127Y37KW	7.88	37KW	187rpm	1880N.m	1000kg	46400N	3.20

Faf127y45kw deviation machine parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
FAF127Y45KW	48.80	45KW	30.0rpm	14100N.m	1035kg	51600N	0.85
FAF127Y45KW	42.15	45KW	35.0rpm	12200N.m	1035kg	54300N	1.00
FAF127Y45KW	37.28	45KW	40.0rpm	10800N.m	1035kg	55800N	1.10
FAF127Y45KW	26.86	45KW	55.0rpm	7810N.m	1035kg	55700N	1.10
FAF127Y45KW	24.57	45KW	60.0rpm	7140N.m	1035kg	55300N	1.20
FAF127Y45KW	31.33	45KW	47.0rpm	9100N.m	1035kg	56100N	1.30
FAF127Y45KW	25.30	45KW	58.0rpm	7350N.m	1035kg	55400N	1.65
FAF127Y45KW	21.38	45KW	69.0rpm	6210N.m	1035kg	54500N	1.95
FAF127Y45KW	18.87	45KW	78.0rpm	5480N.m	1035kg	53600N	2.00
FAF127Y45KW	16.36	45KW	90.0rpm	4750N.m	1035kg	52600N	2.30
FAF127Y45KW	14.55	45KW	102rpm	4230N.m	1035kg	51600N	2.60
FAF127Y45KW	12.54	45KW	118rpm	3640N.m	1035kg	50300N	2.70
FAF127Y45KW	10.19	45KW	145rpm	2960N.m	1035kg	48300N	3.20
FAF127Y45KW	8.86	45KW	167rpm	2570N.m	1035kg	46500N	2.70
FAF127Y45KW	7.88	45KW	187rpm	2290N.m	1035kg	45400N	2.60
FAF127Y45KW	6.80	45KW	218rpm	1970N.m	1035kg	44000N	3.50
FAF127Y45KW	5.52	45KW	268rpm	1600N.m	1035kg	42000N	3.70

Faf127 motor reduction machineType:

F. installation of parallel axes on the bottom foot - slashed gearGearboc

Fa. b bottom foot hollow axis with parallel axle-slash gear reduction

Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors

Fa. installation of parallel axes on the hollow axle-slash gear reduction machines

Fv. installation of parallel axes - tilt gear detachor

Faf

Fvf

Faz

Fvz. Is a parallel axle of the b14 flannel cortex

Ff. it's a parallel axle of b5-slash gears

Fh. B bottom foot hollow axle locks, parallel axle-slasher

Fhf

Fhz

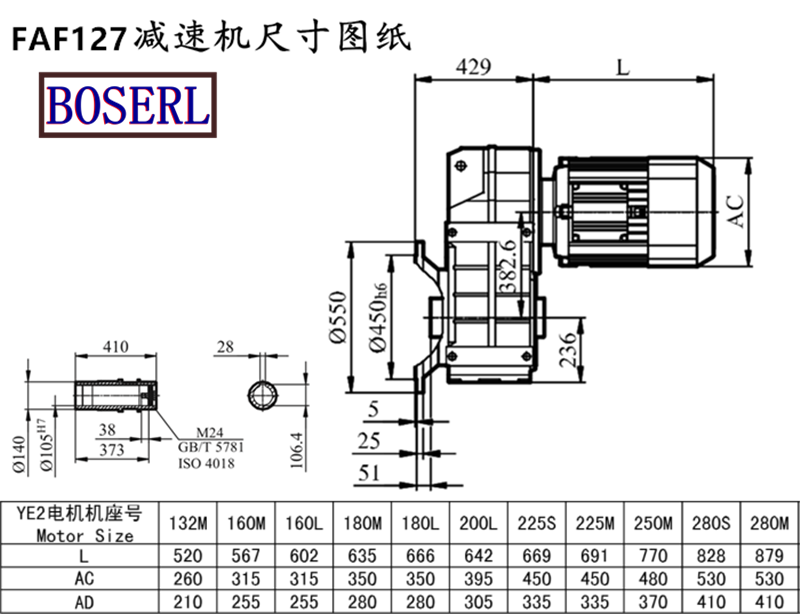

Faf127 motor reduction machineInstall size drawings

Faf127 motor reduction machineThe manufacturer, please make an appointment three days in advancebrakes motor-reducer

brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc

FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor

FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
