Faf127 power-mobilized brakesDetailed Information

Faf127 power-mobilized brakes
prevnext

Faf127 power-mobilized brakes

TEL：Email:[email protected]
  1. 详细信息

Keyword: faf127 emps_faf127y200m4_faf127y225m4_faf127 emps_faf127 emps manufacturer_faf127 emps

FAF127Y200M4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
FAF127Y200M475.4130KW20.0rpm14600N.m953kg64500N0.80
FAF127Y200M470.0730KW21.0rpm13600N.m953kg65700N0.90
FAF127Y200M463.9130KW23.0rpm12400N.m953kg66800N0.95
FAF127Y200M455.3130KW27.0rpm10700N.m953kg66700N1.10
FAF127Y200M448.8030KW30.0rpm9470N.m953kg66300N1.25
FAF127Y200M442.1530KW35.0rpm8180N.m953kg65500N1.45
FAF127Y200M437.2830KW40.0rpm7240N.m953kg64700N1.65
FAF127Y200M426.8630KW55.0rpm5210N.m953kg61800N1.65
FAF127Y200M424.5730KW60.0rpm4770N.m953kg60800N1.80
FAF127Y200M431.3330KW47.0rpm6080N.m953kg63200N1.95
FAF127Y200M425.3030KW58.0rpm4910N.m953kg61100N2.40
FAF127Y200M421.3830KW69.0rpm4150N.m953kg59300N2.90
FAF127Y200M418.8730KW78.0rpm3660N.m953kg57900N3.00

Faf127y225m4 reduction motor parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
FAF127Y225M448.8045KW30.0rpm14100N.m1035kg51600N0.85
FAF127Y225M442.1545KW35.0rpm12200N.m1035kg54300N1.00
FAF127Y225M437.2845KW40.0rpm10800N.m1035kg55800N1.10
FAF127Y225M426.8645KW55.0rpm7810N.m1035kg55700N1.10
FAF127Y225M424.5745KW60.0rpm7140N.m1035kg55300N1.20
FAF127Y225M431.3345KW47.0rpm9100N.m1035kg56100N
1.30
FAF127Y225M425.3045KW58.0rpm7350N.m1035kg55400N1.65
FAF127Y225M421.3845KW69.0rpm6210N.m1035kg54500N1.95
FAF127Y225M418.8745KW78.0rpm5480N.m1035kg53600N2.00
FAF127Y225M416.3645KW90.0rpm4750N.m1035kg52600N2.30
FAF127Y225M414.5545KW102rpm4230N.m1035kg51600N2.60
FAF127Y225M412.5445KW118rpm3640N.m1035kg50300N2.70
FAF127Y225M410.1945KW145rpm2960N.m1035kg48300N3.20
FAF127Y225M48.8645KW167rpm2570N.m1035kg46500N2.70
FAF127Y225M47.8845KW187rpm2290N.m1035kg45400N2.60
FAF127Y225M46.8045KW218rpm1970N.m1035kg44000N3.50
FAF127Y225M45.5245KW268rpm1600N.m1035kg42000N3.70

Faf127 power-mobilized brakesType:

F. installation of parallel axes on the bottom foot - slashed gearGearboc

Fa. b bottom foot hollow axis with parallel axle-slash gear reduction

Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors

Fa. installation of parallel axes on the hollow axle-slash gear reduction machines

Fv. installation of parallel axes - tilt gear detachor

Faf

Fvf

Faz

Fvz. Is a parallel axle of the b14 flannel cortex

Ff. it's a parallel axle of b5-slash gears

Fh. B bottom foot hollow axle locks, parallel axle-slasher

Fh

Fhf

Fhz

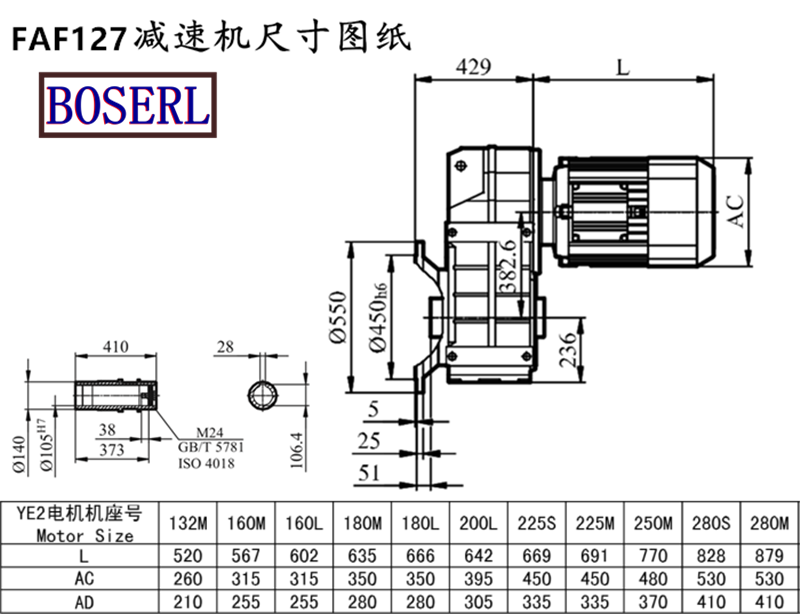

Faf127 power-mobilized brakesInstall size drawings



Faf127 power-mobilized brakesThe manufacturer, please make an appointment three days in advancebrakes motor-reducer

brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc

FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor

FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
