FAF127DRE225M4Detailed Information

FAF127DRE225M4
prevnext

FAF127DRE225M4

TEL：Email:[email protected]
  1. 详细信息

Keyword: agricultural machineryreducing machine _faf127dre225m4_faf127dm225m4

FAF127DRE225M4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
FAF127DRE225M448.8045KW30.0rpm14100N.m1035kg51600N0.85
FAF127DRE225M442.1545KW35.0rpm12200N.m1035kg54300N1.00
FAF127DRE225M437.2845KW40.0rpm10800N.m1035kg55800N1.10
FAF127DRE225M426.8645KW55.0rpm7810N.m1035kg55700N1.10
FAF127DRE225M424.5745KW60.0rpm7140N.m1035kg55300N1.20
FAF127DRE225M431.3345KW47.0rpm9100N.m1035kg56100N
1.30
FAF127DRE225M425.3045KW58.0rpm7350N.m1035kg55400N1.65
FAF127DRE225M421.3845KW69.0rpm6210N.m1035kg54500N1.95
FAF127DRE225M418.8745KW78.0rpm5480N.m1035kg53600N2.00
FAF127DRE225M416.3645KW90.0rpm4750N.m1035kg52600N2.30
FAF127DRE225M414.5545KW102rpm4230N.m1035kg51600N2.60
FAF127DRE225M412.5445KW118rpm3640N.m1035kg50300N2.70
FAF127DRE225M410.1945KW145rpm2960N.m1035kg48300N3.20
FAF127DRE225M48.8645KW167rpm2570N.m1035kg46500N2.70
FAF127DRE225M47.8845KW187rpm2290N.m1035kg45400N2.60
FAF127DRE225M46.8045KW218rpm1970N.m1035kg44000N3.50
FAF127DRE225M45.5245KW268rpm1600N.m1035kg42000N3.70

Faf127dm225m4 deviation machine parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
FAF127DM225M448.8045KW30.0rpm14100N.m1035kg51600N0.85
FAF127DM225M442.1545KW35.0rpm12200N.m1035kg54300N1.00
FAF127DM225M437.2845KW40.0rpm10800N.m1035kg55800N1.10
FAF127DM225M426.8645KW55.0rpm7810N.m1035kg55700N1.10
FAF127DM225M424.5745KW60.0rpm7140N.m1035kg55300N1.20
FAF127DM225M431.3345KW47.0rpm9100N.m1035kg56100N
1.30
FAF127DM225M425.3045KW58.0rpm7350N.m1035kg55400N1.65
FAF127DM225M421.3845KW69.0rpm6210N.m1035kg54500N1.95
FAF127DM225M418.8745KW78.0rpm5480N.m1035kg53600N2.00
FAF127DM225M416.3645KW90.0rpm4750N.m1035kg52600N2.30
FAF127DM225M414.5545KW102rpm4230N.m1035kg51600N2.60
FAF127DM225M412.5445KW118rpm3640N.m1035kg50300N2.70
FAF127DM225M410.1945KW145rpm2960N.m1035kg48300N3.20
FAF127DM225M48.8645KW167rpm2570N.m1035kg46500N2.70
FAF127DM225M47.8845KW187rpm2290N.m1035kg45400N2.60
FAF127DM225M46.8045KW218rpm1970N.m1035kg44000N3.50
FAF127DM225M45.5245KW268rpm1600N.m1035kg42000N3.70

Faf127dre225m4 motor reduction machineType:

F. installation of parallel axes on the bottom foot - slashed gearGearboc

Fa. b bottom foot hollow axis with parallel axle-slash gear reduction

Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors

Fa. installation of parallel axes on the hollow axle-slash gear reduction machines

Fv. installation of parallel axes - tilt gear detachor

Faf

Fvf

Faz

Fvz. Is a parallel axle of the b14 flannel cortex

Ff. it's a parallel axle of b5-slash gears

Fh. B bottom foot hollow axle locks, parallel axle-slasher

Fh

Fhf

Fhz

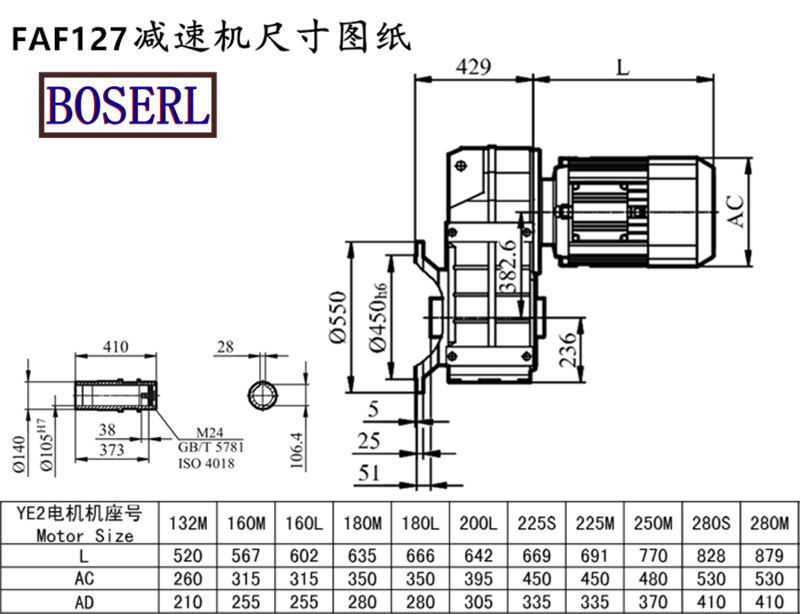

Faf127dre225m4 motor reduction machineInstall size drawings



Faf127dre225m4 motor reduction machineThe manufacturer, please make an appointment three days in advancebrakes motor-reducer

brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc

FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor

FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW



标签:  Agricultural machinery speed-reducing machine faf127dre225m4f127dm225m4
tags： Agricultural machinery speed-reducing machine faf127dre225m4f127dm225m4

Documentation related to this product / Related DownLoad

Product Document Name Click to download
FAF127DRE225M4减速机样本 Click to download
FAF127DRE225M4减速机三维图纸 Click to download
