FAF127R87DV132ML4Detailed Information
Keywords: 3kw parallel axle debumper_faf127r87dv132ml4_faf127r87drrn160l4
FAF127R87DV132ML4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF127R87DV132ML4 | 312 | 7.5KW | 4.70r/min | 14100N.m | 836kg | 86300N | 0.85 |
| FAF127R87DV132ML4 | 293 | 7.5KW | 5.00r/min | 13200N.m | 836kg | 88000N | 0.90 |
| FAF127R87DV132ML4 | 259 | 7.5KW | 5.70r/min | 11700N.m | 836kg | 90000N | 1.05 |
| FAF127R87DV132ML4 | 223 | 7.5KW | 6.60r/min | 10100N.m | 836kg | 90000N | 1.20 |
| FAF127R87DV132ML4 | 198 | 7.5KW | 7.40r/min | 8930N.m | 836kg | 90000N | 1.35 |
Faf127r87drn160l4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF127R87DRN160L4 | 223 | 11KW | 6.60r/min | 14800N.m | 878kg | 84900N | 0.80 |
| FAF127R87DRN160L4 | 198 | 11KW | 7.50r/min | 13100N.m | 878kg | 88300N | 0.90 |
| FAF127R87DRN160L4 | 166 | 11KW | 8.90r/min | 11000N.m | 878kg | 90000N | 1.10 |
Faf127 r87dv132ml4 deviation engineType:
F127r87dv132ml4 bottom foot installation parallel axes - tilt gearGearboc
Fa127 br87dv132ml4 foot hollow axis installed parallel axle-slasher
Fv127br87dv132ml4 bottom feet sky axes installation of parallel axes - tilt-view
Fa127r87dv132ml4 sky axes installation of parallel axes - tilt gear deviators
Fv127r87dv132ml4 sky axis installation of parallel axes - tilt-truck debrillors
Faf127r87dv132ml4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf127r87dv132ml4 is a parallel axle for the b5-franco-axes-slash-slash-slash-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-stell-steal-stell-steed-stell-stell-steall-stell-stell-steall-steall-steall-stell-stell-stell-stell-stell-stell-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-sal-ste-ste-ste-ste-ste-ste-ste-ste-s-s-s-ste-s
Faz127r87dv132ml4 is a parallel axle for b14-slash gear reduction
Fvz127r87dv132ml4 is a parallel axle for b14 flannel axle-slasher
Ff127r87dv132ml4 is a parallel axle for b5-slash gear reduction
Fh127 br87dv132ml4 foot hollow axle locks to install parallel axes-slash gears reduction machines
Fh127r87dv132ml4 is a parallel axle-sweet-pattern reduction machine installed on an empty axle lock
Fhf127r87dv132ml4 is the parallel axle of the b5 axle lock-drive-slasher-slasher
Fhz127r87dv132ml4 is the parallel axle for the b14 axle lock plate-slasher-slasher

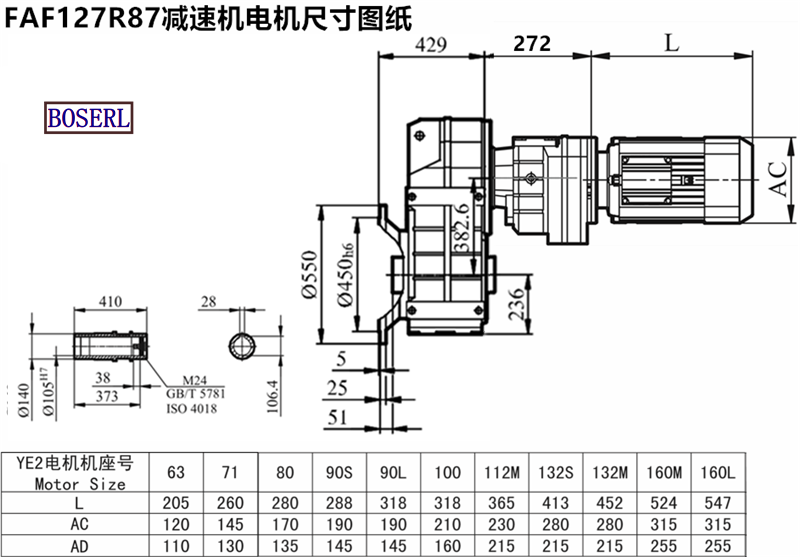

Faf127 r87dv132ml4 deviation engineInstall size drawings
Faf127 r87dv132ml4 deviation engineThe manufacturer, please make an appointment three days in advancebrakes motor-reducer
brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc
FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor
FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 3kw parallel axle decelerator faf127r87dv132ml4ffaf127r87drrn160l4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FAF127R87DV132ML4减速机样本 |
|
| FAF127R87DV132ML4减速机三维图纸 |
|
