FAF127R87DVE132M4Detailed Information
Keywords: 30kw parallel axis debrillator_faf127r87dve132m4_faf127r87dr160m4
FAF127R87DVE132M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF127R87DVE132M4 | 418 | 5.5KW | 3.50r/min | 13900N.m | 823kg | 86600N | 0.85 |
| FAF127R87DVE132M4 | 374 | 5.5KW | 3.90r/min | 12500N.m | 823kg | 89500N | 0.95 |
| FAF127R87DVE132M4 | 312 | 5.5KW | 4.70r/min | 10400N.m | 823kg | 90000N | 1.15 |
| FAF127R87DVE132M4 | 293 | 5.5KW | 5.00r/min | 9770N.m | 823kg | 90000N | 1.25 |
| FAF127R87DVE132M4 | 259 | 5.5KW | 5.60r/min | 8620N.m | 823kg | 90000N | 1.40 |
| FAF127R87DVE132M4 | 223 | 5.5KW | 6.50r/min | 7450N.m | 823kg | 90000N | 1.60 |
Faf127r87dr160m4 reduction motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF127R87DR160M4 | 223 | 11KW | 6.60r/min | 14800N.m | 878kg | 84900N | 0.80 |
| FAF127R87DR160M4 | 198 | 11KW | 7.50r/min | 13100N.m | 878kg | 88300N | 0.90 |
| FAF127R87DR160M4 | 166 | 11KW | 8.90r/min | 11000N.m | 878kg | 90000N | 1.10 |
Faf127 r87dve132m4 deviation motionType:
F127r87dve132m4 bottom foot installation parallel axes - tied gearGearboc
Fa127 br87dve132m4 foot hollow axis installed parallel axle-slash gear brakes
Fv127 br87dve132m4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa127r87dve132m4 sky axes installation of parallel axes - tilt gear deviators
Fv127r87dve132m4 sky axis installation of parallel axes - tilt gear deviators
Faf127r87dve132m4 is a parallel axle-slash gear-reducing machine for the b5 aerocentric axis
Fvf127r87dve132m4 is a parallel axle-slash-pattern reduction machine for the b5-franco-axe
Faz127r87dve132m4 is a parallel axle-slash gear-reducing machine for b14 frank
Fvz127r87dve132m4 is a parallel axle-slash gear-reducing machine for b14 flannel cores
Ff127r87dve132m4 is a parallel to b5-slash gear reduction machine
Fh127 br87dve132m4 foot hollow axle locks to install parallel axes - slash gears to slow down
Fh127r87dve132m4 is a parallel axle-slash-slasher for an empty axle lock
Fhf127r87dve132m4 is a parallel axle for the b5 axle lock-drive-slasher
Fhz127r87dve132m4 is a parallel axle for the b14 axle lock-drive-slasher

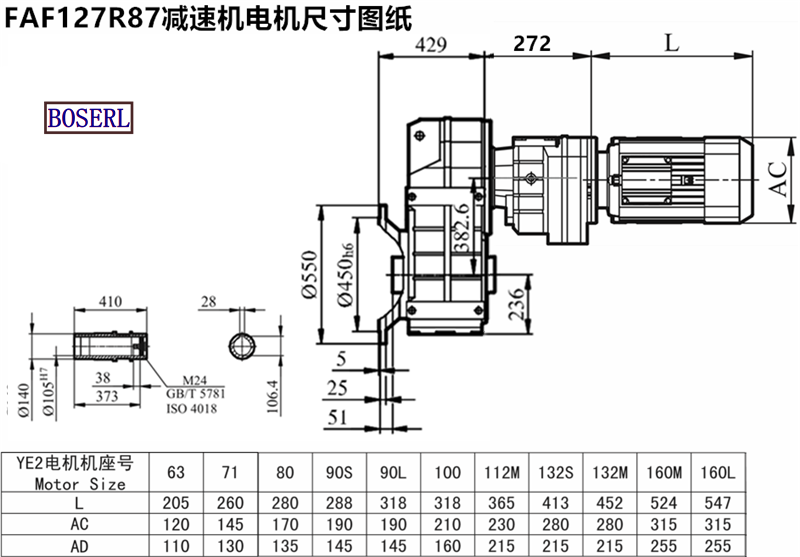

Faf127 r87dve132m4 deviation motionInstall size drawings
Faf127 r87dve132m4 deviation motionThe manufacturer, please make an appointment three days in advancebrakes motor-reducer
brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc
FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor
FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
