FAF127RF87-Y5.5KWDetailed Information
Keywords: 2. 2kw parallel axle reduction box_faf127rf87-y5. 5kw_faf127rf87-y7. 5kw_faf127rf87-y160m4
FAF127RF87-Y5.5KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF127RF87-Y5.5KW | 418 | 5.5KW | 3.50r/min | 13900N.m | 823kg | 86600N | 0.85 |
| FAF127RF87-Y5.5KW | 374 | 5.5KW | 3.90r/min | 12500N.m | 823kg | 89500N | 0.95 |
| FAF127RF87-Y5.5KW | 312 | 5.5KW | 4.70r/min | 10400N.m | 823kg | 90000N | 1.15 |
| FAF127RF87-Y5.5KW | 293 | 5.5KW | 5.00r/min | 9770N.m | 823kg | 90000N | 1.25 |
| FAF127RF87-Y5.5KW | 259 | 5.5KW | 5.60r/min | 8620N.m | 823kg | 90000N | 1.40 |
| FAF127RF87-Y5.5KW | 223 | 5.5KW | 6.50r/min | 7450N.m | 823kg | 90000N | 1.60 |
Faf127rf87-y7. 5kwing machine electric parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF127RF87-Y7.5KW | 312 | 7.5KW | 4.70r/min | 14100N.m | 836kg | 86300N | 0.85 |
| FAF127RF87-Y7.5KW | 293 | 7.5KW | 5.00r/min | 13200N.m | 836kg | 88000N | 0.90 |
| FAF127RF87-Y7.5KW | 259 | 7.5KW | 5.70r/min | 11700N.m | 836kg | 90000N | 1.05 |
| FAF127RF87-Y7.5KW | 223 | 7.5KW | 6.60r/min | 10100N.m | 836kg | 90000N | 1.20 |
| FAF127RF87-Y7.5KW | 198 | 7.5KW | 7.40r/min | 8930N.m | 836kg | 90000N | 1.35 |
Faf127rf87-y160m4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF127RF87-Y160M4 | 223 | 11KW | 6.60r/min | 14800N.m | 878kg | 84900N | 0.80 |
| FAF127RF87-Y160M4 | 198 | 11KW | 7.50r/min | 13100N.m | 878kg | 88300N | 0.90 |
| FAF127RF87-Y160M4 | 166 | 11KW | 8.90r/min | 11000N.m | 878kg | 90000N | 1.10 |
Faf127rf87-y5. 5kw power driveType:
F127rf87-y5. 5kw bottom foot installation of parallel axes - tiltsGearboc
Fa127brf87-y5. 5kw foot hollow axis installed parallel axle-slash gear brakes
Fv127brf87-y5. 5kw bottom foot flow axis installation of parallel axes - tilt gear deviators
Fa127rf87-y5. 5kw sky axes installation of parallel axes - tilt gear deviators
Fv127rf87-y5. 5kw sky axis installation of parallel axes - tilt gear deviators
Faf127rf87-y5. 5kw is the parallel axle-slash gear-reducing machine for the b5 fran core axis
Fvf127rf87-y5. 5kw is a parallel axle-slash gear-reducing machine for the b5 flannel axis
Faz127rf87-y5. 5kw is the parallel axle of b14 installed in the flange - a slasher
Fvz127rf87-y5. 5kw is the parallel axis of the b14 flannel axle-slasher
Ff127rf87-y5. 5kw is a parallel to the b5-slash gear brake
Fh127brf87-y5. 5kw foot hollow axle locks parallel axle-slasher
Fh127rf87-y5. 5kw is a parallel axle-slash-slasher for empty axle locks
Fhf127rf87-y5. 5kw is a parallel axle-sweet gear-reducing machine installed on the b5 axle lockboard
Fhz127rf87-y5. 5kw is a parallel axle-slasher for b14 flannel axle lockboard-slasher

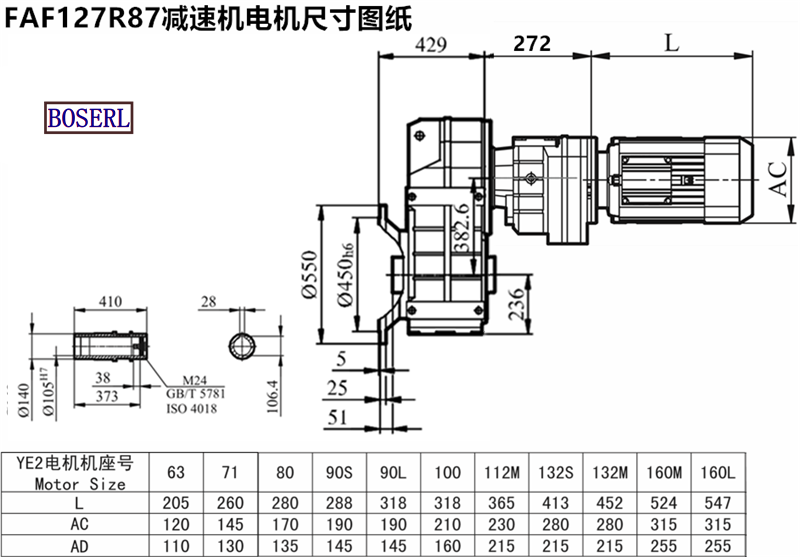

Faf127rf87-y5. 5kw power driveInstall size drawings
Faf127rf87-y5. 5kw power driveThe manufacturer, please make an appointment three days in advancebrakes motor-reducer
brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc
FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor
FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
