Faf157 speed-reducing motorDetailed Information
Keyword: faf157reducing device electric motor_faf157y75kw_faf157y90kw_faf157reducing unit_faf157reducing unit
FAF157Y75KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF157Y75KW | 46.48 | 75KW | 32.0rpm | 22400N.m | 1510kg | 62900N | 0.80 |
| FAF157Y75KW | 40.06 | 75KW | 37.0rpm | 19300N.m | 1510kg | 64400N | 0.95 |
| FAF157Y75KW | 32.55 | 75KW | 45.0rpm | 15700N.m | 1510kg | 65400N | 1.15 |
| FAF157Y75KW | 27.60 | 75KW | 54.0rpm | 13300N.m | 1510kg | 65500N | 1.35 |
| FAF157Y75KW | 28.60 | 75KW | 52.0rpm | 13800N.m | 1510kg | 65500N | 1.25 |
| FAF157Y75KW | 25.43 | 75KW | 58.0rpm | 12300N.m | 1510kg | 65400N | 1.20 |
| FAF157Y75KW | 22.16 | 75KW | 67.0rpm | 10700N.m | 1510kg | 64900N | 1.70 |
| FAF157Y75KW | 19.77 | 75KW | 75.0rpm | 9560N.m | 1510kg | 64300N | 1.80 |
| FAF157Y75KW | 16.85 | 75KW | 88.0rpm | 8150N.m | 1510kg | 63200N | 2.20 |
| FAF157Y75KW | 13.96 | 75KW | 106rpm | 6750N.m | 1510kg | 61600N | 2.50 |
| FAF157Y75KW | 11.92 | 75KW | 124rpm | 5760N.m | 1510kg | 60100N | 2.80 |
Faf157y90kwreducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF157Y90KW | 32.55 | 90KW | 45.0rpm | 18900N.m | 1620kg | 59100N | 0.95 |
| FAF157Y90KW | 27.60 | 90KW | 54.0rpm | 16000N.m | 1620kg | 60200N | 1.10 |
| FAF157Y90KW | 22.16 | 90KW | 67.0rpm | 12800N.m | 1620kg | 60600N | 1.40 |
| FAF157Y90KW | 19.77 | 90KW | 75.0rpm | 11400N.m | 1620kg | 60500N | 1.50 |
| FAF157Y90KW | 16.85 | 90KW | 88.0rpm | 9780N.m | 1620kg | 59900N | 1.85 |
| FAF157Y90KW | 13.96 | 90KW | 106rpm | 8100N.m | 1620kg | 58900N | 2.10 |
| FAF157Y90KW | 11.92 | 90KW | 124rpm | 6920N.m | 1620kg | 57800N | 2.30 |
Faf157reducing motorType:
F. installation of parallel axes on the bottom foot - slashed gearGearboc
Fa. b bottom foot hollow axis with parallel axle-slash gear reduction
Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors
Fa. installation of parallel axes on the hollow axle-slash gear reduction machines
Fv. installation of parallel axes - tilt gear detachor
Faf
Fvf
Faz
Fvz. Is a parallel axle of the b14 flannel cortex
Ff. it's a parallel axle of b5-slash gears
Fh. B bottom foot hollow axle locks, parallel axle-slasher
Fh
Fhf
Fhz

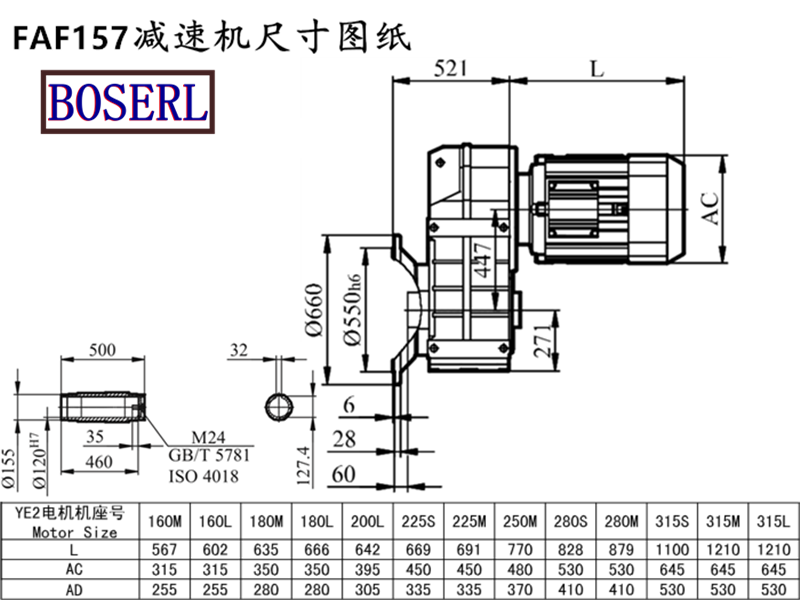

Faf157reducing motorInstall size drawings
Faf157reducing motorThe manufacturer, please make an appointment three days in advancebrakes motor-reducer
brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc
FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor
FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: Faf157 speed-reducing motor faf157y75kw faf157y90kw faf157 speed-retarder faf157 speed-retarder manufacturer faf157 speed-retarder
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FAF157减速器电动机样本 |
|
| FAF157减速器电动机三维图纸 |
|
