FAF157R97DM180LC4Detailed Information
Keyword: 45kw parallel axle slasher _faf157r97dm180lc4_faf157r97drrs160l4
FAF157R97DM180LC4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF157R97DM180LC4 | 202 | 18.5KW | 7.20r/min | 22700N.m | 1,223kg | 70200N | 0.80 |
| FAF157R97DM180LC4 | 197 | 18.5KW | 7.50r/min | 22100N.m | 1,223kg | 83800N | 0.80 |
Faf157r97drrs160l4 deviation motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF157R97DRS160L4 | 232 | 15KW | 6.30r/min | 21100N.m | 1,186kg | 89700N | 0.85 |
| FAF157R97DRS160L4 | 202 | 15KW | 7.20r/min | 18400N.m | 1,186kg | 99000N | 1.00 |
| FAF157R97DRS160L4 | 197 | 15KW | 7.50r/min | 17900N.m | 1,186kg | 100500N | 1.00 |
Faf157r97dm180lc4 deviation engineType:
F157r97dm180lc4 bottom foot installation parallel axes - tilt gearGearboc
Fa157 br97dm180lc4 foot hollow axis installed parallel axle-slash gear brake
Fv157 br97dm180lc4 bottom feet cascular axes installation of parallel axes - tilt gear deviators
Fa157r97dm180lc4 sky axis installation parallel axle-slash gear brakes
Fv157r97dm180lc4 sky axis installation of parallel axes - tilt-trinkler
Faf157r97dm180lc4 is the parallel axle of the b5 aerocentric axle-slasher
Fvf157r97dm180lc4 is the parallel axle of b5 flannel cardiac axle-slasher
Faz157r97dm180lc4 is a parallel to the b14 flange-slash gear reduction machine
Fvz157r97dm180lc4 is a parallel axle-slash gear-reducing machine for b14 flannel cores
Ff157r97dm180lc4 is a parallel to the b5-slash gear reduction machine
Fh157 br97dm180lc4 foot hollow axle locks to install parallel axles-slash-slash-pattern brakes
Fh157r97dm180lc4 is a parallel axle-slash-slasher for an empty axle lock
Fhf157r97dm180lc4 is a parallel axle-slash-slasher for the b5 axle
Fhz157r97dm180lc4 is the parallel axle of the b14 axle lock, which is a slasher

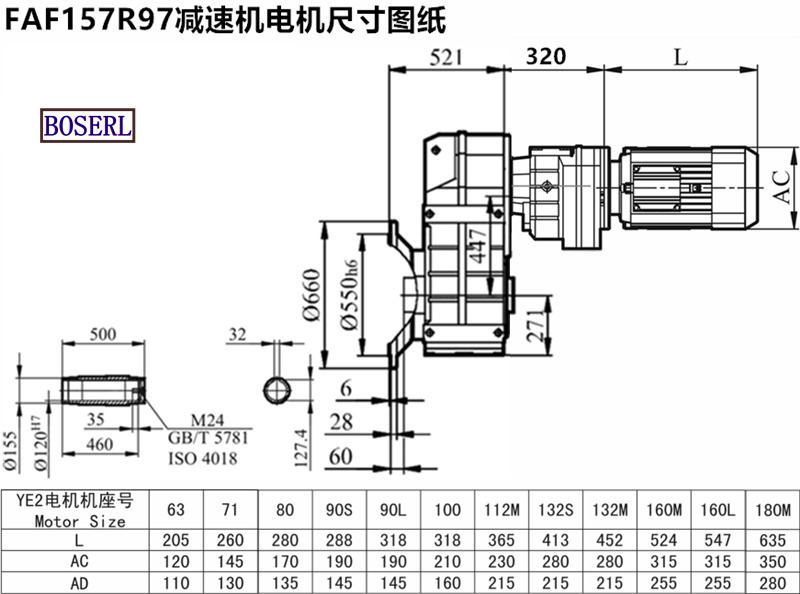

Faf157r97dm180lc4 deviation engineInstall size drawings
Faf157r97dm180lc4 deviation engineThe manufacturer, please make an appointment three days in advancebrakes motor-reducer
brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc
FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor
FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 45kw parallel axle slasher faf157r97dm180lc4 faf157r97drrs160l4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FAF157R97DM180LC4减速机样本 |
|
| FAF157R97DM180LC4减速机三维图纸 |
|
