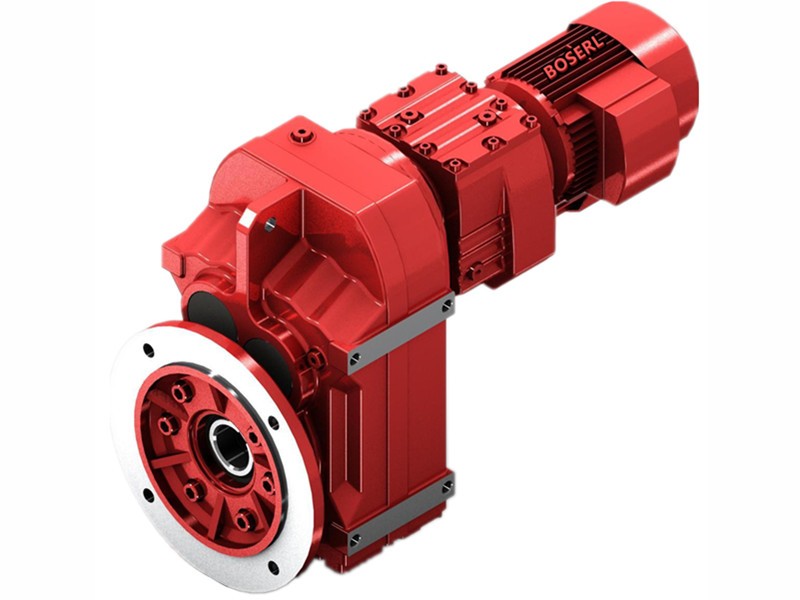

FAF157R97DT100LS4Detailed Information
Keywords: 22kw motors with parallel axle slash gears _ faf157r97dt100ls4_faf157r97dre80mk4
FAF157R97DT100LS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF157R97DT100LS4 | 1441 | 2.2KW | 0.99r/min | 18500N.m | 1,083kg | 98700N | 0.95 |
| FAF157R97DT100LS4 | 1308 | 2.2KW | 1.10r/min | 17600N.m | 1,083kg | 101300N | 1.00 |
| FAF157R97DT100LS4 | 1169 | 2.2KW | 1.20r/min | 15700N.m | 1,083kg | 106400N | 1.15 |
| FAF157R97DT100LS4 | 953 | 2.2KW | 1.50r/min | 12600N.m | 1,083kg | 112900N | 1.40 |
| FAF157R97DT100LS4 | 845 | 2.2KW | 1.70r/min | 11100N.m | 1,083kg | 115500N | 1.60 |
| FAF157R97DT100LS4 | 764 | 2.2KW | 1.90r/min | 10000N.m | 1,083kg | 117200N | 1.80 |
| FAF157R97DT100LS4 | 680 | 2.2KW | 2.10r/min | 8930N.m | 1,083kg | 118700N | 2.00 |
| FAF157R97DT100LS4 | 576 | 2.2KW | 2.50r/min | 7490N.m | 1,083kg | 120000N | 2.40 |
| FAF157R97DT100LS4 | 446 | 2.2KW | 3.20r/min | 5900N.m | 1,083kg | 120000N | 3.00 |
| FAF157R97DT100LS4 | 302 | 2.2KW | 4.70r/min | 3990N.m | 1,083kg | 120000N | 4.50 |
| FAF157R97DT100LS4 | 273 | 2.2KW | 5.20r/min | 3590N.m | 1,083kg | 120000N | 5.00 |
| FAF157R97DT100LS4 | 232 | 2.2KW | 6.20r/min | 3010N.m | 1,083kg | 120000N | 6.00 |
| FAF157R97DT100LS4 | 197 | 2.2KW | 7.30r/min | 2550N.m | 1,083kg | 120000N | 7.00 |
Faf157r97dre80mk4 deviation machine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF157R97DRE80MK4 | 6295 | 0.55KW | 0.22r/min | 20100N.m | 1,066kg | 93100N | 0.90 |
| FAF157R97DRE80MK4 | 5404 | 0.55KW | 0.26r/min | 16800N.m | 1,066kg | 103500N | 1.05 |
| FAF157R97DRE80MK4 | 2780 | 0.55KW | 0.50r/min | 8660N.m | 1,066kg | 119000N | 2.10 |
| FAF157R97DRE80MK4 | 2427 | 0.55KW | 0.57r/min | 7660N.m | 1,066kg | 120000N | 2.40 |
| FAF157R97DRE80MK4 | 1674 | 0.55KW | 0.82r/min | 5440N.m | 1,066kg | 120000N | 3.30 |
| FAF157R97DRE80MK4 | 1308 | 0.55KW | 1.10r/min | 4200N.m | 1,066kg | 120000N | 4.30 |
| FAF157R97DRE80MK4 | 1169 | 0.55KW | 1.20r/min | 3680N.m | 1,066kg | 120000N | 4.90 |
Faf157r97dt100ls4reducing motorType:
F157r97dt100ls 4 bottom foot installation parallel axes - tilt gearGearboc
Fa157 br97dt100ls 4 foot hollow axis installed parallel axle-slash gear reduction machine
Fv157 br97dt100ls4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa157r97dt100ls4 sky axes installation of parallel axes - slash gear deviators
Fv157r97dt100ls4 sky axis installation of parallel axes - tilt-truck deviators
Faf157r97dt100ls4 is a parallel axle-slash gear-reducing machine for the b5 aerocentric axis
Fvf157r97dt100ls4 is a parallel axle-slash gear-reducing machine for the b5 flange core axis
Faz157r97dt100ls4 is a parallel axle for b14fan
Fvz157r97dt100ls4 is a parallel axle-slash gear-reducing machine for the b14 flannel axis
Ff157r97dt100ls4 is a parallel to b5-slash gear reduction
Fh157 br97dt100ls 4 foot hollow axle locks, parallel axle-slasher
Fh157r97dt100ls4 is a parallel axle-slash-slasher for the empty axle lock
Fhf157r97dt100ls4 is the parallel axle of the b5 axle lock, the slasher
Fhz157r97dt100ls4 is a parallel axle for the b14 axle lock, a slasher

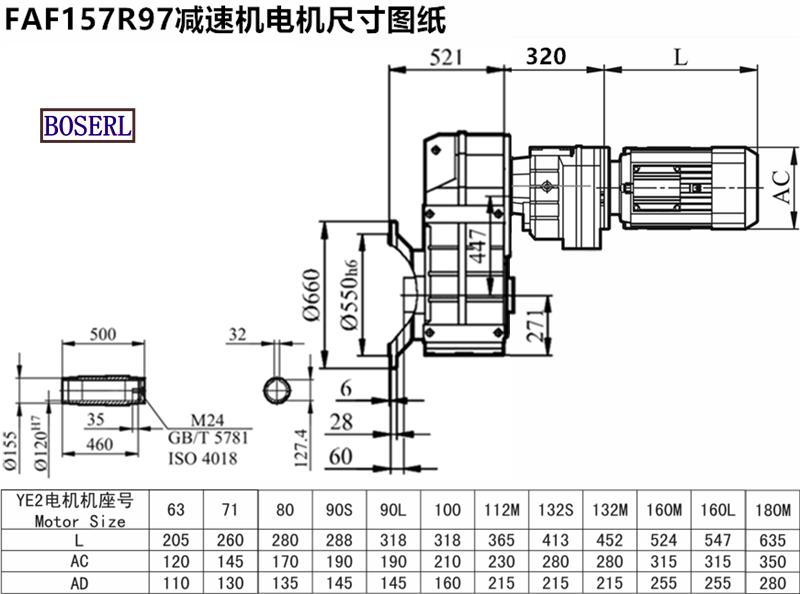

Faf157r97dt100ls4reducing motorInstall size drawings
Faf157r97dt100ls4reducing motorThe manufacturer, please make an appointment three days in advancebrakes motor-reducer
brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc
FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor
FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 22kw power with a parallel axle slash gear reduction engine faf157r97dt100ls4 faf157r97dre80mk4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FAF157R97DT100LS4减速机样本 |
|
| FAF157R97DT100LS4减速机三维图纸 |
|
