FAF157R97DT160MC4Detailed Information
Keywords: 0. 12 kw parallel axe tilt gear deviator_faf157r97dt160mc4_faf157r97dr180s4
FAF157R97DT160MC4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF157R97DT160MC4 | 302 | 11KW | 4.90r/min | 20000N.m | 1,166kg | 93600N | 0.90 |
| FAF157R97DT160MC4 | 273 | 11KW | 5.40r/min | 18100N.m | 1,166kg | 99900N | 1.00 |
| FAF157R97DT160MC4 | 232 | 11KW | 6.40r/min | 15300N.m | 1,166kg | 107400N | 1.15 |
| FAF157R97DT160MC4 | 202 | 11KW | 7.30r/min | 13300N.m | 1,166kg | 111600N | 1.35 |
| FAF157R97DT160MC4 | 197 | 11KW | 7.50r/min | 12900N.m | 1,166kg | 112300N | 1.40 |
Faf157r97dre180s4reducing engine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF157R97DRE180S4 | 202 | 18.5KW | 7.20r/min | 22700N.m | 1,223kg | 70200N | 0.80 |
| FAF157R97DRE180S4 | 197 | 18.5KW | 7.50r/min | 22100N.m | 1,223kg | 83800N | 0.80 |
Faf157r97dt160mc4 deviation engineType:
F157r97dt160mc4 bottom foot installation parallel axes - tilt gearsGearboc
Fa157 br97dt160mc4 foot hollow axis installed parallel axle-slash gear brake
Fv157br97dt160mc4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa157r97dt160mc4 sky axes installation of parallel axes - tilt gear deviators
Fv157r97dt160mc4 sky axes installation of parallel axes - tilted gear deviators
Faf157r97dt160mc4 is the parallel axle-slash gear-reducing machine for the b5 aerocentric axis
Fvf157r97dt160mc4 is a parallel axle-slash gear-reducing machine for the b5 flannel axle
Faz157r97dt160mc4 is a parallel axle for b14-slash gear reduction
Fvz157r97dt160mc4 is a parallel axle-slash gear-reducing machine for b14 flannel cores
Ff157r97dt160mc4 is a parallel axle for b5-slash gear brakes
Fh157 br97dt160mc4 foot hollow axle locks, parallel axle-slash-slasher
Fh157r97dt160mc4 is a parallel axle-slasher for an empty axle lock
Fhf157r97dt160mc4 is a parallel axle for the b5 axle lock, a slasher
Fhz157r97dt160mc4 is the parallel axle of b14 axle lockboard installation - the slasher

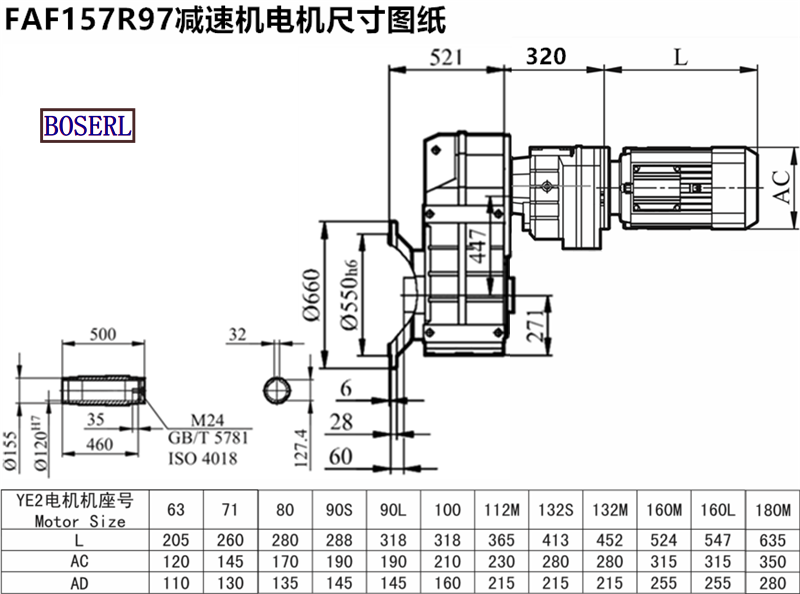

Faf157r97dt160mc4 deviation engineInstall size drawings
Faf157r97dt160mc4 deviation engineThe manufacturer, please make an appointment three days in advancebrakes motor-reducer
brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc
FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor
FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 0. 12kw parallel axle slasher faf157r97dt160mc4 faf157r97dr180s4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FAF157R97DT160MC4减速机样本 |
|
| FAF157R97DT160MC4减速机三维图纸 |
|
