FAF157R97DV132ML4Detailed Information
Keywords: 1. 5 kw parallel axle slasher _faf157r97dv132ml4_faf157r97drrn180l4
FAF157R97DV132ML4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF157R97DV132ML4 | 576 | 5.5KW | 2.50r/min | 19000N.m | 1,111kg | 96900N | 0.95 |
| FAF157R97DV132ML4 | 503 | 5.5KW | 2.90r/min | 16500N.m | 1,111kg | 104200N | 1.10 |
| FAF157R97DV132ML4 | 446 | 5.5KW | 3.30r/min | 14800N.m | 1,111kg | 108400N | 1.20 |
| FAF157R97DV132ML4 | 353 | 5.5KW | 4.10r/min | 11600N.m | 1,111kg | 114800N | 1.55 |
| FAF157R97DV132ML4 | 302 | 5.5KW | 4.80r/min | 10000N.m | 1,111kg | 117200 N | 1.80 |
| FAF157R97DV132ML4 | 273 | 5.5KW | 5.30r/min | 9080N.m | 1,111kg | 118500N | 2.00 |
| FAF157R97DV132ML4 | 232 | 5.5KW | 6.30r/min | 7660N.m | 1,111kg | 120000N | 2.40 |
| FAF157R97DV132ML4 | 202 | 5.5KW | 7.20r/min | 6660N.m | 1,111kg | 120000N | 2.70 |
| FAF157R97DV132ML4 | 197 | 5.5KW | 7.40r/min | 6500N.m | 1,111kg | 120000N | 2.80 |
Faf157r97drn180l4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF157R97DRN180L4 | 202 | 18.5KW | 7.20r/min | 22700N.m | 1,223kg | 70200N | 0.80 |
| FAF157R97DRN180L4 | 197 | 18.5KW | 7.50r/min | 22100N.m | 1,223kg | 83800N | 0.80 |
Faf157r97dv132ml4 deviation engineType:
F157r97dv132ml4 bottom foot installation parallel axes - tilt gearGearboc
Fa157 br97dv132ml4 foot hollow axis installed parallel axle-slash gear reduction machine
Fv157 br97dv132ml4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa157r97dv132ml4 sky axes installation of parallel axes - tilt gear deviators
Fv157r97dv132ml4 sky axis installation of parallel axes - tilt-truck detachors
Faf157r97dv132ml4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf157r97dv132ml4 is the parallel axle of the b5-franco-axes-slash-slash-turn-turn-turp
Faz157r97dv132ml4 is a parallel axle of b14 installed in frank -- a slasher
Fvz157r97dv132ml4 is a parallel axle for b14 flannel axle-slasher
Ff157r97dv132ml4 is a parallel to the b5-slash gear reduction machine
Fh157 br97dv132ml 4 foot hollow axle locks with parallel axes-slash gears reduction machines
Fh157r97dv132ml4 is a parallel axle-slash-slasher for an empty axle lock
Fhf157 r97dv132ml4 is the parallel axle of the b5 axle lock plate-slasher-slasher
Fhz157r97dv132ml4 is the parallel axle of the b14 axle lock-drive-slash-slasher

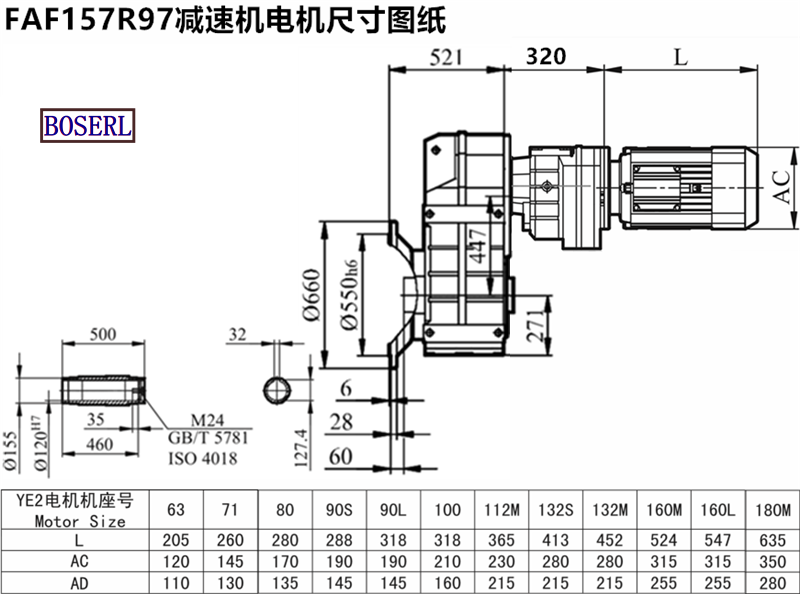

Faf157r97dv132ml4 deviation engineInstall size drawings
Faf157r97dv132ml4 deviation engineThe manufacturer, please make an appointment three days in advancebrakes motor-reducer
brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc
FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor
FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
