FAF157R97DV180LC4Detailed Information
Keyword: 160kw parallel axle slasher _faf157r97dv180lc4_faf157r97drrn160l4
FAF157R97DV180LC4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF157R97DV180LC4 | 202 | 18.5KW | 7.20r/min | 22700N.m | 1,223kg | 70200N | 0.80 |
| FAF157R97DV180LC4 | 197 | 18.5KW | 7.50r/min | 22100N.m | 1,223kg | 83800N | 0.80 |
Faf157r97drn160l4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF157R97DRN160L4 | 232 | 15KW | 6.30r/min | 21100N.m | 1,186kg | 89700N | 0.85 |
| FAF157R97DRN160L4 | 202 | 15KW | 7.20r/min | 18400N.m | 1,186kg | 99000N | 1.00 |
| FAF157R97DRN160L4 | 197 | 15KW | 7.50r/min | 17900N.m | 1,186kg | 100500N | 1.00 |
Faf157r97dv180lc4 deviation motorType:
F157r97dv180lc4 bottom foot installation parallel axes - tilt gearGearboc
Fa157 br97dv180lc4 foot hollow axis installed parallel axle-slash gear brake
Fv157 br97dv180lc4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa157r97dv180lc4 sky axes installation of parallel axes - tilt gear deviators
Fv157r97dv180lc4 sky axis installation of parallel axes - tilt-truck deviators
Faf157r97dv180lc4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf157r97dv180lc4 is the parallel axle of the b5-franco-key sky axis - the slasher
Faz157r97dv180lc4 is a parallel axle for b14 flannels - a slasher
Fvz157r97dv180lc4 is the parallel axis of the b14 flannel axle-slasher
Ff157r97dv180lc4 is a parallel to the b5-slash gear brake
Fh157 br97dv180lc4 foot hollow axle locks to install parallel axes - slash gears to slow down
Fh157r97dv180lc4 is a parallel axle-sweet-pattern reduction machine installed on an empty axle lock
Fhf157r97dv180lc4 is the parallel axle of the b5 axle lock, a slasher
Fhz157r97dv180lc4 is the parallel axle of the b14 axle lock, which is a slasher

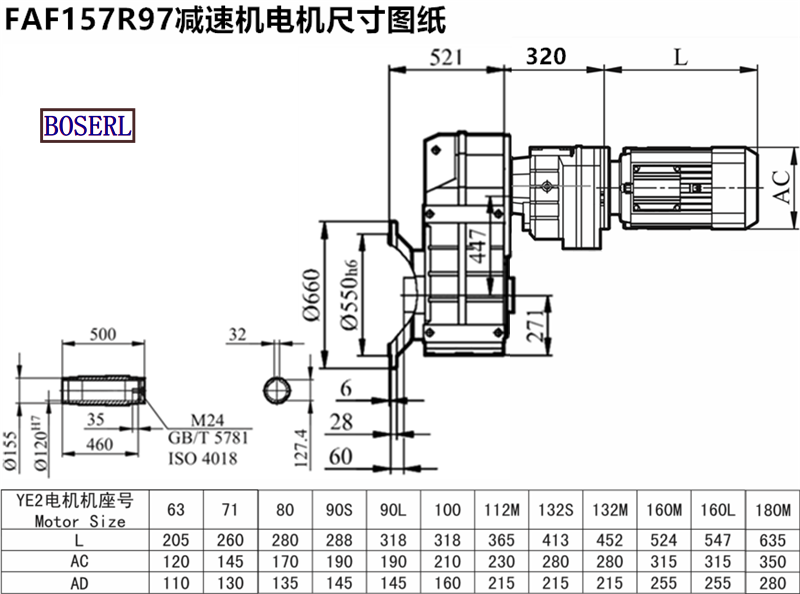

Faf157r97dv180lc4 deviation motorInstall size drawings
Faf157r97dv180lc4 deviation motorThe manufacturer, please make an appointment three days in advancebrakes motor-reducer
brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc
FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor
FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 160kw parallel axle slasher faf157r97dv180lc4 faf157r97drrn160l4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FAF157R97DV180LC4减速机样本 |
|
| FAF157R97DV180LC4减速机三维图纸 |
|
