Parallel-Shaft Helical Gear Reducer Motor
网站首页 > BOSERL Gear Reducer > Gearboc > brakes motor-reducer

Faf27 gear-reducing motorDetailed Information

Faf27 gear-reducing motor
prevnext

Faf27 gear-reducing motor

TEL：Email:[email protected]
  1. 详细信息

Keyword: faf27 gear-reducing motor_faf27y0. 25kw_faf27y0. 37kw_faf27 gear-reducing machine_faf27 gear-reducing machine

FAF27Y0.25KWGeared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
FAF27Y0.25KW77.210.25KW17.0rpm142N.m20Kg4500N0.90
FAF27Y0.25KW72.370.25KW18.0rpm133N.m20Kg4500N1.00
FAF27Y0.25KW63.860.25KW20.0rpm117N.m20Kg4500N1.10
FAF27Y0.25KW56.620.25KW23.0rpm104N.m20Kg4500N1.25
FAF27Y0.25KW50.190.25KW26.0rpm92N.m20Kg4440N1.40
FAF27Y0.25KW46.780.25KW28.0rpm86N.m20Kg4370N1.50
FAF27Y0.25KW40.890.25KW32.0rpm75N.m20Kg4240N1.75
FAF27Y0.25KW38.330.25KW34.0rpm70N.m20Kg4180N1.85
FAF27Y0.25KW33.830.25KW38.0rpm62N.m20Kg4060N2.10
FAF27Y0.25KW29.560.25KW44.0rpm54N.m20Kg3920N2.40
FAF27Y0.25KW27.180.25KW48.0rpm50N.m20Kg3840N2.60
FAF27Y0.25KW23.250.25KW56.0rpm43N.m20Kg3690N3.00
FAF27Y0.25KW20.150.25KW64.0rpm37N.m20Kg3550N3.50
FAF27Y0.25KW18.840.25KW69.0rpm35N.m20Kg3480N3.80
FAF27Y0.25KW16.280.25KW80.0rpm30N.m20Kg3350N4.40
FAF27Y0.25KW13.840.25KW94.0rpm25N.m20Kg3200N5.10
FAF27Y0.25KW12.350.25KW105rpm23N.m20Kg3090N5.70
FAF27Y0.25KW10.550.25KW123rpm19N.m20Kg2950N6.70
FAF27Y0.25KW9.880.25KW132rpm18N.m20Kg2900N7.20
FAF27Y0.25KW9.400.25KW138rpm17N.m20Kg2840N7.50
FAF27Y0.25KW8.130.25KW160rpm15N.m20Kg2720N8.30
FAF27Y0.25KW6.910.25KW188rpm13N.m20Kg2590N9.00
FAF27Y0.25KW6.170.25KW211rpm11N.m20Kg2500N9.60
FAF27Y0.25KW5.270.25KW247rpm9.7N.m20Kg2380N10.0
FAF27Y0.25KW4.930.25KW264rpm9.1N.m20Kg2340N11.0
FAF27Y0.25KW4.160.25KW313rpm7.6N.m20Kg2220N11.0

FAF27Y0.37KWInduction Motor 3Ph machine electrical parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
FAF27Y0.37KW56.620.37KW24.0rpm145N.m20.5Kg4080N0.90
FAF27Y0.37KW50.190.37KW28.0rpm128N.m20.5Kg4010N1.00
FAF27Y0.37KW46.780.37KW30.0rpm120N.m20.5Kg3970N1.10
FAF27Y0.37KW40.890.37KW34.0rpm105N.m20.5Kg3880N1.25
FAF27Y0.37KW38.330.37KW36.0rpm98N.m20.5Kg3840N1.35
FAF27Y0.37KW33.830.37KW41.0rpm87N.m20.5Kg3750N1.50
FAF27Y0.37KW29.560.37KW47.0rpm76N.m20.5Kg3650N1.70
FAF27Y0.37KW27.180.37KW51.0rpm70N.m20.5Kg3580N1.85
FAF27Y0.37KW23.250.37KW59.0rpm60N.m20.5Kg3460N2.20
FAF27Y0.37KW20.150.37KW68.0rpm52N.m20.5Kg3340N2.50
FAF27Y0.37KW18.840.37KW73.0rpm48N.m20.5Kg3290N2.70
FAF27Y0.37KW16.280.37KW85.0rpm42N.m20.5Kg3170N3.10
FAF27Y0.37KW13.840.37KW100rpm35N.m20.5Kg3040N3.70
FAF27Y0.37KW12.350.37KW112rpm32N.m20.5Kg2950N4.10
FAF27Y0.37KW10.550.37KW131rpm27N.m20.5Kg2820N4.80
FAF27Y0.37KW9.880.37KW140rpm25N.m20.5Kg2770N5.10
FAF27Y0.37KW9.400.37KW147rpm24N.m20.5Kg2710N5.40
FAF27Y0.37KW8.130.37KW170rpm21N.m20.5Kg2600N5.90
FAF27Y0.37KW6.910.37KW200rpm18N.m20.5Kg2490N6.40
FAF27Y0.37KW6.170.37KW224rpm16N.m20.5Kg2410N6.90
FAF27Y0.37KW5.270.37KW262rpm14N.m20.5Kg2300N7.40
FAF27Y0.37KW4.930.37KW280rpm13N.m20.5Kg2250N7.60
FAF27Y0.37KW4.160.37KW332rpm11N.m20.5Kg2140N8.20

Faf27 gear-reducing motorType:

F. installation of parallel axes on the bottom foot - slashed gearGearboc

Fa. b bottom foot hollow axis with parallel axle-slash gear reduction

Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors

Fa. installation of parallel axes on the hollow axle-slash gear reduction machines

Fv. installation of parallel axes - tilt gear detachor

Faf

Fvf

Faz

Fvz. Is a parallel axle of the b14 flannel cortex

Ff. it's a parallel axle of b5-slash gears

Fh. B bottom foot hollow axle locks, parallel axle-slasher

Fh

Fhf

Fhz

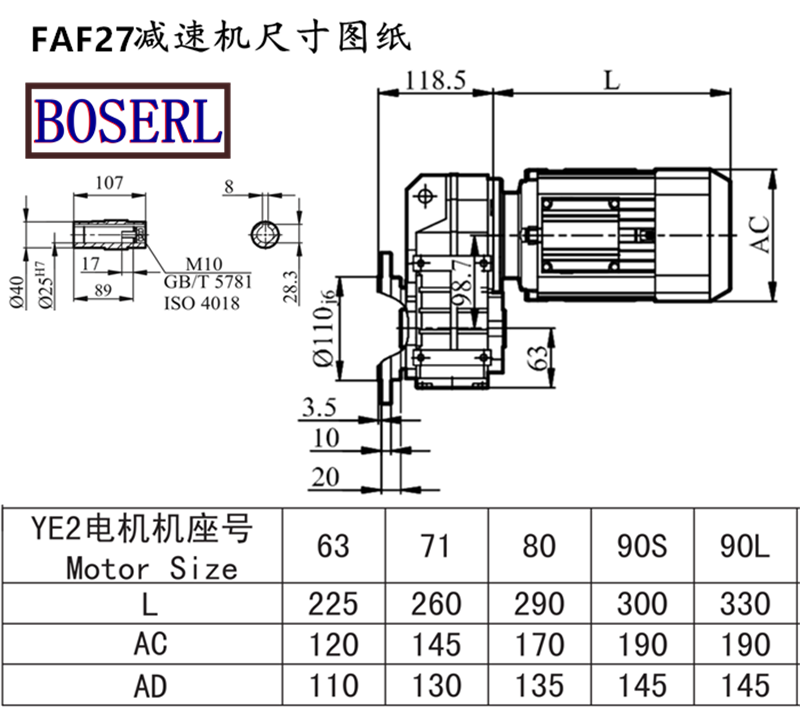

Faf27 gear-reducing motorInstall size drawings



Faf27 gear-reducing motorThe manufacturer, please make an appointment three days in advancebrakes motor-reducer

brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc

FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor

FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW



标签:   faf27 gear-reducing motor  faf27y 0. 25 kw faf27y 0. 37 kw faf27 gear-reducing machine  faf27 gear-reducing machine
tags：    faf27 gear-reducing motor    faf27y 0. 25 kw   faf27y 0. 37 kw   faf27 gear-reducing machine    faf27 gear-reducing machine

Documentation related to this product / Related DownLoad

Product Document Name Click to download
FAF27齿轮减速机马达样本 Click to download
FAF27齿轮减速机马达三维图纸 Click to download
