Faf27 speed reduction motorDetailed Information

Faf27 speed reduction motor
prevnext

Faf27 speed reduction motor

TEL：Email:[email protected]
  1. 详细信息

Keyword: faf27 deviation electric motion_faf27y012kw_faf27y0. 18kw_faf27 deviation plant

FAF27Y0.12KWGeared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
FAF27Y0.12KW140.740.12KW9.80rpm117N.m15.5Kg4500N1.10
FAF27Y0.12KW129.090.12KW11.0rpm107N.m15.5Kg4500N1.20
FAF27Y0.12KW109.900.12KW13.0rpm91N.m15.5Kg4500N1.40
FAF27Y0.12KW94.760.12KW15.0rpm79N.m15.5Kg4500N1.65
FAF27Y0.12KW88.320.12KW16.0rpm73N.m15.5Kg4500N1.75
FAF27Y0.12KW77.210.12KW18.0rpm64N.m15.5Kg4500N2.00
FAF27Y0.12KW72.370.12KW19.0rpm60N.m15.5Kg4500N2.20
FAF27Y0.12KW63.860.12KW22.0rpm53N.m15.5Kg4500N2.40
FAF27Y0.12KW56.620.12KW24.0rpm47N.m15.5Kg4500N2.80
FAF27Y0.12KW50.190.12KW28.0rpm42N.m15.5Kg4500N3.10
FAF27Y0.12KW46.780.12KW30.0rpm39N.m15.5Kg4500N3.40
FAF27Y0.12KW40.890.12KW34.0rpm34N.m15.5Kg4500N3.80
FAF27Y0.12KW38.330.12KW36.0rpm32N.m15.5Kg4430N4.10
FAF27Y0.12KW33.830.12KW41.0rpm28N.m15.5Kg4270N4.60
FAF27Y0.12KW29.560.12KW47.0rpm24N.m15.5Kg4100N5.30
FAF27Y0.12KW27.180.12KW51.0rpm23N.m15.5Kg4000N5.80
FAF27Y0.12KW23.250.12KW59.0rpm19N.m15.5Kg3820N6.70
FAF27Y0.12KW20.150.12KW68.0rpm17N.m15.5Kg3650N7.80
FAF27Y0.12KW18.840.12KW73.0rpm16N.m15.5Kg3580N8.30
FAF27Y0.12KW16.280.12KW85.0rpm14N.m15.5Kg3420N9.60
FAF27Y0.12KW13.840.12KW100rpm12N.m15.5Kg3250N11.0
FAF27Y0.12KW12.350.12KW112rpm10N.m15.5Kg3140N13.0
FAF27Y0.12KW10.550.12KW131rpm8.8N.m15.5Kg2990N15.0
FAF27Y0.12KW9.880.12KW140rpm8.2N.m15.5Kg2920N16.0
FAF27Y0.12KW9.400.12KW147rpm7.8N.m15.5Kg2870N17.0
FAF27Y0.12KW8.130.12KW170rpm6.7N.m15.5Kg2740N18.0
FAF27Y0.12KW6.910.12KW200rpm5.7N.m15.5Kg2600N20.0
FAF27Y0.12KW6.170.12KW224rpm5.1N.m15.5Kg2510N21.0
FAF27Y0.12KW5.270.12KW262rpm4.4N.m15.5Kg2390N23.0
FAF27Y0.12KW4.930.12KW280rpm4.1N.m15.5Kg2340N23.0
FAF27Y0.12KW4.160.12KW332rpm3.5N.m15.5Kg2210N25.0

FAF27Y0.18KWInduction Motor 3Ph machine electrical parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
FAF27Y0.18KW109.900.18KW12.0rpm143N.m16Kg4500N0.90
FAF27Y0.18KW94.760.18KW14.0rpm123N.m16Kg4500N1.05
FAF27Y0.18KW88.320.18KW15.0rpm115N.m16Kg4500N1.15
FAF27Y0.18KW77.210.18KW17.0rpm100N.m16Kg4500N1.30
FAF27Y0.18KW72.370.18KW18.0rpm94N.m16Kg4500N1.40
FAF27Y0.18KW63.860.18KW21.0rpm83N.m16Kg4500N1.55
FAF27Y0.18KW56.620.18KW23.0rpm74N.m16Kg4500N1.75
FAF27Y0.18KW50.190.18KW26.0rpm65N.m16Kg4500N2.00
FAF27Y0.18KW46.780.18KW28.0rpm61N.m16Kg4500N2.10
FAF27Y0.18KW40.890.18KW32.0rpm53N.m16Kg4410N2.40
FAF27Y0.18KW38.330.18KW34.0rpm50N.m16Kg4340N2.60
FAF27Y0.18KW33.830.18KW39.0rpm44N.m16Kg4200N3.00
FAF27Y0.18KW29.560.18KW45.0rpm38N.m16Kg4040N3.40
FAF27Y0.18KW27.180.18KW49.0rpm35N.m16Kg3950N3.70
FAF27Y0.18KW23.250.18KW57.0rpm30N.m16Kg3780N4.30
FAF27Y0.18KW20.150.18KW65.0rpm26N.m16Kg3630N5.00
FAF27Y0.18KW18.840.18KW70.0rpm24N.m16Kg3560N5.30
FAF27Y0.18KW16.280.18KW81.0rpm21N.m16Kg3410N6.10
FAF27Y0.18KW13.840.18KW95.0rpm18N.m16Kg3240N7.20
FAF27Y0.18KW12.350.18KW107rpm16N.m16Kg3140N8.10
FAF27Y0.18KW10.550.18KW125rpm14N.m16Kg2990N9.50
FAF27Y0.18KW9.880.18KW134rpm13N.m16Kg2930N10.0
FAF27Y0.18KW9.400.18KW140rpm12N.m16Kg2870N11.0
FAF27Y0.18KW8.130.18KW162rpm11N.m16Kg2750N12.0
FAF27Y0.18KW6.910.18KW191rpm9N.m16Kg2610N13.0
FAF27Y0.18KW6.170.18KW214rpm8N.m16Kg2520N14.0
FAF27Y0.18KW5.270.18KW251rpm6.9N.m16Kg2400N14.0
FAF27Y0.18KW4.930.18KW268rpm6.4N.m16Kg2350N15.0
FAF27Y0.18KW4.160.18KW318rpm5.4N.m16Kg2230N16.0

Faf27 reduction motor Type:

F. installation of parallel axes on the bottom foot - slashed gearGearboc

Fa. b bottom foot hollow axis with parallel axle-slash gear reduction

Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors

Fa. installation of parallel axes on the hollow axle-slash gear reduction machines

Fv. installation of parallel axes - tilt gear detachor

Faf

Fvf

Faz

Fvz. Is a parallel axle of the b14 flannel cortex

Ff. it's a parallel axle of b5-slash gears

Fh. B bottom foot hollow axle locks, parallel axle-slasher

Fh

Fhf

Fhz

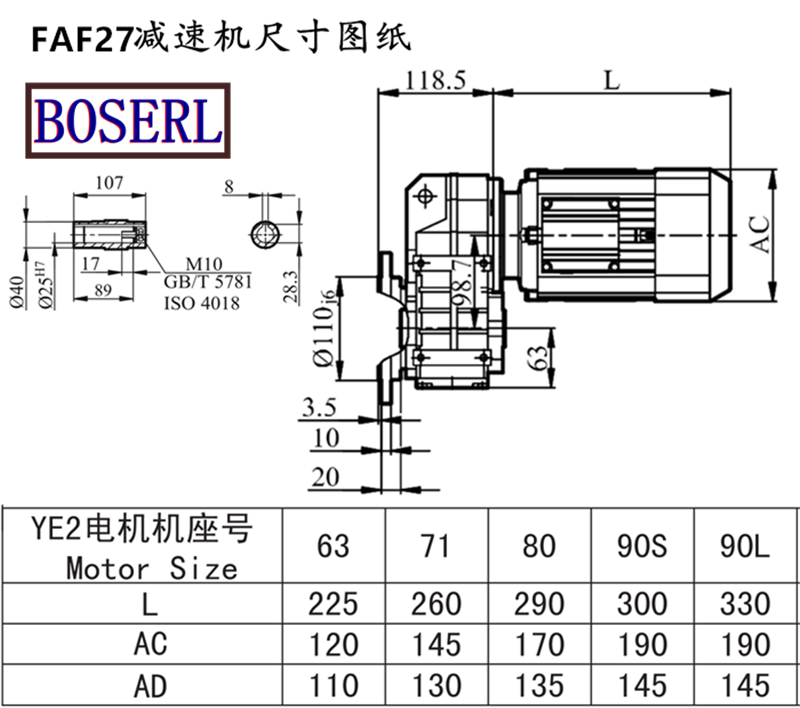

Faf27 reduction motor Install size drawings



Faf27 reduction motor The manufacturer, please make an appointment three days in advancebrakes motor-reducer

brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc

FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor

FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
