FAF47DVE100M4Detailed Information
Keywords: 37kw motor reduction set _faf47dve100m4_faf47drn100m4
FAF47DVE100M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF47DVE100M4 | 25.72 | 2.2KW | 55.0rpm | 375N.m | 50Kg | 5560N | 1.05 |
| FAF47DVE100M4 | 21.82 | 2.2KW | 65.0rpm | 320N.m | 50Kg | 5520N | 1.25 |
| FAF47DVE100M4 | 19.70 | 2.2KW | 72.0rpm | 290N.m | 50Kg | 5470N | 1.40 |
| FAF47DVE100M4 | 17.33 | 2.2KW | 82.0rpm | 255N.m | 50Kg | 5400N | 1.55 |
| FAF47DVE100M4 | 16.36 | 2.2KW | 87.0rpm | 240N.m | 50Kg | 5360N | 1.65 |
| FAF47DVE100M4 | 13.93 | 2.2KW | 102rpm | 205N.m | 50Kg | 5240N | 1.95 |
| FAF47DVE100M4 | 12.66 | 2.2KW | 113rpm | 187N.m | 50Kg | 5160N | 2.10 |
| FAF47DVE100M4 | 10.97 | 2.2KW | 130rpm | 162N.m | 50Kg | 5030N | 2.50 |
| FAF47DVE100M4 | 8.96 | 2.2KW | 159rpm | 132N.m | 50Kg | 4730N | 2.50 |
Faf47drn100m4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF47DRN100M4 | 25.72 | 2.2KW | 55.0rpm | 375N.m | 50Kg | 5560N | 1.05 |
| FAF47DRN100M4 | 21.82 | 2.2KW | 65.0rpm | 320N.m | 50Kg | 5520N | 1.25 |
| FAF47DRN100M4 | 19.70 | 2.2KW | 72.0rpm | 290N.m | 50Kg | 5470N | 1.40 |
| FAF47DRN100M4 | 17.33 | 2.2KW | 82.0rpm | 255N.m | 50Kg | 5400N | 1.55 |
| FAF47DRN100M4 | 16.36 | 2.2KW | 87.0rpm | 240N.m | 50Kg | 5360N | 1.65 |
| FAF47DRN100M4 | 13.93 | 2.2KW | 102rpm | 205N.m | 50Kg | 5240N | 1.95 |
| FAF47DRN100M4 | 12.66 | 2.2KW | 113rpm | 187N.m | 50Kg | 5160N | 2.10 |
| FAF47DRN100M4 | 10.97 | 2.2KW | 130rpm | 162N.m | 50Kg | 5030N | 2.50 |
| FAF47DRN100M4 | 8.96 | 2.2KW | 159rpm | 132N.m | 50Kg | 4730N | 2.50 |
Faf47dve100m4reducing motorType:
F. installation of parallel axes on the bottom foot - slashed gearGearboc
Fa. b bottom foot hollow axis with parallel axle-slash gear reduction
Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors
Fa. installation of parallel axes on the hollow axle-slash gear reduction machines
Fv. installation of parallel axes - tilt gear detachor
Faf
Fvf
Faz
Fvz. Is a parallel axle of the b14 flannel cortex
Ff. it's a parallel axle of b5-slash gears
Fh. B bottom foot hollow axle locks, parallel axle-slasher
Fh
Fhf
Fhz

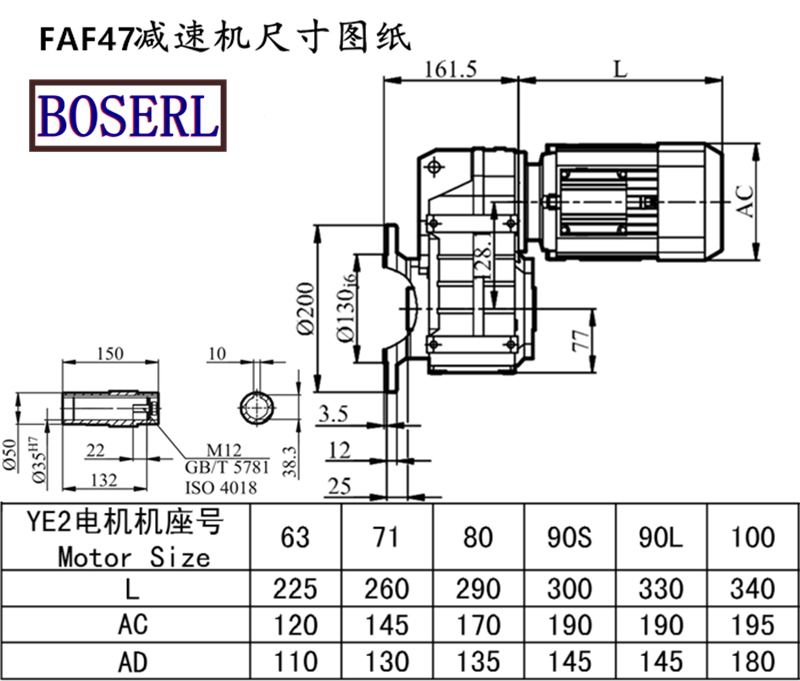

Faf47dve100m4reducing motorInstall size drawings
Faf47dve100m4reducing motorThe manufacturer, please make an appointment three days in advancebrakes motor-reducer
brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc
FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor
FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 37kw speed-reducing machine set faf47dve100m4 faf47drn100m4
- 上一条FAF57DRE80M4
- 下一条FAF37DRS63M4
