Faf57 speed reduction engineDetailed Information
Keyword: faf57 deviation engine_faf57y012kw_faf57y0. 18kw_faf57 deviation machine_faf57 deviation plant
FAF57Y0.12KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF57Y0.12KW | 199.70 | 0.12KW | 6.90rpm | 166N.m | 39.5Kg | 11500N | 3.60 |
| FAF57Y0.12KW | 183.60 | 0.12KW | 7.50rpm | 152N.m | 39.5Kg | 11500N | 3.90 |
| FAF57Y0.12KW | 157.09 | 0.12KW | 8.80rpm | 130N.m | 39.5Kg | 11500N | 4.60 |
| FAF57Y0.12KW | 136.16 | 0.12KW | 10.0rpm | 113N.m | 39.5Kg | 11500N | 5.30 |
FAF57Y0.18KWInduction Motor 3Ph machine electrical parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF57Y0.18KW | 199.70 | 0.18KW | 6.60rpm | 260N.m | 40Kg | 11300N | 2.30 |
| FAF57Y0.18KW | 183.60 | 0.18KW | 7.20rpm | 230N.m | 40Kg | 11500N | 2.50 |
| FAF57Y0.18KW | 157.09 | 0.18KW | 8.40rpm | 200N.m | 40Kg | 11500N | 2.90 |
| FAF57Y0.18KW | 136.16 | 0.18KW | 9.70rpm | 177N.m | 40Kg | 11500N | 3.40 |
| FAF57Y0.18KW | 127.27 | 0.18KW | 10.0rpm | 166N.m | 40Kg | 11500N | 3.60 |
Faf57 reduction engineType:
F. installation of parallel axes on the bottom foot - slashed gearGearboc
Fa. b bottom foot hollow axis with parallel axle-slash gear reduction
Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors
Fa. installation of parallel axes on the hollow axle-slash gear reduction machines
Fv. installation of parallel axes - tilt gear detachor
Faf
Fvf
Faz
Fvz. Is a parallel axle of the b14 flannel cortex
Ff. it's a parallel axle of b5-slash gears
Fh. B bottom foot hollow axle locks, parallel axle-slasher
Fh
Fhf
Fhz

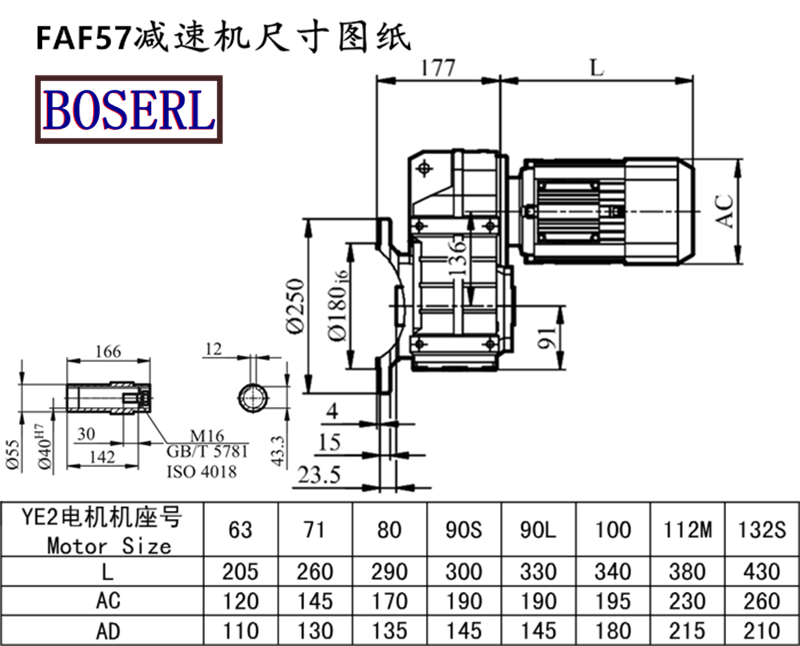

Faf57 reduction engineInstall size drawings
Faf57 reduction engineThe manufacturer, please make an appointment three days in advancebrakes motor-reducer
brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc
FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor
FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: faf57 deviation motor faf57y 0. 12 kw faf57y 0. 18 kw faf57 deviation machine faf57 deviation plant
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FAF57减速机电动机样本 |
|
| FAF57减速机电动机三维图纸 |
|
