2p0. 55kw power parallel axle tilt gear brakes _faf57r37dm71m4_boserl moving faf57r37drrs63m4 decelerator manufacturer

FAF57R37DM71M4Detailed Information

prevnext

FAF57R37DM71M4

TEL：Email:[email protected]

详细信息

Keywords: 2p0. 55kw power parallel axle slash gear reduction machine_faf57r37dm71m4_faf57r37drrs63m4

FAF57R37DM71M4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
FAF57R37DM71M4	255	0.37KW	5.40r/min	580N.m	53kg	9330N	1.05
FAF57R37DM71M4	201	0.37KW	6.90r/min	455N.m	53kg	10200N	1.30
FAF57R37DM71M4	181	0.37KW	7.60r/min	410N.m	53kg	10500N	1.45
FAF57R37DM71M4	262	0.37KW	5.30r/min	615N.m	53kg	9070N	0.95
FAF57R37DM71M4	226	0.37KW	6.10r/min	525N.m	53kg	9740N	1.15
FAF57R37DM71M4	200	0.37KW	6.90r/min	460N.m	53kg	10200N	1.30
FAF57R37DM71M4	170	0.37KW	8.10r/min	390N.m	53kg	10600N	1.50
FAF57R37DM71M4	152	0.37KW	9.00r/min	345N.m	53kg	10900N	1.70
FAF57R37DM71M4	134	0.37KW	10.0r/min	305N.m	53kg	11100N	1.95

FAF57R37DRS63M4Induction Motor 3Ph machine electrical parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
FAF57R37DRS63M4	851	0.12KW	1.60r/min	610N.m	48kg	9100N	1.00
FAF57R37DRS63M4	738	0.12KW	1.90r/min	520N.m	48kg	9750N	1.15
FAF57R37DRS63M4	646	0.12KW	2.10r/min	455N.m	48kg	10200N	1.30
FAF57R37DRS63M4	558	0.12KW	2.50r/min	385N.m	48kg	10600N	1.55
FAF57R37DRS63M4	506	0.12KW	2.70r/min	345N.m	48kg	10900N	1.75
FAF57R37DRS63M4	452	0.12KW	3.00r/min	295N.m	48kg	11100N	2.00
FAF57R37DRS63M4	426	0.12KW	3.20r/min	310N.m	48kg	11100N	1.95
FAF57R37DRS63M4	382	0.12KW	3.60r/min	270N.m	48kg	11300N	2.20
FAF57R37DRS63M4	330	0.12KW	4.20r/min	230N.m	48kg	11500N	2.60
FAF57R37DRS63M4	298	0.12KW	4.60r/min	210N.m	48kg	11500N	2.80
FAF57R37DRS63M4	262	0.12KW	5.30r/min	185N.m	48kg	11500N	3.20

Faf57r37dm71m4 reduction motor Type:

F57r37dm71m4 bottom foot installation of parallel axes - tilt gearGearboc

Fa57br37dm71m4 foot hollow axis installed parallel axle-slash gear brake

Fv57br37dm71m4 bottom feet axis installation of parallel axes - tilt gear deviators

Fa57r37dm71m4 sky axes installation of parallel axes - tilted gear deviators

Fv57r37dm71m4 sky axis installation of parallel axes - tilt-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-stell-stell-stell-stell-steal-stell-stell-stell-stell-stell-stell-ste-stell-stell-ste-ste-ste-ste-ste-stell-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-sal-ste-ste-ste-ste-ste-ste-ste-ste-s

Faf57r37dm71m4 is a parallel axle for the b5 aerocentric axle-slasher

Fvf57r37dm71m4 is a parallel axle for b5 flannel axle-slasher

Faz57r37dm71m4 is a parallel axle for b14f

Fvz57r37dm71m4 is a parallel axle for the b14 flannel axle-slasher

Ff57r37dm71m4 is a parallel axle for b5-slash gears

Fh57br37dm71m4 foot hollow axle locks, parallel axle-slasher

Fh57r37dm71m4 is a parallel axle-sorted gear-reducing machine installed on an empty axle lock

Fhf57r37dm71m4 is a parallel axle for the b5 axle lock-drive

Fhz57r37dm71m4 is a parallel axle-slasher for b14 aerocardiograms

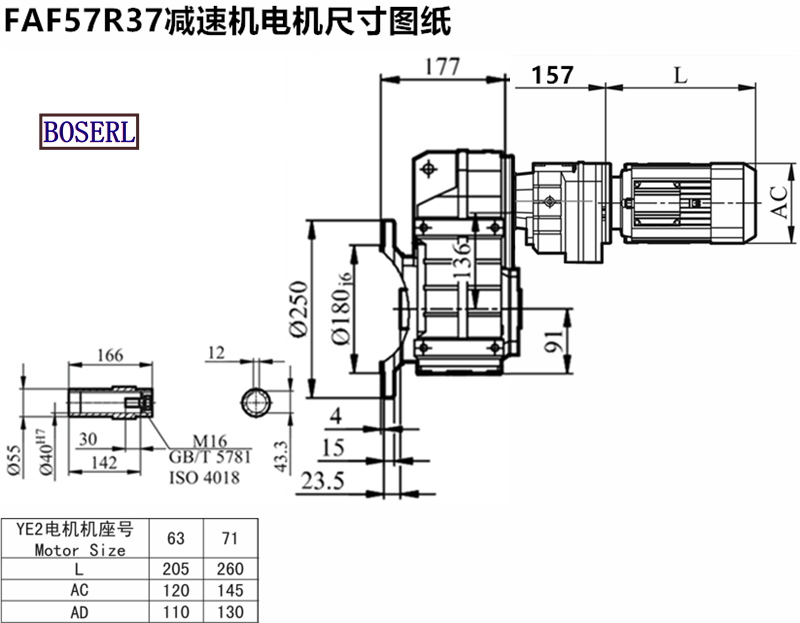

Faf57r37dm71m4 reduction motor Install size drawings

Faf57r37dm71m4 reduction motor The manufacturer, please make an appointment three days in advancebrakes motor-reducer

brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc

FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor

FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
