FAF57R37DV63S4Detailed Information
Keywords: 132 kw2p parallel axe deviation box_faf57r37dv63s4_faf57r37drrn71ms4
FAF57R37DV63S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF57R37DV63S4 | 851 | 0.12KW | 1.60r/min | 610N.m | 48kg | 9100N | 1.00 |
| FAF57R37DV63S4 | 738 | 0.12KW | 1.90r/min | 520N.m | 48kg | 9750N | 1.15 |
| FAF57R37DV63S4 | 646 | 0.12KW | 2.10r/min | 455N.m | 48kg | 10200N | 1.30 |
| FAF57R37DV63S4 | 558 | 0.12KW | 2.50r/min | 385N.m | 48kg | 10600N | 1.55 |
| FAF57R37DV63S4 | 506 | 0.12KW | 2.70r/min | 345N.m | 48kg | 10900N | 1.75 |
| FAF57R37DV63S4 | 452 | 0.12KW | 3.00r/min | 295N.m | 48kg | 11100N | 2.00 |
| FAF57R37DV63S4 | 426 | 0.12KW | 3.20r/min | 310N.m | 48kg | 11100N | 1.95 |
| FAF57R37DV63S4 | 382 | 0.12KW | 3.60r/min | 270N.m | 48kg | 11300N | 2.20 |
| FAF57R37DV63S4 | 330 | 0.12KW | 4.20r/min | 230N.m | 48kg | 11500N | 2.60 |
| FAF57R37DV63S4 | 298 | 0.12KW | 4.60r/min | 210N.m | 48kg | 11500N | 2.80 |
| FAF57R37DV63S4 | 262 | 0.12KW | 5.30r/min | 185N.m | 48kg | 11500N | 3.20 |
Faf57r37drrn71ms4 deviation electric parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF57R37DRN71MS4 | 386 | 0.25KW | 3.40r/min | 620N.m | 52.5kg | 8830N | 0.95 |
| FAF57R37DRN71MS4 | 338 | 0.25KW | 3.80r/min | 540N.m | 52.5kg | 9640N | 1.10 |
| FAF57R37DRN71MS4 | 255 | 0.25KW | 5.10r/min | 405N.m | 52.5kg | 10500N | 1.45 |
| FAF57R37DRN71MS4 | 382 | 0.25KW | 3.40r/min | 635N.m | 52.5kg | 7390N | 0.95 |
| FAF57R37DRN71MS4 | 330 | 0.25KW | 3.90r/min | 550N.m | 52.5kg | 9570N | 1.10 |
| FAF57R37DRN71MS4 | 298 | 0.25KW | 4.40r/min | 495N.m | 52.5kg | 9950N | 1.20 |
| FAF57R37DRN71MS4 | 262 | 0.25KW | 5.00r/min | 435N.m | 52.5kg | 10300N | 1.35 |
| FAF57R37DRN71MS4 | 226 | 0.25KW | 5.80r/min | 370N.m | 52.5kg | 10700N | 1.60 |
| FAF57R37DRN71MS4 | 200 | 0.25KW | 6.50r/min | 320N.m | 52.5kg | 11000N | 1.85 |
| FAF57R37DRN71MS4 | 170 | 0.25KW | 7.60r/min | 275N.m | 52.5kg | 11300N | 2.20 |

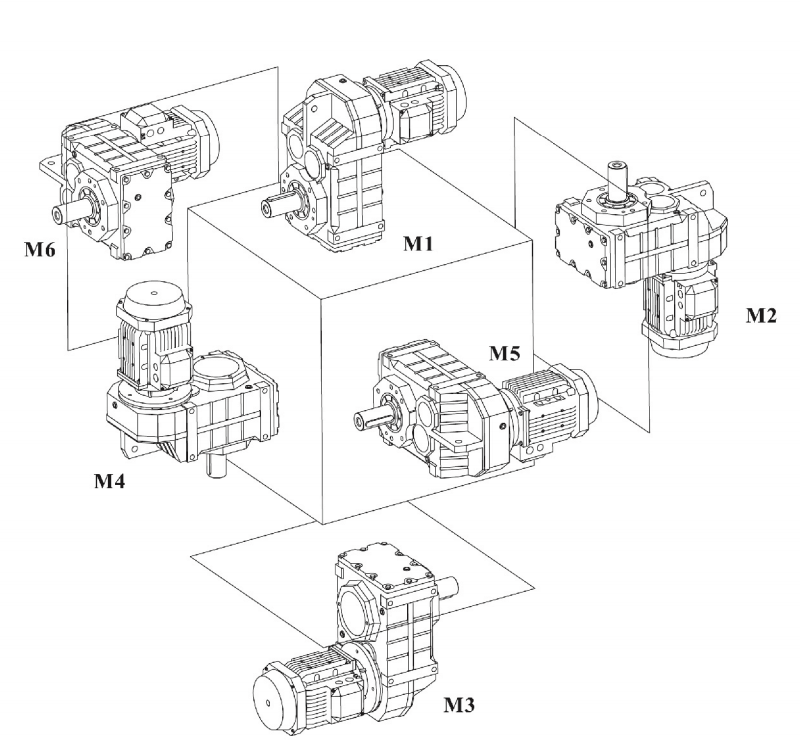

Faf57r37dv63s4 deviation motorType:
F57r37dv63s4 bottom foot installation parallel axes - tilt gearGearboc
Fa57br37dv63s4 foot hollow axis installed parallel axle-slash gear brakes
Fv57br37dv63s4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa57r37dv63s4 sky axes installation of parallel axes - tilted gear deviators
Fv57r37dv63s4 sky axis installation of parallel axes - tilt-view
Faf57r37dv63s4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf57r37dv63s4 is a parallel axle-slash gear-reducing machine for b5-francocardix
Faz57r37dv63s4 is a parallel axle for b14f
Fvz57r37dv63s4 is a parallel axle-slash gear-reducing machine for b14 flannel cores
Ff57r37dv63s4 is a parallel axle for b5-slash gears
Fh57br37dv63s4 foot hollow axle locks, parallel axle-slasher
Fh57r37dv63s4 is a parallel axle-slash-slasher for an empty axle lock
Fhf57r37dv63s4 is a parallel axle-slasher for the b5 axle lock
Fhz57r37dv63s4 is a parallel axle-slasher for b14 aerocentric locks
Faf57r37dv63s4 deviation motorInstall size drawings
Faf57r37dv63s4 deviation motorThe manufacturer, please make an appointment three days in advancebrakes motor-reducer
brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc
FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor
FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
