FAF57RF37-Y0.37KWDetailed Information
Keyword: 0. 55 kw2p parallel axle decelerator_faf57rf37-y0. 37kw_faf57rf37-y63m4
FAF57RF37-Y0.37KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF57RF37-Y0.37KW | 255 | 0.37KW | 5.40r/min | 580N.m | 53kg | 9330N | 1.05 |
| FAF57RF37-Y0.37KW | 201 | 0.37KW | 6.90r/min | 455N.m | 53kg | 10200N | 1.30 |
| FAF57RF37-Y0.37KW | 181 | 0.37KW | 7.60r/min | 410N.m | 53kg | 10500N | 1.45 |
| FAF57RF37-Y0.37KW | 262 | 0.37KW | 5.30r/min | 615N.m | 53kg | 9070N | 0.95 |
| FAF57RF37-Y0.37KW | 226 | 0.37KW | 6.10r/min | 525N.m | 53kg | 9740N | 1.15 |
| FAF57RF37-Y0.37KW | 200 | 0.37KW | 6.90r/min | 460N.m | 53kg | 10200N | 1.30 |
| FAF57RF37-Y0.37KW | 170 | 0.37KW | 8.10r/min | 390N.m | 53kg | 10600N | 1.50 |
| FAF57RF37-Y0.37KW | 152 | 0.37KW | 9.00r/min | 345N.m | 53kg | 10900N | 1.70 |
| FAF57RF37-Y0.37KW | 134 | 0.37KW | 10.0r/min | 305N.m | 53kg | 11100N | 1.95 |
Faf57rf37-y63m4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF57RF37-Y63M4 | 851 | 0.12KW | 1.60r/min | 610N.m | 48kg | 9100N | 1.00 |
| FAF57RF37-Y63M4 | 738 | 0.12KW | 1.90r/min | 520N.m | 48kg | 9750N | 1.15 |
| FAF57RF37-Y63M4 | 646 | 0.12KW | 2.10r/min | 455N.m | 48kg | 10200N | 1.30 |
| FAF57RF37-Y63M4 | 558 | 0.12KW | 2.50r/min | 385N.m | 48kg | 10600N | 1.55 |
| FAF57RF37-Y63M4 | 506 | 0.12KW | 2.70r/min | 345N.m | 48kg | 10900N | 1.75 |
| FAF57RF37-Y63M4 | 452 | 0.12KW | 3.00r/min | 295N.m | 48kg | 11100N | 2.00 |
| FAF57RF37-Y63M4 | 426 | 0.12KW | 3.20r/min | 310N.m | 48kg | 11100N | 1.95 |
| FAF57RF37-Y63M4 | 382 | 0.12KW | 3.60r/min | 270N.m | 48kg | 11300N | 2.20 |
| FAF57RF37-Y63M4 | 330 | 0.12KW | 4.20r/min | 230N.m | 48kg | 11500N | 2.60 |
| FAF57RF37-Y63M4 | 298 | 0.12KW | 4.60r/min | 210N.m | 48kg | 11500N | 2.80 |
| FAF57RF37-Y63M4 | 262 | 0.12KW | 5.30r/min | 185N.m | 48kg | 11500N | 3.20 |
Faf57rf37-y0. 37kw power driveType:
F57rf37-y0. 37kw bottom foot installation of parallel axes - tilt gearsGearboc
Fa57brf37-y0. 37kw foot hollow axis installed parallel axle-slasher
Fv57brf37-y0. 37kw bottom foot flow axis installation of parallel axes - tilt gear deviators
Fa57rf37-y0. 37kw sky axes installation of parallel axes - tilted gear deviators
Fv57rf37-y0. 37kw sky axis installation of parallel axes - tilt-truck retarders
Faf57rf37-y0. 37kw is a parallel axle-slash gear-reducing machine for b5 franium axle
Fvf57rf37-y0. 37kw is a parallel axle-slash gear-reducing machine for the b5 flannel axle
Faz57rf37-y0. 37kw is a parallel axle-slash gear-reducing machine for b14 frank
Fvz57rf37-y0. 37kw is the parallel axis of the b14 flannel axle-slasher
Ff57rf37-y0. 37kw is a parallel to the b5 installation of a side axle-slasher
Fh57brf37-y0. 37kw foot hollow axle locks to install parallel axes - slash gears to slow down
Fh57rf37-y0. 37kw is a parallel axle-slash-slasher for empty axle locks
Fhf57rf37-y0. 37kw is a parallel axle-slasher for b5 axle locks-slashers
Fhz57rf37-y0. 37kw is a parallel axle-slasher for b14 flannel axle

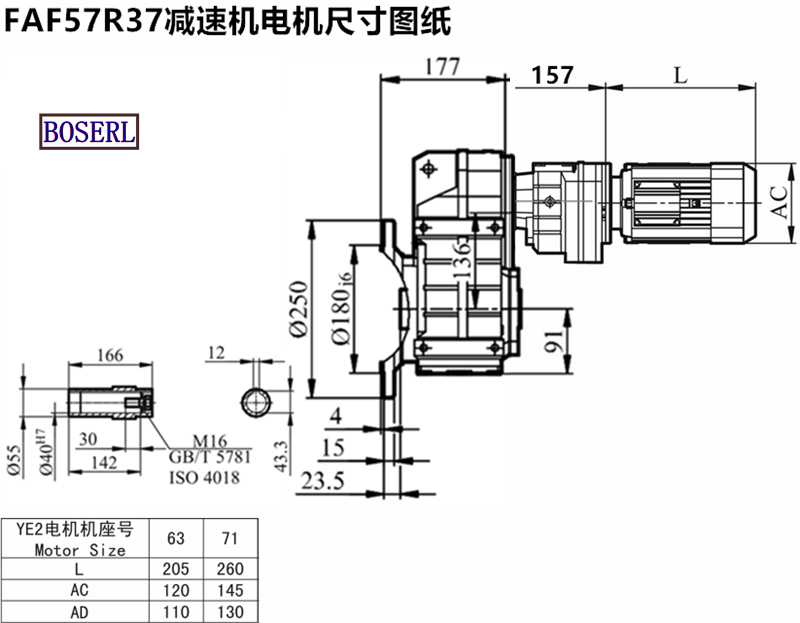

Faf57rf37-y0. 37kw power driveInstall size drawings
Faf57rf37-y0. 37kw power driveThe manufacturer, please make an appointment three days in advancebrakes motor-reducer
brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc
FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor
FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
