Parallel-Shaft Helical Gear Reducer Motor
网站首页 > BOSERL Gear Reducer > Gearboc > brakes motor-reducer

FAF67DRE132MLDetailed Information

FAF67DRE132ML
prevnext

FAF67DRE132ML

TEL：Email:[email protected]
  1. 详细信息

Keyword: tractor startsreducing machine _faf67dre132ml4_faf67drn132l4

FAFA67DRE132ML4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
FAF67DRE132ML422.055.5KW66.0rpm795N.m115Kg10500N1.05
FAF67DRE132ML420.905.5KW70.0rpm750N.m115Kg10900N1.10
FAF67DRE132ML418.295.5KW80.0rpm660N.m115Kg11500N1.25
FAF67DRE132ML416.485.5KW88.0rpm590N.m115Kg11900N1.40
FAF67DRE132ML414.465.5KW101rpm520N.m115Kg12300N1.55
FAF67DRE132ML412.765.5KW114rpm460N.m115Kg12600N1.80
FAF67DRE132ML411.315.5KW129rpm405N.m115Kg12800N2.00
FAF67DRE132ML49.665.5KW151rpm345N.m115Kg12900N2.40
FAF67DRE132ML49.085.5KW160rpm325N.m115Kg12400N1.60
FAF67DRE132ML48.605.5KW169rpm310N.m115Kg12200N1.85
FAF67DRE132ML47.535.5KW193rpm270N.m115Kg11900N2.20
FAF67DRE132ML46.785.5KW214rpm240N.m115Kg11700N2.50
FAF67DRE132ML45.955.5KW245rpm210N.m115Kg11300N2.80
FAF67DRE132ML45.255.5KW277rpm190N.m115Kg11000N3.10
FAF67DRE132ML44.665.5KW313rpm168N.m115Kg10700N3.30
FAF67DRE132ML43.975.5KW366rpm144N.m115Kg10300N3.50

Faf67drn132l4reducing motor parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
FAF67DRN132L422.055.5KW66.0rpm795N.m115Kg10500N1.05
FAF67DRN132L420.905.5KW70.0rpm750N.m115Kg10900N1.10
FAF67DRN132L418.295.5KW80.0rpm660N.m115Kg11500N1.25
FAF67DRN132L416.485.5KW88.0rpm590N.m115Kg11900N1.40
FAF67DRN132L414.465.5KW101rpm520N.m115Kg12300N1.55
FAF67DRN132L412.765.5KW114rpm460N.m115Kg12600N1.80
FAF67DRN132L411.315.5KW129rpm405N.m115Kg12800N2.00
FAF67DRN132L49.665.5KW151rpm345N.m115Kg12900N2.40
FAF67DRN132L49.085.5KW160rpm325N.m115Kg12400N1.60
FAF67DRN132L48.605.5KW169rpm310N.m115Kg12200N1.85
FAF67DRN132L47.535.5KW193rpm270N.m115Kg11900N2.20
FAF67DRN132L46.785.5KW214rpm240N.m115Kg11700N2.50
FAF67DRN132L45.955.5KW245rpm210N.m115Kg11300N2.80
FAF67DRN132L45.255.5KW277rpm190N.m115Kg11000N3.10
FAF67DRN132L44.665.5KW313rpm168N.m115Kg10700N3.30
FAF67DRN132L43.975.5KW366rpm144N.m115Kg10300N3.50

Faf67dre132ml gearboxType:

F. installation of parallel axes on the bottom foot - slashed gearGearboc

Fa. b bottom foot hollow axis with parallel axle-slash gear reduction

Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors

Fa. installation of parallel axes on the hollow axle-slash gear reduction machines

Fv. installation of parallel axes - tilt gear detachor

Faf

Fvf

Faz

Fvz. Is a parallel axle of the b14 flannel cortex

Ff. it's a parallel axle of b5-slash gears

Fh. B bottom foot hollow axle locks, parallel axle-slasher

Fh

Fhf

Fhz

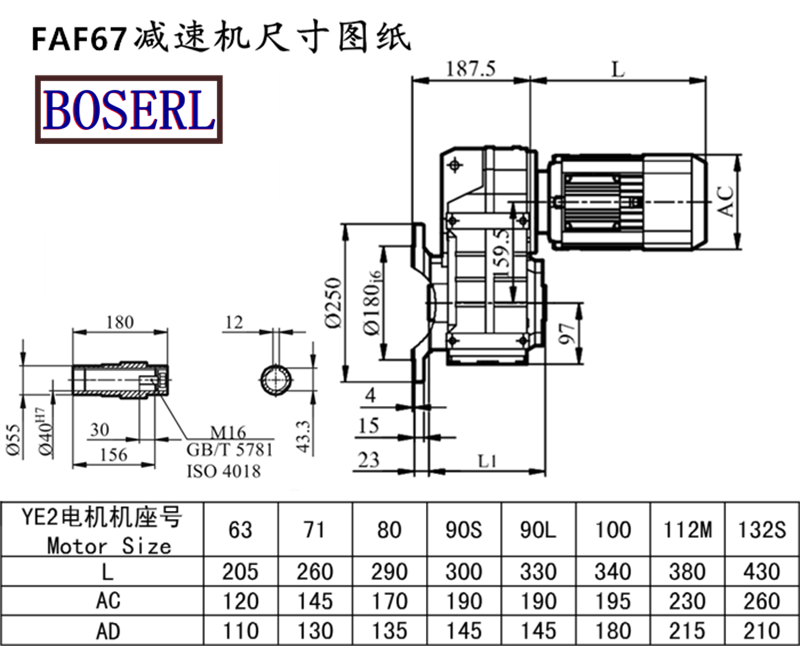

Faf67dre132ml gearboxInstall size drawings



Faf67dre132ml gearboxThe manufacturer, please make an appointment three days in advancebrakes motor-reducer

brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc

FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor

FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW



标签:  Zirconium tractors activated the speed-reducing motor faf67dre132ml4faf67drn132l4
tags： Zirconium tractors activated the speed-reducing motor faf67dre132ml4faf67drn132l4

Documentation related to this product / Related DownLoad

Product Document Name Click to download
FAF67DRE132ML减速机样本 Click to download
FAF67DRE132ML减速机三维图纸 Click to download
