FAF67R37DV63MS4Detailed Information
Keywords: 2p11kw parallel axle slasher power _ faf67r37dv63ms4_faf67r37drn71d4
FAF67R37DV63MS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF67R37DV63MS4 | 1429 | 0.12KW | 0.97r/min | 960N.m | 69kg | 7070N | 0.85 |
| FAF67R37DV63MS4 | 1271 | 0.12KW | 1.10r/min | 860N.m | 69kg | 9840N | 0.95 |
| FAF67R37DV63MS4 | 1102 | 0.12KW | 1.20r/min | 725N.m | 69kg | 11100N | 1.15 |
| FAF67R37DV63MS4 | 970 | 0.12KW | 1.40r/min | 635N.m | 69kg | 11700N | 1.30 |
| FAF67R37DV63MS4 | 858 | 0.12KW | 1.60r/min | 560N.m | 69kg | 12100N | 1.45 |
| FAF67R37DV63MS4 | 755 | 0.12KW | 1.80r/min | 490N.m | 69kg | 12400N | 1.65 |
| FAF67R37DV63MS4 | 641 | 0.12KW | 2.20r/min | 415N.m | 69kg | 12700N | 1.95 |
| FAF67R37DV63MS4 | 572 | 0.12KW | 2.40r/min | 390N.m | 69kg | 12800N | 2.10 |
| FAF67R37DV63MS4 | 509 | 0.12KW | 2.70r/min | 330N.m | 69kg | 13000N | 2.50 |
| FAF67R37DV63MS4 | 437 | 0.12KW | 3.20r/min | 285N.m | 69kg | 13000N | 2.80 |
Faf67r37drn71d4reducing engine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF67R37DRN71D4 | 384 | 0.37KW | 3.60r/min | 880N.m | 74kg | 9670N | 0.95 |
| FAF67R37DRN71D4 | 338 | 0.37KW | 4.10r/min | 785N.m | 74kg | 10600N | 1.05 |
| FAF67R37DRN71D4 | 305 | 0.37KW | 4.50r/min | 700N.m | 74kg | 11200N | 1.15 |
| FAF67R37DRN71D4 | 257 | 0.37KW | 5.40r/min | 590N.m | 74kg | 11900N | 1.40 |
| FAF67R37DRN71D4 | 231 | 0.37KW | 6.00r/min | 520N.m | 74kg | 12300N | 1.55 |
Faf67r37dv63ms4 deviation motorType:
F67r37dv63ms4 bottom foot installation parallel axes - tilt gearGearboc
Fa67br37dv63ms4 foot hollow axis installed parallel axle-slash gear brakes
Fv67br37dv63ms4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa67r37dv63ms4 sky axes installation of parallel axes - tilt gear deviators
Fv67r37dv63ms4 spaceline axes installation of parallel axes - tilt-truck-trinkler
Faf67r37dv63ms4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf67r37dv63ms4 is a parallel axle of b5 francoons installed - a slasher
Faz67r37dv63ms4 is a parallel axle for b14f
Fvz67r37dv63ms4 is a parallel axle-slash gear-reducing machine for b14 flannel cores
Ff67r37dv63ms4 is a parallel axle for b5-slash gear reduction
Fh67br37dv63ms4 foot hollow axle lock, parallel axle-slasher
Fh67r37dv63ms4 is a parallel axle-sweet gear-reducing machine for an empty axle lock
Fhf67r37dv63ms4 is a parallel axle for the b5 axle lock, a slasher
Fhz67r37dv63ms4 is a parallel axle-slasher for the b14 axle lock

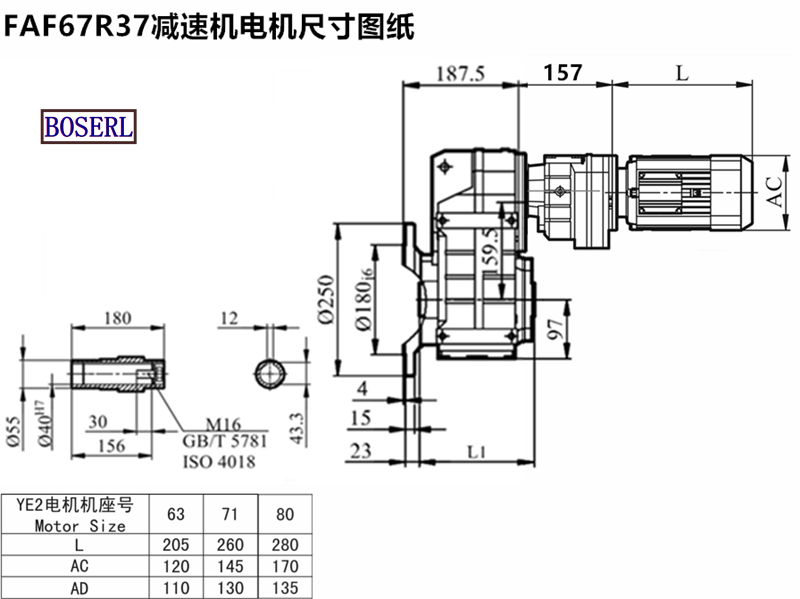

Faf67r37dv63ms4 deviation motorInstall size drawings
Faf67r37dv63ms4 deviation motorThe manufacturer, please make an appointment three days in advancebrakes motor-reducer
brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc
FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor
FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
