FAF67R37DV80K4Detailed Information
Keyword: 2p11kw parallel axe deviator_faf67r37dv80k4_faf67r37drn71s4
FAF67R37DV80K4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF67R37DV80K4 | 257 | 0.55KW | 5.40r/min | 890N.m | 78.5kg | 9610N | 0.90 |
| FAF67R37DV80K4 | 231 | 0.55KW | 6.00r/min | 790N.m | 78.5kg | 10500N | 1.05 |
| FAF67R37DV80K4 | 205 | 0.55KW | 6.70r/min | 705N.m | 78.5kg | 11200N | 1.15 |
| FAF67R37DV80K4 | 175 | 0.55KW | 7.90r/min | 600N.m | 78.5kg | 11900N | 1.35 |
Faf67r37drn71s4 deviation machine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF67R37DRN71S4 | 572 | 0.25KW | 2.30r/min | 930N.m | 73.5kg | 9150N | 0.90 |
| FAF67R37DRN71S4 | 509 | 0.25KW | 2.60r/min | 810N.m | 73.5kg | 10400N | 1.00 |
| FAF67R37DRN71S4 | 437 | 0.25KW | 3.00r/min | 700N.m | 73.5kg | 11200N | 1.15 |
| FAF67R37DRN71S4 | 500 | 0.25KW | 2.60r/min | 830N.m | 73.5kg | 10200N | 1.00 |
| FAF67R37DRN71S4 | 454 | 0.25KW | 2.90r/min | 755N.m | 73.5kg | 10800N | 1.10 |
| FAF67R37DRN71S4 | 392 | 0.25KW | 3.30r/min | 650N.m | 73.5kg | 11600N | 1.25 |
| FAF67R37DRN71S4 | 333 | 0.25KW | 3.90r/min | 550N.m | 73.5kg | 12200N | 1.50 |
| FAF67R37DRN71S4 | 297 | 0.25KW | 4.40r/min | 485N.m | 73.5kg | 12500N | 1.70 |
| FAF67R37DRN71S4 | 261 | 0.25KW | 5.00r/min | 425N.m | 73.5kg | 12700N | 1.90 |
| FAF67R37DRN71S4 | 238 | 0.25KW | 5.50r/min | 385N.m | 73.5kg | 12900N | 2.10 |
Faf67r37dv80k4 deviation motorType:
F67r37dv80k4 bottom foot installation parallel axes - tilt gearGearboc
Fa67br37dv80k bottom foot hollow axis installed parallel axle-slash gear reduction machine
Fv67br37dv80k4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa67r37dv80k4 sky axes installation of parallel axes - tilt gear deviators
Fv67r37dv80k4 sky axis installation of parallel axes - tilt-truck deviators
Faf67r37dv80k4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf67r37dv80k4 is a parallel axle for b5 flannel axle-slasher
Faz67r37dv80k4 is a parallel axle for b14f
Fvz67r37dv80k4 is a parallel axle of b14 flannel cores installed on the side-slash gear brakes
Ff67r37dv80k4 is a parallel to the b5-slash gear reduction machine
Fh67br37dv80k4 foot hollow axle locks to install parallel axes-slash gear-reducing machines
Fh67r37dv80k4 is a parallel axle-slash-slasher for an empty axle lock
Fhf67r37dv80k4 is a parallel axle for the b5 axle lock, a slasher
Fhz67r37dv80k4 is a parallel axle for the b14 axle lock-drive

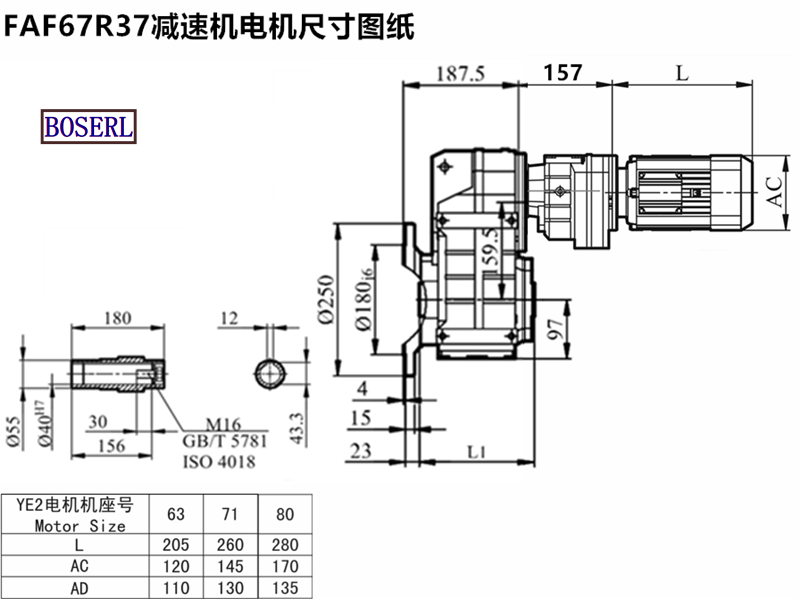

Faf67r37dv80k4 deviation motorInstall size drawings
Faf67r37dv80k4 deviation motorThe manufacturer, please make an appointment three days in advancebrakes motor-reducer
brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc
FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor
FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 2p11kw parallel axle decelerator faf67r37dv80k4ffaf67r37drn71s4
