FAF67R37DV80M4Detailed Information
Keyword: 2p132kw parallel axle gear reduction box_faf67r37dv80m4_faf67r37drrn71m4
FAF67R37DV80M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF67R37DV80M4 | 257 | 0.55KW | 5.40r/min | 890N.m | 78.5kg | 9610N | 0.90 |
| FAF67R37DV80M4 | 231 | 0.55KW | 6.00r/min | 790N.m | 78.5kg | 10500N | 1.05 |
| FAF67R37DV80M4 | 205 | 0.55KW | 6.70r/min | 705N.m | 78.5kg | 11200N | 1.15 |
| FAF67R37DV80M4 | 175 | 0.55KW | 7.90r/min | 600N.m | 78.5kg | 11900N | 1.35 |
Faf67r37drn71m4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF67R37DRN71M4 | 384 | 0.37KW | 3.60r/min | 880N.m | 74kg | 9670N | 0.95 |
| FAF67R37DRN71M4 | 338 | 0.37KW | 4.10r/min | 785N.m | 74kg | 10600N | 1.05 |
| FAF67R37DRN71M4 | 305 | 0.37KW | 4.50r/min | 700N.m | 74kg | 11200N | 1.15 |
| FAF67R37DRN71M4 | 257 | 0.37KW | 5.40r/min | 590N.m | 74kg | 11900N | 1.40 |
| FAF67R37DRN71M4 | 231 | 0.37KW | 6.00r/min | 520N.m | 74kg | 12300N | 1.55 |
Faf67r37dv80m4 reduction motor Type:
F67r37dv80m4 bottom foot installation parallel axes - tilt gearGearboc
Fa67br37dv80m4 foot hollow axis installed parallel axle-slash gear brake
Fv67br37dv80m4 bottom feet cascular axes installation of parallel axes - tilt gear deviators
Fa67r37dv80m4 sky axes installation of parallel axes - tilt gear deviators
Fv67r37dv80m4 sky axis installation of parallel axes - tilt gear deviators
Faf67r37dv80m4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf67r37dv80m4 is a parallel axle for b5 flannel cores - a slasher
Faz67r37dv80m4 is a parallel axle for b14f
Fvz67r37dv80m4 is a parallel axle for the b14 flannel axle-slasher
Ff67r37dv80m4 is a parallel to the b5-slash gear reduction machine
Fh67br37dv80m4 foot hollow axle lock, parallel axle-slasher
Fh67r37dv80m4 is a parallel axle-slash-slasher for the empty axle lock
Fhf67r37dv80m4 is the parallel axle for the b5 axle lock-drive
Fhz67r37dv80m4 is a parallel axle for the b14 axle lock-drive

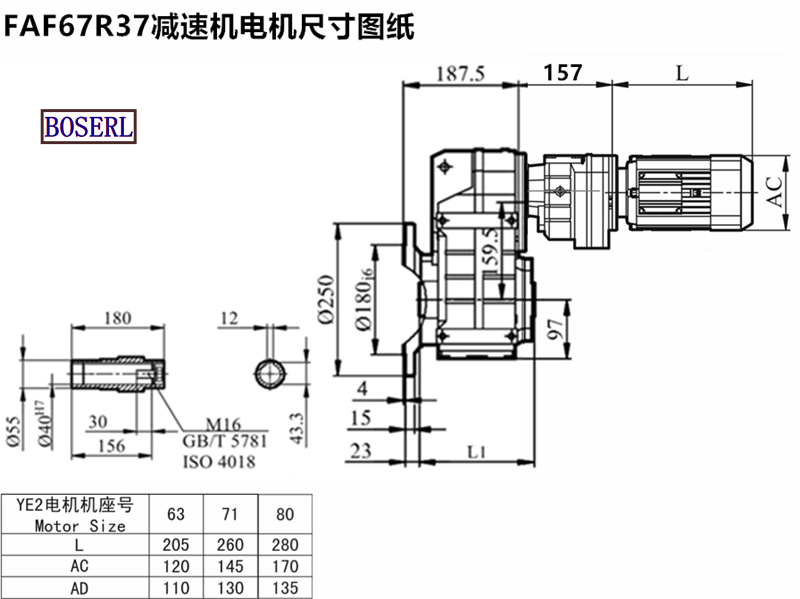

Faf67r37dv80m4 reduction motor Install size drawings
Faf67r37dv80m4 reduction motor The manufacturer, please make an appointment three days in advancebrakes motor-reducer
brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc
FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor
FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
