FAF67R37DVE80M4Detailed Information
Keyword: 2p11kw parallel-axis gear deviation engine_faf67r37dve80m4_faf67r37dr71m4
FAF67R37DVE80M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF67R37DVE80M4 | 257 | 0.55KW | 5.40r/min | 890N.m | 78.5kg | 9610N | 0.90 |
| FAF67R37DVE80M4 | 231 | 0.55KW | 6.00r/min | 790N.m | 78.5kg | 10500N | 1.05 |
| FAF67R37DVE80M4 | 205 | 0.55KW | 6.70r/min | 705N.m | 78.5kg | 11200N | 1.15 |
| FAF67R37DVE80M4 | 175 | 0.55KW | 7.90r/min | 600N.m | 78.5kg | 11900N | 1.35 |
Faf67r37dr71m4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF67R37DR71M4 | 384 | 0.37KW | 3.60r/min | 880N.m | 74kg | 9670N | 0.95 |
| FAF67R37DR71M4 | 338 | 0.37KW | 4.10r/min | 785N.m | 74kg | 10600N | 1.05 |
| FAF67R37DR71M4 | 305 | 0.37KW | 4.50r/min | 700N.m | 74kg | 11200N | 1.15 |
| FAF67R37DR71M4 | 257 | 0.37KW | 5.40r/min | 590N.m | 74kg | 11900N | 1.40 |
| FAF67R37DR71M4 | 231 | 0.37KW | 6.00r/min | 520N.m | 74kg | 12300N | 1.55 |
Faf67r37dve80m4 deviation engineType:
F67r37dve80m4 bottom foot installation parallel axes - tilt gearGearboc
Fa67br37dve80m4 foot hollow axis installed parallel axle-slash gear brake
Fv67br37dve80m4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa67r37dve80m4 sky axes installation of parallel axes - tilt gear deviators
Fv67r37dve80m4 sky axes installation of parallel axes - tilt-truck-trinkler
Faf67r37dve80m4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf67r37dve80m4 is the parallel axis of the b5-franco-axes-silver-silver-turpors
Faz67r37dve80m4 is a parallel axle for b14f
Fvz67r37dve80m4 is a parallel axle for the b14 flannel axle-slasher
Ff67r37dve80m4 is a parallel to the b5-slash gear reduction machine
Fh67br37dve80m4 foot hollow axle locks to install parallel axes - slash gears to slow down
Fh67r37dve80m4 is a parallel axle-slash-slasher for an empty axle lock
Fhf67r37dve80m4 is a parallel axle for b5 axle lock-drive-slasher
Fhz67r37dve80m4 is a parallel axle for b14 aerocentric lockboards - a slasher

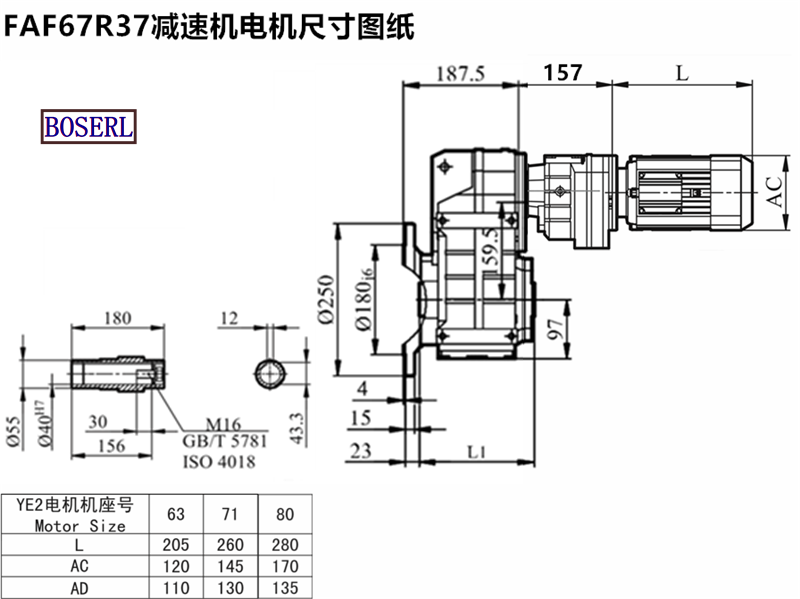

Faf67r37dve80m4 deviation engineInstall size drawings
Faf67r37dve80m4 deviation engineThe manufacturer, please make an appointment three days in advancebrakes motor-reducer
brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc
FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor
FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 2p11kw parallel axle gear-reducing power faf67r37dve80m4 faf67r37dr71m4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FAF67R37DVE80M4减速机样本 |
|
| FAF67R37DVE80M4减速机三维图纸 |
|
