FAF67RF37-Y0.25KWDetailed Information
Keywords: 2p132kw parallel axle slasher power _faf67rf37-y0. 25kw_faf67rf37-y0. 55kw
FAF67RF37-Y0.25KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF67RF37-Y0.25KW | 572 | 0.25KW | 2.30r/min | 930N.m | 73.5kg | 9150N | 0.90 |
| FAF67RF37-Y0.25KW | 509 | 0.25KW | 2.60r/min | 810N.m | 73.5kg | 10400N | 1.00 |
| FAF67RF37-Y0.25KW | 437 | 0.25KW | 3.00r/min | 700N.m | 73.5kg | 11200N | 1.15 |
| FAF67RF37-Y0.25KW | 500 | 0.25KW | 2.60r/min | 830N.m | 73.5kg | 10200N | 1.00 |
| FAF67RF37-Y0.25KW | 454 | 0.25KW | 2.90r/min | 755N.m | 73.5kg | 10800N | 1.10 |
| FAF67RF37-Y0.25KW | 392 | 0.25KW | 3.30r/min | 650N.m | 73.5kg | 11600N | 1.25 |
| FAF67RF37-Y0.25KW | 333 | 0.25KW | 3.90r/min | 550N.m | 73.5kg | 12200N | 1.50 |
| FAF67RF37-Y0.25KW | 297 | 0.25KW | 4.40r/min | 485N.m | 73.5kg | 12500N | 1.70 |
| FAF67RF37-Y0.25KW | 261 | 0.25KW | 5.00r/min | 425N.m | 73.5kg | 12700N | 1.90 |
| FAF67RF37-Y0.25KW | 238 | 0.25KW | 5.50r/min | 385N.m | 73.5kg | 12900N | 2.10 |
Faf67rf37-y0. 55kwing machine electric parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF67RF37-Y0.55KW | 257 | 0.55KW | 5.40r/min | 890N.m | 78.5kg | 9610N | 0.90 |
| FAF67RF37-Y0.55KW | 231 | 0.55KW | 6.00r/min | 790N.m | 78.5kg | 10500N | 1.05 |
| FAF67RF37-Y0.55KW | 205 | 0.55KW | 6.70r/min | 705N.m | 78.5kg | 11200N | 1.15 |
| FAF67RF37-Y0.55KW | 175 | 0.55KW | 7.90r/min | 600N.m | 78.5kg | 11900N | 1.35 |
Faf67rf37-y0. 25kw power driveType:
F67rf37-y0. 25kw bottom foot installation of parallel axes - tilt gearsGearboc
Fa67bf37-y0. 25kw foot hollow axis installed parallel axle-slasher
Fv67brf37-y0. 25kw bottom feet axis installation of parallel axes - tilt gear deviators
Fa67rf37-y0. 25kw sky axis installation of parallel axes - tilt gear deviators
Fv67rf37-y0. 25kw sky axis installation of parallel axes - tilt gear deviators
Faf67rf37-y0. 25kw is the parallel axle-slash gear-reducing machine for the b5 french aerocentric axis
Fvf67rf37-y0. 25kw is a parallel axle-slash gear-reducing machine installed on the b5 flannel axis
Faz67rf37-y0. 25kw is a parallel axle for b14 flange-slasher
Fvz67rf37-y0. 25kw is a parallel axle for b14 flannel axle-slasher
Ff67rf37-y0. 25kw is a parallel to the b5 installation of a side axle-slasher
Fh67brf37-y0. 25kw bottom foot hollow axle locks, parallel axle-slasher
Fh67rf37-y0. 25kw is a parallel axle-slash-slasher for a hollow axle lock
Fhf67rf37-y0. 25kw is a parallel axle-slash-slasher for the b5 axle
Fhz67rf37-y0. 25kw is the parallel axle-slasher for the b14 axle lock plate-slasher

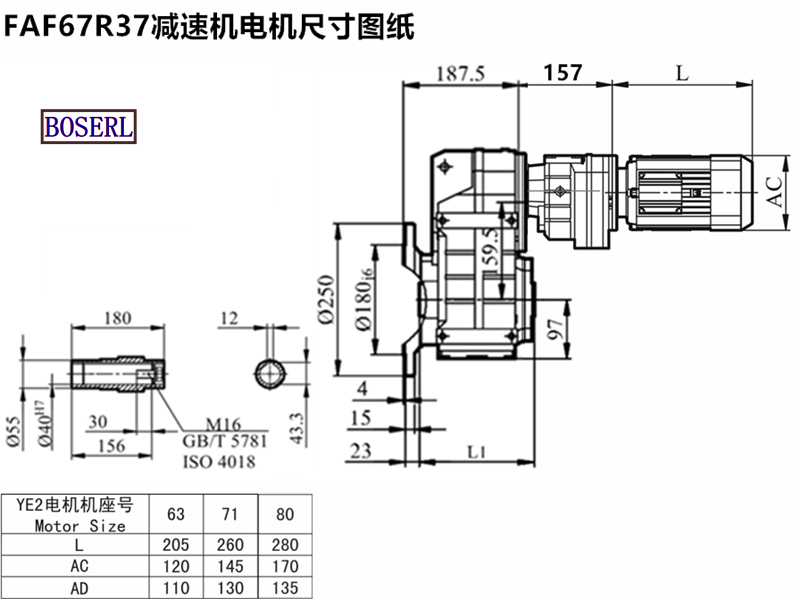

Faf67rf37-y0. 25kw power driveInstall size drawings
Faf67rf37-y0. 25kw power driveThe manufacturer, please make an appointment three days in advancebrakes motor-reducer
brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc
FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor
FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 2p132kw parallel-axis slash gear reduction motor faf67rf37-y0. 25kw faf67rf37-y0. 55kw
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FAF67RF37Y0.25KW减速机样本 |
|
| FAF67RF37Y0.25KW减速机三维图纸 |
|
