Faf77 motor speed reduction machineDetailed Information

Faf77 motor speed reduction machine
prevnext

Faf77 motor speed reduction machine

TEL：Email:[email protected]
  1. 详细信息

Keyword: faf77 motor decelerator _faf77y1. 5kw_faf77y2. 2kw_faf77 motor _faf77 motor manufacturer _faf77 motor manufacturer

FAF77Y1.5KWGeared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
FAF77Y1.5KW166.471.5KW8.60rpm1660N.m113kg14500N0.90
FAF77Y1.5KW142.271.5KW10.0rpm1420N.m113kg16200N1.05
FAF77Y1.5KW130.421.5KW11.0rpm1300N.m113kg16900N1.15
FAF77Y1.5KW114.451.5KW12.0rpm1140N.m113kg17700N1.30
FAF77Y1.5KW108.461.5KW13.0rpm1080N.m113kg18000N1.40
FAF77Y1.5KW94.931.5KW15.0rpm950N.m113kg18500N1.60
FAF77Y1.5KW85.521.5KW17.0rpm850N.m113kg18800N1.75
FAF77Y1.5KW75.021.5KW19.0rpm750N.m113kg19100N2.00
FAF77Y1.5KW72.501.5KW20.0rpm725N.m113kg19200N2.10
FAF77Y1.5KW66.461.5KW22.0rpm665N.m113kg19300N2.20
FAF77Y1.5KW58.321.5KW25.0rpm580N.m113kg19500N2.60
FAF77Y1.5KW55.271.5KW26.0rpm550N.m113kg19600N2.70
FAF77Y1.5KW48.371.5KW30.0rpm480N.m113kg19700N3.10
FAF77Y1.5KW43.581.5KW33.0rpm435N.m113kg19800N3.40
FAF77Y1.5KW38.231.5KW37.0rpm380N.m113kg19900N3.90
FAF77Y1.5KW36.581.5KW39.0rpm365N.m113kg19900N3.00
FAF77Y1.5KW31.511.5KW45.0rpm315N.m113kg20000N4.40

FAF77Y2.2KWInduction Motor 3Ph machine electrical parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
FAF77Y2.2KW114.452.2KW12.0rpm1680N.m122kg14300N0.90
FAF77Y2.2KW108.462.2KW13.0rpm1590N.m122kg15000N0.95
FAF77Y2.2KW94.93
2.2KW15.0rpm1390N.m122kg16400N1.05
FAF77Y2.2KW85.522.2KW17.0rpm1260N.m122kg17100N1.20
FAF77Y2.2KW75.022.2KW19.0rpm1100N.m122kg17900N1.35
FAF77Y2.2KW66.462.2KW21.0rpm970N.m122kg18400N
1.55
FAF77Y2.2KW58.322.2KW24.0rpm850N.m122kg18800N1.75
FAF77Y2.2KW55.272.2KW26.0rpm810N.m122kg18900N1.85
FAF77Y2.2KW48.372.2KW29.0rpm710N.m122kg19200N2.10
FAF77Y2.2KW43.582.2KW33.0rpm640N.m122kg19400N2.30
FAF77Y2.2KW36.582.2KW39.0rpm535N.m122kg19600N2.10
FAF77Y2.2KW31.512.2KW45.0rpm460N.m122kg19800N3.00
FAF77Y2.2KW28.752.2KW50.0rpm420N.m122kg19800N3.40
FAF77Y2.2KW25.502.2KW56.0rpm375N.m122kg19900N4.00

Faf77 motor reduction machineType:

F. installation of parallel axes on the bottom foot - slashed gearGearboc

Fa. b bottom foot hollow axis with parallel axle-slash gear reduction

Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors

Fa. installation of parallel axes on the hollow axle-slash gear reduction machines

Fv. installation of parallel axes - tilt gear detachor

Faf

Fvf

Faz

Fvz. Is a parallel axle of the b14 flannel cortex

Ff. it's a parallel axle of b5-slash gears

Fh. B bottom foot hollow axle locks, parallel axle-slasher

Fh

Fhf

Fhz

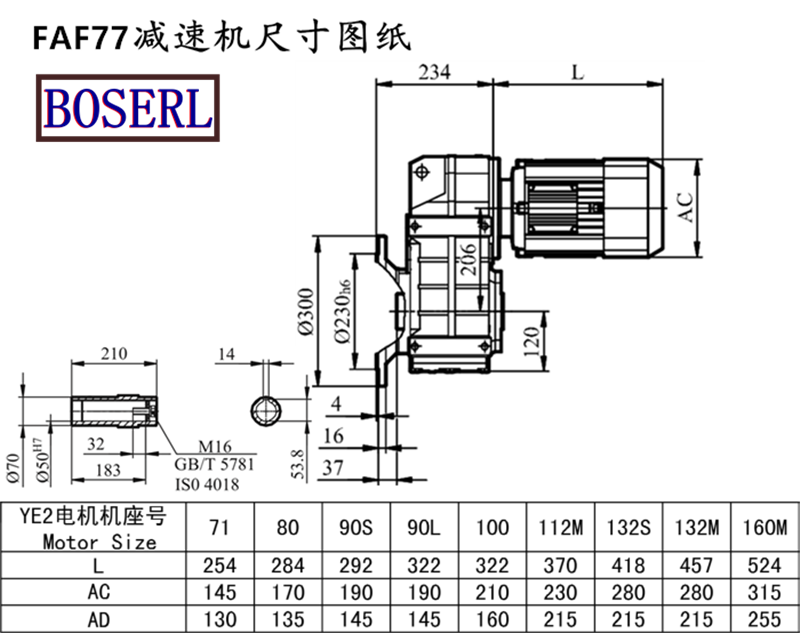

Faf77 motor reduction machineInstall size drawings



Faf77 motor reduction machineThe manufacturer, please make an appointment three days in advancebrakes motor-reducer

brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc

FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor

FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW



标签:   faf77 motor speed-reducing machine  faf77y1. 5kw faf77y2. 2kw faf77 electric motor  faf77 power-reducing plant  faf77 power-relayer
tags：    faf77 motor speed-reducing machine    faf77y1. 5kw   faf77y2. 2kw   faf77 electric motor    faf77 power-reducing plant    faf77 power-relayer

Documentation related to this product / Related DownLoad

Product Document Name Click to download
FAF77电动机减速机样本 Click to download
FAF77电动机减速机三维图纸 Click to download
