Faf97y30kw deviator_faf97y160m4_boserl moving faf97y180m4 deviators

Faf97 power-reducing deviceDetailed Information

prevnext

Faf97 power-reducing device

TEL：Email:[email protected]

详细信息

Keywords: faf97 power decelerator_faf97y30kw_faf97y160m4_faf97y180m4_faf97reducing power plant_faf97reducing power plant

FAF97Y30KWGeared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
FAF97Y30KW	22.11	30KW	67.0rpm	4290N.m	513kg	15100N	1.00
FAF97Y30KW	20.07	30KW	74.0rpm	3890N.m	513kg	15500N	1.10
FAF97Y30KW	17.25	30KW	86.0rpm	3350N.m	513kg	16000N	1.30
FAF97Y30KW	15.06	30KW	98.0rpm	2920N.m	513kg	16300N	1.45
FAF97Y30KW	12.77	30KW	116rpm	2480N.m	513kg	16400N	1.75
FAF97Y30KW	11.16	30KW	132rpm	2160N.m	513kg	16400N	1.90
FAF97Y30KW	9.06	30KW	163rpm	1760N.m	513kg	15400N	1.35
FAF97Y30KW	8.22	30KW	179rpm	1590N.m	513kg	15300N	1.50
FAF97Y30KW	7.07	30KW	209rpm	1370N.m	513kg	15100N	1.70
FAF97Y30KW	6.17	30KW	239rpm	1190N.m	513kg	14900N	1.90
FAF97Y30KW	5.23	30KW	282rpm	1010N.m	513kg	14600N	2.10
FAF97Y30KW	4.57	30KW	322rpm	880N.m	513kg	14300N	2.30

FAF97Y160M4Induction Motor 3Ph machine electrical parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
FAF97Y160M4	65.47	11KW	23.0rpm	4660N.m	375kg	26900N	0.90
FAF97Y160M4	58.06	11KW	25.0rpm	4130N.m	375kg	27100N	1.05
FAF97Y160M4	52.49	11KW	28.0rpm	3730N.m	375kg	27100N	1.15
FAF97Y160M4	44.49	11KW	33.0rpm	3160N.m	375kg	26900N	1.35
FAF97Y160M4	38.86	11KW	38.0rpm	2760N.m	375kg	26700N	1.55
FAF97Y160M4	32.50	11KW	45.0rpm	2310N.m	375kg	26200N	1.85
FAF97Y160M4	33.91	11KW	44.0rpm	2410N.m	375kg	26300N	1.80
FAF97Y160M4	30.39	11KW	49.0rpm	2160N.m	375kg	25900N	2.00
FAF97Y160M4	27.44	11KW	54.0rpm	1950N.m	375kg	25500N	2.20
FAF97Y160M4	24.92	11KW	59.0rpm	1770N.m	375kg	25100N	2.40
FAF97Y160M4	22.11	11KW	67.0rpm	1570N.m	375kg	24600N	2.70

Faf97y180m4 reduction motor parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
FAF97Y180M4	27.44	22KW	54.0rpm	3900N.m	445kg	18700N	1.10
FAF97Y180M4	24.92	22KW	59.0rpm	3540N.m	445kg	18900N	1.20
FAF97Y180M4	22.11	22KW	67.0rpm	3140N.m	445kg	19100N	1.35
FAF97Y180M4	20.07	22KW	74.0rpm	2850N.m	445kg	19200N	1.50
FAF97Y180M4	17.25	22KW	86.0rpm	2450N.m	445kg	19100N	1.75
FAF97Y180M4	15.06	22KW	98.0rpm	2140N.m	445kg	19000N	2.00
FAF97Y180M4	12.77	22KW	116rpm	1810N.m	445kg	18700N	2.40
FAF97Y180M4	11.16	22KW	132rpm	1580N.m	445kg	18400N	2.60

Faf97 power-reducing deviceType:

F. installation of parallel axes on the bottom foot - slashed gearGearboc

Fa. b bottom foot hollow axis with parallel axle-slash gear reduction

Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors

Fa. installation of parallel axes on the hollow axle-slash gear reduction machines

Fv. installation of parallel axes - tilt gear detachor

Faf

Fvf

Faz

Fvz. Is a parallel axle of the b14 flannel cortex

Ff. it's a parallel axle of b5-slash gears

Fh. B bottom foot hollow axle locks, parallel axle-slasher

Fhf

Fhz

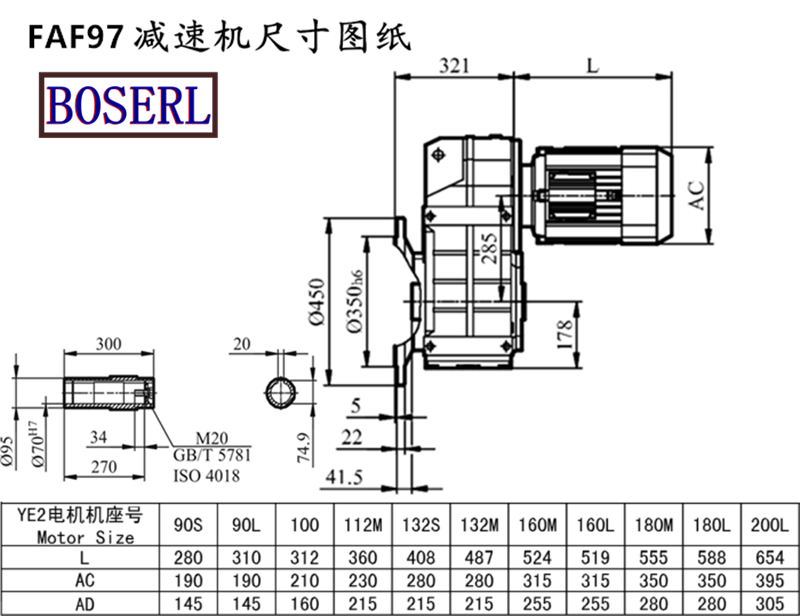

Faf97 power-reducing deviceInstall size drawings

Faf97 power-reducing deviceThe manufacturer, please make an appointment three days in advancebrakes motor-reducer

brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc

FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor

FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW

标签: Faf97 faf97y30kw faf97y160m4 faf97y180m4 faf97 faf97 faf97 电 faf97 电 faf97 faf97 faf97 full 97 full 97 faf97 full 97 full faf97

上一条Faf97 gearbox
下一条Faf97 speed reduction motor

Documentation related to this product / Related DownLoad

Product Document Name	Click to download
FAF97电机减速器样本
FAF97电机减速器三维图纸
