Faf97 speed reduction motorDetailed Information
Keywords: faf97 reduction motor _faf97y200m4_ faf97y1. 1kw_faf97 deviation plant
FAF97Y200M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF97Y200M4 | 22.11 | 30KW | 67.0rpm | 4290N.m | 513kg | 15100N | 1.00 |
| FAF97Y200M4 | 20.07 | 30KW | 74.0rpm | 3890N.m | 513kg | 15500N | 1.10 |
| FAF97Y200M4 | 17.25 | 30KW | 86.0rpm | 3350N.m | 513kg | 16000N | 1.30 |
| FAF97Y200M4 | 15.06 | 30KW | 98.0rpm | 2920N.m | 513kg | 16300N | 1.45 |
| FAF97Y200M4 | 12.77 | 30KW | 116rpm | 2480N.m | 513kg | 16400N | 1.75 |
| FAF97Y200M4 | 11.16 | 30KW | 132rpm | 2160N.m | 513kg | 16400N | 1.90 |
| FAF97Y200M4 | 9.06 | 30KW | 163rpm | 1760N.m | 513kg | 15400N | 1.35 |
| FAF97Y200M4 | 8.22 | 30KW | 179rpm | 1590N.m | 513kg | 15300N | 1.50 |
| FAF97Y200M4 | 7.07 | 30KW | 209rpm | 1370N.m | 513kg | 15100N | 1.70 |
| FAF97Y200M4 | 6.17 | 30KW | 239rpm | 1190N.m | 513kg | 14900N | 1.90 |
| FAF97Y200M4 | 5.23 | 30KW | 282rpm | 1010N.m | 513kg | 14600N | 2.10 |
| FAF97Y200M4 | 4.57 | 30KW | 322rpm | 880N.m | 513kg | 14300N | 2.30 |
FAF97Y1.1KWInduction Motor 3Ph machine electrical parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF97Y1.1KW | 276.77 | 1.1KW | 5.10rpm | 2040N.m | 280kg | 35300N | 2.10 |
| FAF97Y1.1KW | 253.41 | 1.1KW | 5.60rpm | 1870N.m | 280kg | 35600N | 2.30 |
| FAF97Y1.1KW | 223.88 | 1.1KW | 6.30rpm | 1650N.m | 280kg | 36000N | 2.60 |
Faf97 reduction motor Type:
F. installation of parallel axes on the bottom foot - slashed gearGearboc
Fa. b bottom foot hollow axis with parallel axle-slash gear reduction
Fv. B bottom feeting keys installation of parallel axes - tilt gear detachors
Fa. installation of parallel axes on the hollow axle-slash gear reduction machines
Fv. installation of parallel axes - tilt gear detachor
Faf
Fvf
Faz
Fvz. Is a parallel axle of the b14 flannel cortex
Ff. it's a parallel axle of b5-slash gears
Fh. B bottom foot hollow axle locks, parallel axle-slasher
Fh
Fhf
Fhz

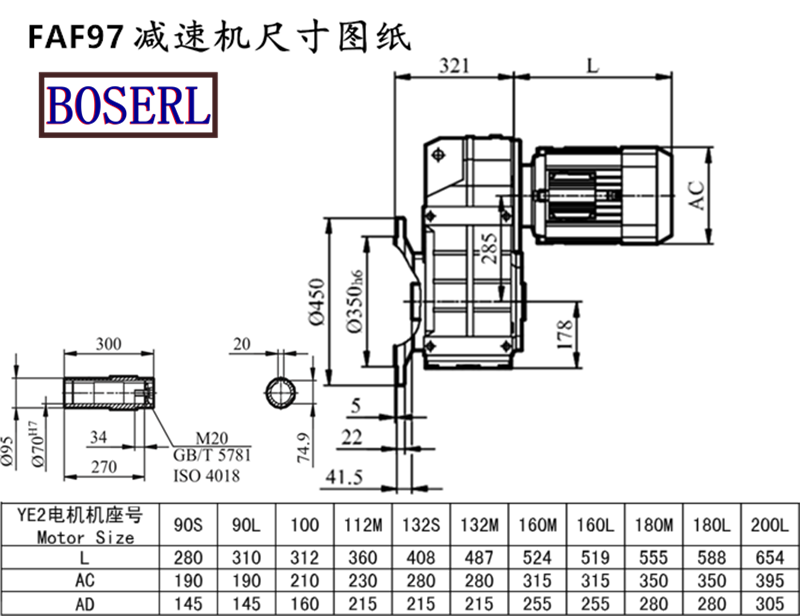

Faf97 reduction motor Install size drawings
Faf97 reduction motor The manufacturer, please make an appointment three days in advancebrakes motor-reducer
brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc
FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor
FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: Faf97 speed-reducing motor faf97y200m4 faf97y1. 1kw faf97 speed-reducing plant faf97 speed-reducing plant
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FAF97减速机电动机样本 |
|
| FAF97减速机电动机三维图纸 |
|
