FAF97RF57-Y0.37KWDetailed Information
Keyword: 2p0. 25kw parallel axle slash motors_faf97rf57-y0. 37kw_faf97rf57-y2. 2kw
FAF97RF57-Y0.37KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF97RF57-Y0.37KW | 1970 | 0.37KW | 0.70r/min | 4540N.m | 288.5kg | 29200N | 0.95 |
| FAF97RF57-Y0.37KW | 1527 | 0.37KW | 0.90r/min | 3540N.m | 288.5kg | 32000N | 1.20 |
| FAF97RF57-Y0.37KW | 1327 | 0.37KW | 1.00r/min | 2990N.m | 288.5kg | 33300N | 1.45 |
| FAF97RF57-Y0.37KW | 1171 | 0.37KW | 1.20r/min | 2710N.m | 288.5kg | 33900N | 1.60 |
| FAF97RF57-Y0.37KW | 1022 | 0.37KW | 1.40r/min | 2370N.m | 288.5kg | 34700N | 1.80 |
| FAF97RF57-Y0.37KW | 898 | 0.37KW | 1.50r/min | 2000N.m | 288.5kg | 35400N | 2.10 |
| FAF97RF57-Y0.37KW | 1722 | 0.37KW | 0.80r/min | 3990N.m | 288.5kg | 30800N | 1.10 |
Faf97rf57-y2. 2kwreducing engine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF97RF57-Y2.2KW | 285 | 2.2KW | 5.00r/min | 3900N.m | 310kg | 31000N | 1.10 |
| FAF97RF57-Y2.2KW | 245 | 2.2KW | 5.80r/min | 3350N.m | 310kg | 32500N | 1.30 |
Faf97rf57-y0. 37kw motor for reductionType:
F97rf57-y0. 37kw bottom foot installation parallel axes - tilt gearGearboc
Fa97brf57-y0. 37kw foot hollow axis installed parallel axle-slasher
Fv97brf57-y0. 37kw bottom feet axis installation of parallel axes - tilt gear deviators
Fa97rf57-y0. 37kw sky axes installation of parallel axes - tilt gear deviators
Fv97rf57-y0. 37kw sky axis installation of parallel axes - tilt-truck deviators
Faf97rf57-y0. 37kw is the parallel axle-slash gear-reducing machine for the b5 franium axle
Fvf97rf57-y0. 37kw is a parallel axle-slash-pattern-reducing machine for b5 flannel cores
Faz97rf57-y0. 37kw is a parallel axle-slash gear-reducing machine for b14 frank
Fvz97rf57-y0. 37kw is a parallel axle for b14 flannel axle-slasher
Fff97rf57-y0. 37kw is a parallel to the b5 installation of a parallel axle - a slasher
Fh97brf57-y0. 37kw foot hollow axle locks to install parallel axes-slash gear-reving machines
Fh97rf57-y0. 37kw is the parallel axle-slash-slasher for the empty axle lock
Fhf97rf57-y0. 37kw is a parallel axle-slasher for b5 axle locker-slasher
Fhz97rf57-y0. 37kw is the parallel axle-sweet gear-reducing machine installed on the b14 air axes lockboard

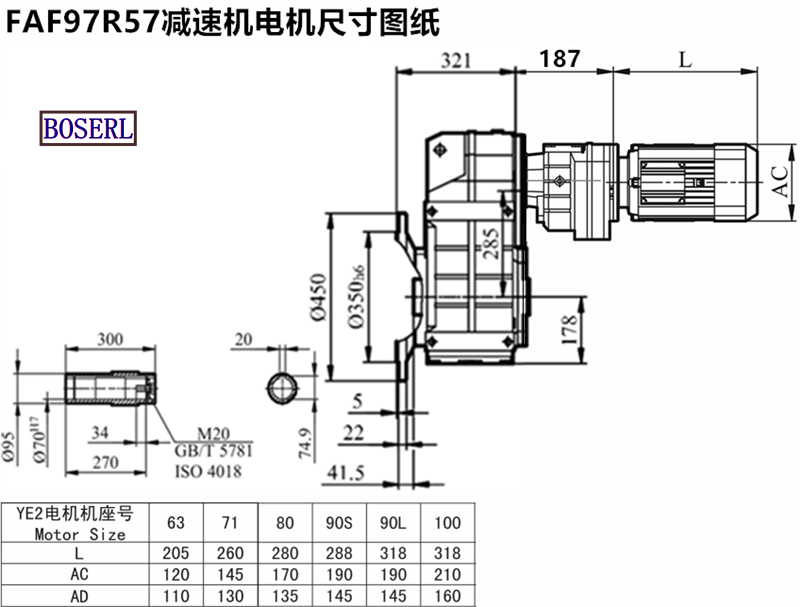

Faf97rf57-y0. 37kw motor for reductionInstall size drawings
Faf97rf57-y0. 37kw motor for reductionThe manufacturer, please make an appointment three days in advancebrakes motor-reducer
brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc
FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor
FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 2p0. 25kw parallel axle oscillation gear reduction motor faf97rf57-y0. 37 kw f97rf57-y2. 2kw
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FAF97RF57Y0.37KW减速机样本 |
|
| FAF97RF57Y0.37KW减速机三维图纸 |
|
