FAF97RF57-Y0.55KWDetailed Information
Keywords: 2p0. 25kw parallel axle slasher_faf97rf57-y0. 55kw_faf97rf57-y1. 5kw
FAF97RF57-Y0.55KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF97RF57-Y0.55KW | 1327 | 0.55KW | 1.00r/min | 4550N.m | 293kg | 29100N | 0.95 |
| FAF97RF57-Y0.55KW | 1171 | 0.55KW | 1.20r/min | 4080N.m | 293kg | 30500N | 1.05 |
| FAF97RF57-Y0.55KW | 1022 | 0.55KW | 1.40r/min | 3570N.m | 293kg | 31900N | 1.20 |
| FAF97RF57-Y0.55KW | 898 | 0.55KW | 1.50r/min | 3050N.m | 293kg | 33200N | 1.40 |
| FAF97RF57-Y0.55KW | 784 | 0.55KW | 1.80r/min | 2700N.m | 293kg | 34000N | 1.60 |
| FAF97RF57-Y0.55KW | 690 | 0.55KW | 2.00r/min | 2340N.m | 293kg | 34700N | 1.85 |
| FAF97RF57-Y0.55KW | 605 | 0.55KW | 2.30r/min | 2070N.m | 293kg | 35300N | 2.10 |
| FAF97RF57-Y0.55KW | 529 | 0.55KW | 2.60r/min | 1790N.m | 293kg | 35800N | 2.40 |
| FAF97RF57-Y0.55KW | 467 | 0.55KW | 3.00r/min | 1580N.m | 293kg | 36100N | 2.70 |
| FAF97RF57-Y0.55KW | 406 | 0.55KW | 3.40r/min | 1360N.m | 293kg | 36500N | 3.20 |
| FAF97RF57-Y0.55KW | 363 | 0.55KW | 3.80r/min | 1220N.m | 293kg | 36700N | 3.50 |
Faf97rf57-y1. 5kwreducing engine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF97RF57-Y1.5KW | 529 | 1.5KW | 2.70r/min | 4880N.m | 301kg | 19300N | 0.90 |
| FAF97RF57-Y1.5KW | 467 | 1.5KW | 3.10r/min | 4320N.m | 301kg | 29800N | 1.00 |
| FAF97RF57-Y1.5KW | 406 | 1.5KW | 3.50r/min | 3730N.m | 301kg | 31500N | 1.15 |
| FAF97RF57-Y1.5KW | 363 | 1.5KW | 3.90r/min | 3340N.m | 301kg | 32500N | 1.30 |
Faf97rf57-y0. 55kw deviation motorType:
F97rf57-y0. 55 kw bottom foot installation of parallel axes - tilt gearGearboc
Fa97brf57-y0. 55kw foot hollow axis installed parallel axle-slasher
Fv97brf57-y0. 55kw bottom foot flow axis installation of parallel axes - tilt gear deviators
Fa97rf57-y0. 55kw sky axes installation of parallel axes - tilt gear deviators
Fv97rf57-y0. 55kw sky axis installation of parallel axes - tilt-truck deviators
Faf97rf57-y0. 55kw is a parallel axle-slash gear-reducing machine for b5 franium axle
Fvf97rf57-y0. 55kw is the parallel axle-slash gear-reducing machine for the b5 flannel core axis
Faz97rf57-y0. 55kw is a parallel axle-slash gear-reducing machine for b14 frank
Fvz97rf57-y0. 55kw is the parallel axle of the b14 flannel axle-slasher
Ff97rf57-y0. 55kw is a parallel to the b5 installation of parallel axes - a tilt gear reduction machine
Fh97brf57-y0. 55kw foot hollow axle locks to install parallel axes-slash gear-reducing machines
Fh97rf57-y0. 55kw is a parallel axle-slash-slasher for empty axle locks
Fhf97rf57-y0. 55kw is the parallel axle for the b5 axle locker-slasher-slasher
Fhz97rf57-y0. 55kw is the parallel axle-slasher for the b14 aerocentric lockboard

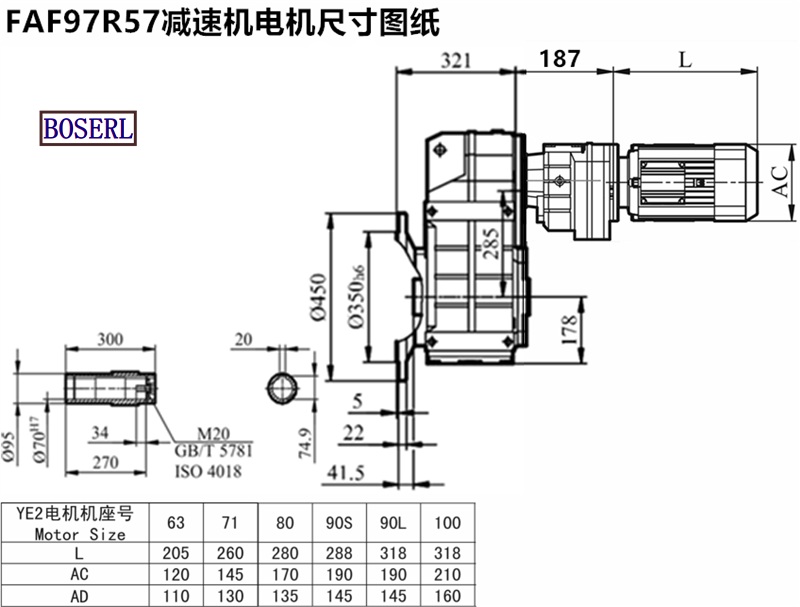

Faf97rf57-y0. 55kw deviation motorInstall size drawings
Faf97rf57-y0. 55kw deviation motorThe manufacturer, please make an appointment three days in advancebrakes motor-reducer
brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc
FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor
FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
