FAF97RF57-Y0.75KWDetailed Information
Keyword: 2p0. 25kw parallel axle gear-retardation power _faf97rf57-y0. 75kw_faf97rf57-y63m4
FAF97RF57-Y0.75KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF97RF57-Y0.75KW | 1022 | 0.75KW | 1.40r/min | 4710N.m | 294kg | 26300N | 0.90 |
| FAF97RF57-Y0.75KW | 898 | 0.75KW | 1.60r/min | 4050N.m | 294kg | 30600N | 1.05 |
| FAF97RF57-Y0.75KW | 784 | 0.75KW | 1.80r/min | 3580N.m | 294kg | 31900N | 1.20 |
| FAF97RF57-Y0.75KW | 690 | 0.75KW | 2.10r/min | 3110N.m | 294kg | 33000N | 1.40 |
| FAF97RF57-Y0.75KW | 605 | 0.75KW | 2.40r/min | 2740N.m | 294kg | 33900N | 1.55 |
| FAF97RF57-Y0.75KW | 529 | 0.75KW | 2.70r/min | 2380N.m | 294kg | 34600N | 1.80 |
| FAF97RF57-Y0.75KW | 467 | 0.75KW | 3.10r/min | 2100N.m | 294kg | 35200N | 2.00 |
| FAF97RF57-Y0.75KW | 406 | 0.75KW | 3.50r/min | 1810N.m | 294kg | 35700N | 2.40 |
| FAF97RF57-Y0.75KW | 363 | 0.75KW | 4.00r/min | 1620N.m | 294kg | 36100N | 2.60 |
Faf97rf57-y63m4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF97RF57-Y63M4 | 6469 | 0.12KW | 0.21r/min | 4140N.m | 283.5kg | 30400N | 1.05 |
| FAF97RF57-Y63M4 | 5615 | 0.12KW | 0.25r/min | 3820N.m | 283.5kg | 31300N | 1.15 |
| FAF97RF57-Y63M4 | 4961 | 0.12KW | 0.28r/min | 3320N.m | 283.5kg | 32500N | 1.30 |
| FAF97RF57-Y63M4 | 4333 | 0.12KW | 0.32r/min | 2900N.m | 283.5kg | 33500N | 1.50 |
| FAF97RF57-Y63M4 | 3906 | 0.12KW | 0.35r/min | 2690N.m | 283.5kg | 34000N | 1.60 |
| FAF97RF57-Y63M4 | 3352 | 0.12KW | 0.41r/min | 2320N.m | 283.5kg | 34800N | 1.85 |
| FAF97RF57-Y63M4 | 2907 | 0.12KW | 0.47r/min | 1910N.m | 283.5kg | 35500N | 2.20 |
| FAF97RF57-Y63M4 | 2553 | 0.12KW | 0.54r/min | 1750N.m | 283.5kg | 35800N | 2.40 |
Faf97rf57-y0. 75kw power motor for reduction machinesType:
F97rf57-y0. 75 kw bottom foot installation of parallel axes - tilt gearsGearboc
Fa97brf57-y0. 75kw foot hollow axis installed parallel axle-slasher
Fv97brf57-y0. 75kw bottom foot flow axis installation of parallel axes - tilt gear deviators
Fa97rf57-y0. 75 kw sky axes installation of parallel axes - tilt gear deviators
Fv97rf57-y0. 75kw sky axis installation of parallel axes - tilt-truck deviators
Faf97rf57-y0. 75kw is the parallel axle-slash gear-reducing machine for the b5 aerocentric axis
Fvf97rf57-y0. 75kw is the parallel axle-slash gear-reducing machine for the b5 flannel axis
Faz97rf57-y0. 75kw is a parallel axle-slash gear-reducing machine for b14 frank
Fvz97rf57-y0. 75kw is the parallel axis of the b14 flannel axle-slasher
Fff97rf57-y0. 75kw is a parallel to the b5-slash gear reduction machine
Fh97brf57-y0. 75kw foot hollow axle locks to install parallel axes - slash gears to slow down
Fh97rf57-y0. 75kw is a parallel axle-slasher for the empty axle lock
Fhf97rf57-y0. 75kw is a parallel axle for the b5 axle lock-drive-slasher
Fhz97rf57-y0. 75kw is a parallel axle-slasher for b14 franium axle lockboards-slashers

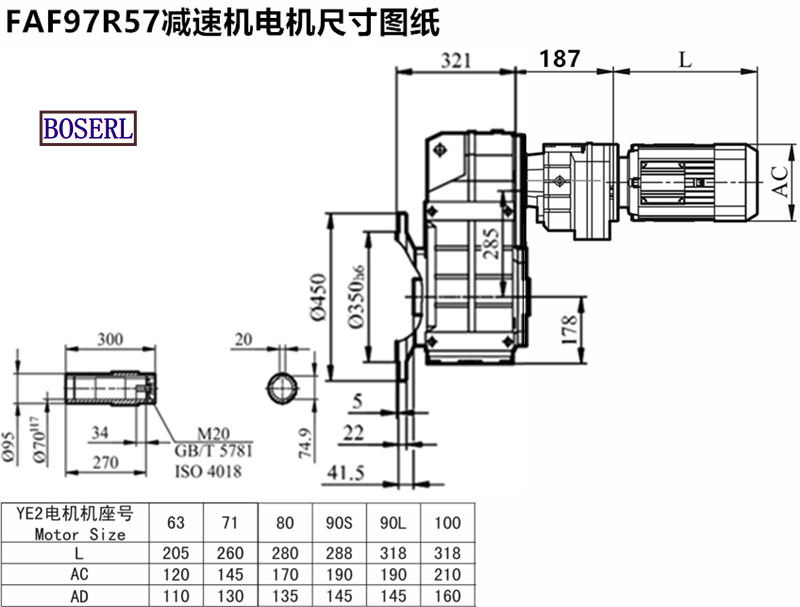

Faf97rf57-y0. 75kw power motor for reduction machinesInstall size drawings
Faf97rf57-y0. 75kw power motor for reduction machinesThe manufacturer, please make an appointment three days in advancebrakes motor-reducer
brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc
FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor
FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
