FAF97RF57-Y1.1KWDetailed Information
Keywords: 2p0. 25kw parallel axle slasher _faf97rf57-y1. 1kw_faf97rf57y-71m4
FAF97RF57-Y1.1KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF97RF57-Y1.1KW | 690 | 1.1KW | 2.10r/min | 4670N.m | 298kg | 27400N | 0.90 |
| FAF97RF57-Y1.1KW | 605 | 1.1KW | 2.40r/min | 4110N.m | 298kg | 30400N | 1.05 |
| FAF97RF57-Y1.1KW | 529 | 1.1KW | 2.70r/min | 3580N.m | 298kg | 31900N | 1.20 |
| FAF97RF57-Y1.1KW | 467 | 1.1KW | 3.00r/min | 3160N.m | 298kg | 32900N | 1.35 |
| FAF97RF57-Y1.1KW | 406 | 1.1KW | 3.50r/min | 2730N.m | 298kg | 33900N | 1.55 |
| FAF97RF57-Y1.1KW | 363 | 1.1KW | 3.90r/min | 2450N.m | 298kg | 34500N | 1.75 |
Faf97rf57y-71m4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FAF97RF57Y-71M4 | 1970 | 0.37KW | 0.70r/min | 4540N.m | 288.5kg | 29200N | 0.95 |
| FAF97RF57Y-71M4 | 1527 | 0.37KW | 0.90r/min | 3540N.m | 288.5kg | 32000N | 1.20 |
| FAF97RF57Y-71M4 | 1327 | 0.37KW | 1.00r/min | 2990N.m | 288.5kg | 33300N | 1.45 |
| FAF97RF57Y-71M4 | 1171 | 0.37KW | 1.20r/min | 2710N.m | 288.5kg | 33900N | 1.60 |
| FAF97RF57Y-71M4 | 1022 | 0.37KW | 1.40r/min | 2370N.m | 288.5kg | 34700N | 1.80 |
| FAF97RF57Y-71M4 | 898 | 0.37KW | 1.50r/min | 2000N.m | 288.5kg | 35400N | 2.10 |
| FAF97RF57Y-71M4 | 1722 | 0.37KW | 0.80r/min | 3990N.m | 288.5kg | 30800N | 1.10 |
Faf97rf57-y1. 1kw motor for reductionType:
F97rf57-y1. 1kw bottom foot installation parallel axes - tilt gearGearboc
Fa97brf57-y1. 1kw foot hollow axis installed parallel axle-slasher
Fv97brf57-y1. 1kw bottom foot flow axis installation of parallel axes - tilt gear deviators
Fa97rf57-y1. 1kw sky axes installation of parallel axes - tilt gear deviators
Fv97rf57-y1. 1kw sky axes installation of parallel axes - tilted gear deviators
Faf97rf57-y1. 1kw is the parallel axle-slash gear-reducing machine for the b5 aerocentric axis
Fvf97rf57-y1. 1kw is the parallel axle-slash gear-reducing machine for the b5 flannel axis
Faz97rf57-y1. 1kw is a parallel axis for b14frand - a slasher
Fvz97rf57-y1. 1kw is the parallel axis of the b14 flannel axle-slasher
Ff97rf57-y1. 1kw is a parallel axle for b5-slash gear reduction
Fh97brf57-y1. 1kw foot hollow axle locks to install parallel axes - slash gears to slow down
Fh97rf57-y1. 1kw is the parallel axle-slash-slasher for the empty axle lock
Fhf97rf57-y1. 1kw is the parallel axle for the b5 axle locker-slasher-slasher
Fhz97rf57-y1. 1kw is a parallel axle-slasher for the b14 aerocentric lockboard

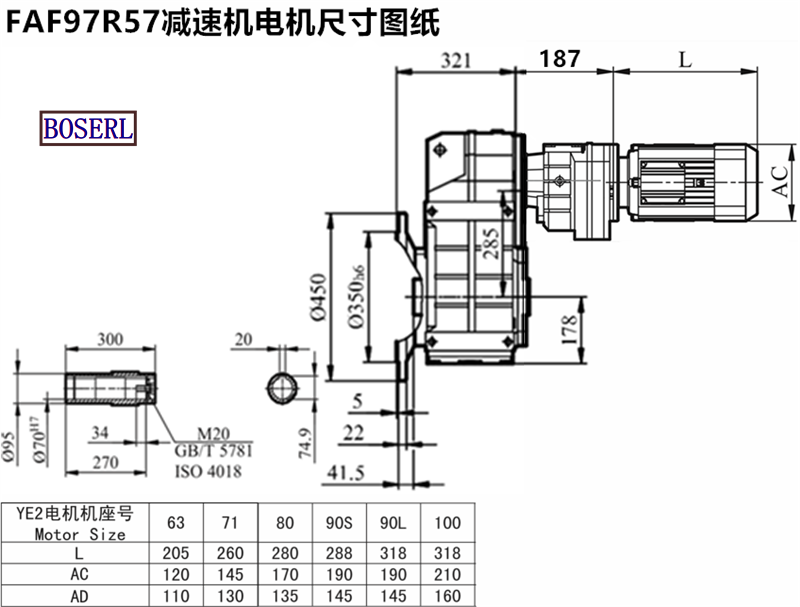

Faf97rf57-y1. 1kw motor for reductionInstall size drawings
Faf97rf57-y1. 1kw motor for reductionThe manufacturer, please make an appointment three days in advancebrakes motor-reducer
brakes motor-reducer,Motor with brake complete set,Motor reducer with brake Gearboc
FAF27 Reducer, FAF37 Reducer, FAF47 Reducer, FAF67 Reducer, FAF77 Reducer, FAF87 Reducer, FAF97 Reducer, FAF107 Gear Reducer, FAF127 Gear Reducer, FAF157 Gear Reducer Geared motor
FAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: 2p0. 25kw parallel-axis slasher faf97rf57-y1. 1kw faf97rf57y-71m4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FAF97RF57Y1.1KW减速机样本 |
|
| FAF97RF57Y1.1KW减速机三维图纸 |
|
