FF107R77DM63L4Detailed Information
Keyword: what parallel axle slasher is 4kw? _ ff107r77dm63l4_ff107r77drrs90l4
FF107R77DM63L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF107R77DM63L4 | 8548 | 0.18KW | 0.15r/min | 8440N.m | 444kg | 47700N | 0.90 |
| FF107R77DM63L4 | 7674 | 0.18KW | 0.17r/min | 8130N.m | 444kg | 48600N | 0.95 |
| FF107R77DM63L4 | 6767 | 0.18KW | 0.20r/min | 7070N.m | 444kg | 51400N | 1.10 |
| FF107R77DM63L4 | 5954 | 0.18KW | 0.22r/min | 6080N.m | 444kg | 53800N | 1.25 |
| FF107R77DM63L4 | 5223 | 0.18KW | 0.25r/min | 5290N.m | 444kg | 55700N | 1.45 |
| FF107R77DM63L4 | 4567 | 0.18KW | 0.29r/min | 4850N.m | 444kg | 56600N | 1.60 |
| FF107R77DM63L4 | 3521 | 0.18KW | 0.37r/min | 3670N.m | 444kg | 59100N | 2.10 |
| FF107R77DM63L4 | 3037 | 0.18KW | 0.43r/min | 3250N.m | 444kg | 59900N | 2.40 |
| FF107R77DM63L4 | 2756 | 0.18KW | 0.48r/min | 2950N.m | 444kg | 60500N | 2.60 |
| FF107R77DM63L4 | 2369 | 0.18KW | 0.56r/min | 2540N.m | 444kg | 61200N | 3.00 |
| FF107R77DM63L4 | 2068 | 0.18KW | 0.64r/min | 2210N.m | 444kg | 61800N | 3.50 |
Ff107r77drrs90l4 deviation motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF107R77DRS90L4 | 950 | 1.5KW | 1.50r/min | 8720N.m | 461kg | 46900N | 0.90 |
| FF107R77DRS90L4 | 834 | 1.5KW | 1.70r/min | 7630N.m | 461kg | 49900N | 1.00 |
| FF107R77DRS90L4 | 736 | 1.5KW | 1.90r/min | 6710N.m | 461kg | 52300N | 1.15 |
| FF107R77DRS90L4 | 640 | 1.5KW | 2.20r/min | 5890N.m | 461kg | 54300N | 1.30 |
| FF107R77DRS90L4 | 560 | 1.5KW | 2.60r/min | 5090N.m | 461kg | 56100N | 1.50 |
| FF107R77DRS90L4 | 489 | 1.5KW | 2.90r/min | 4440N.m | 461kg | 57500N | 1.75 |
| FF107R77DRS90L4 | 436 | 1.5KW | 3.30r/min | 4010N.m | 461kg | 58400N | 1.90 |
| FF107R77DRS90L4 | 370 | 1.5KW | 3.90r/min | 3400N.m | 461kg | 59600N | 2.30 |
Ff107r77dm63l4 deviation motorType:
F107r77dm63l4 bottom foot installation parallel axes - tilt gearGearboc
Fa107br77dm63l4 foot hollow axis installed parallel axle-slash gear brake
Fv107br77dm63l4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa107r77dm63l4 sky axes installation of parallel axes-slash gear deviators
Fv107r77dm63l4 installation of parallel axes - tilt-trinkler
Faf107r77dm63l4 is a parallel axle for the b5 aerocentric axle-slasher
Fvf107r77dm63l4 is the parallel axle of b5 francocardial axle-slasher
Faz107r77dm63l4 is a parallel axle for b14-slash gear reduction
Fvz107r77dm63l4 is a parallel axle of the b14-franco-axes-slash-slash-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steal-steed-steed-steed-steed-steed-steed-steed-stell-steed-steed-steed-steed-steed-steed-steed-steed-steed-steed-steed-steed-steward-steed-steed-sted-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-ste-sal-ste-ste-s
Ff107r77dm63l4 is a parallel to the b5-slash gear reduction machine
Fh107br77dm63l4 foot hollow axle locks to install parallel axes-slash gears reduction machines
Fh107r77dm63l4 is a parallel axle-slash-slash gear-discharger
Fhf107r77dm63l4 is the parallel axle of the b5 axle lock, the slasher
Fhz107r77dm63l4 is the parallel axle of the b14 axle lock plate-slasher

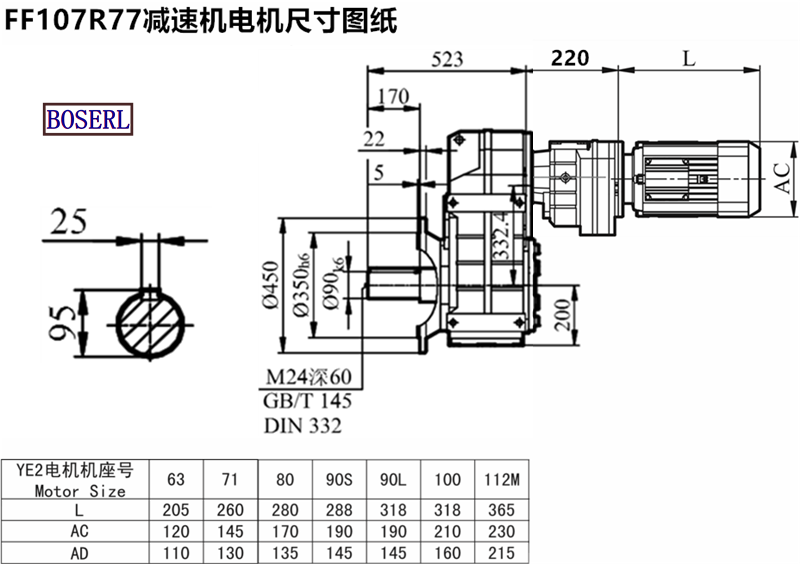

Ff107r77dm63l4 deviation motorInstall size drawings
Ff107r77dm63l4 deviation motorThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: What parallel axle slash-down power ff107r77dm63l4ff107r77drrs90l4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FF107R77DM63L4减速机样本 |
|
| FF107R77DM63L4减速机三维图纸 |
|
