FF107R77DM90S4Detailed Information
Keyword: what parallel axle reduction power is 200kw_ff107r77dm90s4_ff107r77drs80k4
FF107R77DM90S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF107R77DM90S4 | 1243 | 1.1KW | 1.10r/min | 8350N.m | 458kg | 48000N | 0.90 |
| FF107R77DM90S4 | 1087 | 1.1KW | 1.30r/min | 7380N.m | 458kg | 50600N | 1.05 |
| FF107R77DM90S4 | 950 | 1.1KW | 1.50r/min | 6380N.m | 458kg | 53100N | 1.20 |
| FF107R77DM90S4 | 834 | 1.1KW | 1.70r/min | 5570N.m | 458kg | 55000N | 1.40 |
| FF107R77DM90S4 | 736 | 1.1KW | 1.90r/min | 4890N.m | 458kg | 56500N | 1.55 |
| FF107R77DM90S4 | 6405 | 1.1KW | 2.20r/min | 4310N.m | 458kg | 7800N | 1.80 |
Fff107r77drrs80k4 deviation machine parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF107R77DRS80K4 | 2369 | 0.55KW | 0.58r/min | 8120N.m | 453kg | 48600N | 0.95 |
| FF107R77DRS80K4 | 2068 | 0.55KW | 0.67r/min | 7090N.m | 453kg | 51400N | 1.10 |
| FF107R77DRS80K4 | 1826 | 0.55KW | 0.76r/min | 6090N.m | 453kg | 53800N | 1.25 |
| FF107R77DRS80K4 | 1597 | 0.55KW | 0.86r/min | 5450N.m | 453kg | 55300N | 1.40 |
| FF107R77DRS80K4 | 1401 | 0.55KW | 0.98r/min | 4750N.m | 453kg | 56900N | 1.60 |
| FF107R77DRS80K4 | 1243 | 0.55KW | 1.10r/min | 4140N.m | 453kg | 58100N | 1.85 |
| FF107R77DRS80K4 | 1087 | 0.55KW | 1.30r/min | 3710N.m | 453kg | 59000N | 2.10 |
| FF107R77DRS80K4 | 950 | 0.55KW | 1.40r/min | 3170N.m | 453kg | 60100N | 2.40 |
| FF107R77DRS80K4 | 834 | 0.55KW | 1.70r/min | 2750N.m | 453kg | 60800N | 2.80 |
| FF107R77DRS80K4 | 640 | 0.55KW | 2.20r/min | 2140N.m | 453kg | 61900N | 3.60 |
Ff107r77dm90s4 deviation motorType:
F107r77dm90s4 bottom foot installation parallel axes - tilt gearGearboc
Fa107br77dm90s4 foot hollow axis installed parallel axle-slash gear brake
Fv107br77dm90s4 bottom feet sky axis installation of parallel axes - tilt gear deviators
Fa107r77dm90s4 sky axes installation of parallel axes - tilt gear deviators
Fv107r77dm90s4 sky axis installation of parallel axes - tilt-truck-trinkler
Faf107r77dm90s4 is the parallel axle-slash gear-reducing machine for the b5 aerocentric axis
Fvf107r77dm90s4 is a parallel axle-slash gear-reducing machine for the b5 flannel axle
Faz107r77dm90s4 is a parallel axle-slash gear-reducing machine for b14 frank
Fvz107r77dm90s4 is a parallel axle of the b14 flannel axle-slasher
Ff107r77dm90s4 is a parallel axle for b5-slash gear reduction
Fh107br77dm90s4 foot hollow axle locks, parallel axle-slasher
Fh107r77dm90s4 is a parallel axle-slash-slasher for an empty axle lock
Fhf107r77dm90s4 is a parallel axle-slasher for b5 axle lock
Fhz107r77dm90s4 is the parallel axle-slasher for the b14 axle lock

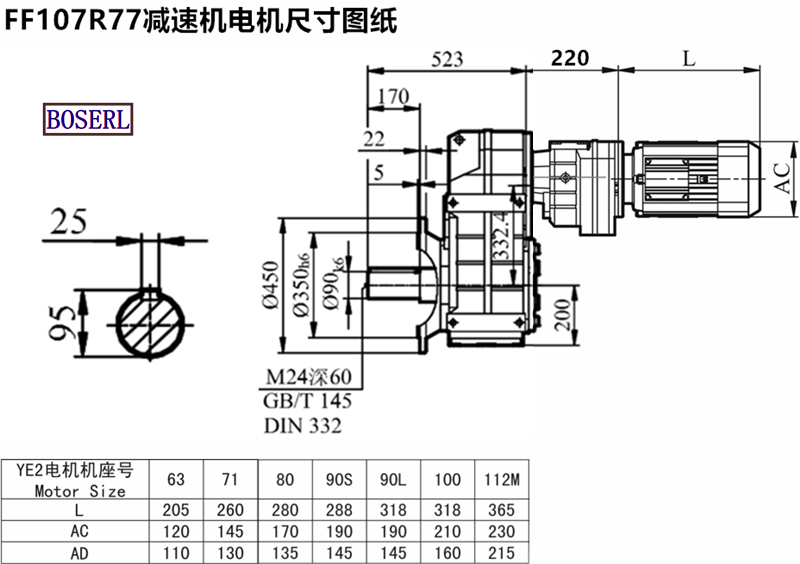

Ff107r77dm90s4 deviation motorInstall size drawings
Ff107r77dm90s4 deviation motorThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
