FF107R77DT100LC4Detailed Information
Keywords: 132kw for parallel axle gear-reducing power _ ff107r77dt100lc4_ff107r77drre90l4
FF107R77DT100LC4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF107R77DT100LC4 | 436 | 3KW | 3.30r/min | 7970N.m | 473kg | 49000N | 0.95 |
| FF107R77DT100LC4 | 370 | 3KW | 3.90r/min | 6760N.m | 473kg | 52200N | 1.15 |
| FF107R77DT100LC4 | 333 | 3KW | 4.40r/min | 6090N.m | 473kg | 53800N | 1.25 |
| FF107R77DT100LC4 | 291 | 3KW | 5.00r/min | 5320N.m | 473kg | 55600N | 1.45 |
Ff107r77dre90l4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF107R77DRE90L4 | 950 | 1.5KW | 1.50r/min | 8720N.m | 461kg | 46900N | 0.90 |
| FF107R77DRE90L4 | 834 | 1.5KW | 1.70r/min | 7630N.m | 461kg | 49900N | 1.00 |
| FF107R77DRE90L4 | 736 | 1.5KW | 1.90r/min | 6710N.m | 461kg | 52300N | 1.15 |
| FF107R77DRE90L4 | 640 | 1.5KW | 2.20r/min | 5890N.m | 461kg | 54300N | 1.30 |
| FF107R77DRE90L4 | 560 | 1.5KW | 2.60r/min | 5090N.m | 461kg | 56100N | 1.50 |
| FF107R77DRE90L4 | 489 | 1.5KW | 2.90r/min | 4440N.m | 461kg | 57500N | 1.75 |
| FF107R77DRE90L4 | 436 | 1.5KW | 3.30r/min | 4010N.m | 461kg | 58400N | 1.90 |
| FF107R77DRE90L4 | 370 | 1.5KW | 3.90r/min | 3400N.m | 461kg | 59600N | 2.30 |
Ff107r77dt100lc4 deviation motorType:
F107r77dt100lc4 bottom foot installation parallel axes - tilt gearGearboc
Fa107br77dt100lc4 foot hollow axis installed parallel axle-slash gear brake
Fv107br77dt100lc4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa107r77dt100lc4 sky axes installation of parallel axes - tilt gear deviators
Fv107r77dt100lc4 sky axis installation of parallel axes - tilt gear deviators
Faf107r77dt100lc4 is the parallel axle of the b5 aerocentric axle-slasher
Fvf107r77dt100lc4 is a parallel axle-slash gear-reducing machine for the b5 flannel core
Faz107r77dt100lc4 is a parallel to the b14 flange-slash gear reduction machine
Fvz107r77dt100lc4 is a parallel axle of the b14 flannel axle-slasher
Ff107r77dt100lc4 is a parallel to the b5-slash gear reduction machine
Fh107br77dt100lc4 foot hollow axle locks, parallel axle-slash gear reduction machine
Fh107r77dt100lc4 is a parallel axle-slash-slasher for an empty axle lock
Fhf107r77dt100lc4 is a parallel axle for the b5 axle lock-drive
Fhz107r77dt100lc4 is a parallel axle-slash-slasher for the b14 axle lock

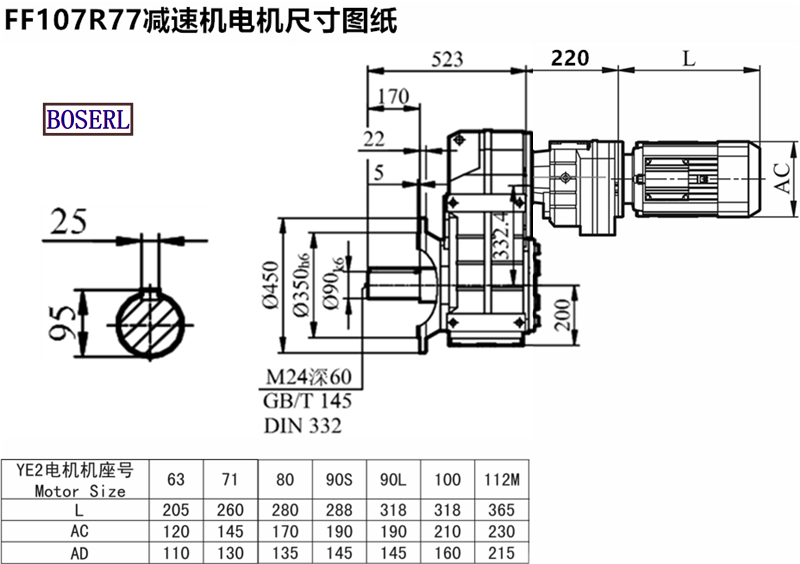

Ff107r77dt100lc4 deviation motorInstall size drawings
Ff107r77dt100lc4 deviation motorThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
标签: What kind of parallel axle gear-reducing power ff107r77dt100lc4ff107r77drre90l4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| FF107R77DT100LC4减速机样本 |
|
| FF107R77DT100LC4减速机三维图纸 |
|
