FF107R77DT71D4Detailed Information
Keyword: what parallel axle slasher is 55kw? _ ff107r77dt71d4_ff107r77dre80mk4
FF107R77DT71D4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF107R77DT71D4 | 3037 | 0.37KW | 0.45r/min | 6850N.m | 448.5kg | 52000N | 1.10 |
| FF107R77DT71D4 | 2756 | 0.37KW | 0.50r/min | 6210N.m | 448.5kg | 53500N | 1.25 |
| FF107R77DT71D4 | 2369 | 0.37KW | 0.58r/min | 5340N.m | 448.5kg | 55500N | 1.45 |
| FF107R77DT71D4 | 2068 | 0.37KW | 0.67r/min | 4660N.m | 448.5kg | 57000N | 1.65 |
| FF107R77DT71D4 | 1597 | 0.37KW | 0.86r/min | 3570N.m | 448.5kg | 59300N | 2.20 |
Ff107r77dre80mk4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| FF107R77DRE80MK4 | 2369 | 0.55KW | 0.58r/min | 8120N.m | 453kg | 48600N | 0.95 |
| FF107R77DRE80MK4 | 2068 | 0.55KW | 0.67r/min | 7090N.m | 453kg | 51400N | 1.10 |
| FF107R77DRE80MK4 | 1826 | 0.55KW | 0.76r/min | 6090N.m | 453kg | 53800N | 1.25 |
| FF107R77DRE80MK4 | 1597 | 0.55KW | 0.86r/min | 5450N.m | 453kg | 55300N | 1.40 |
| FF107R77DRE80MK4 | 1401 | 0.55KW | 0.98r/min | 4750N.m | 453kg | 56900N | 1.60 |
| FF107R77DRE80MK4 | 1243 | 0.55KW | 1.10r/min | 4140N.m | 453kg | 58100N | 1.85 |
| FF107R77DRE80MK4 | 1087 | 0.55KW | 1.30r/min | 3710N.m | 453kg | 59000N | 2.10 |
| FF107R77DRE80MK4 | 950 | 0.55KW | 1.40r/min | 3170N.m | 453kg | 60100N | 2.40 |
| FF107R77DRE80MK4 | 834 | 0.55KW | 1.70r/min | 2750N.m | 453kg | 60800N | 2.80 |
| FF107R77DRE80MK4 | 640 | 0.55KW | 2.20r/min | 2140N.m | 453kg | 61900N | 3.60 |
Ff107r77dt71d4reducing motorType:
F107r77dt71d4 bottom foot installation parallel axes - tilt gearGearboc
Fa107br77dt71d4 foot hollow axis installed parallel axle-slash gear brakes
Fv107br77dt71d4 bottom feet axis installation of parallel axes - tilt gear deviators
Fa107r77dt71d4 sky axes installation of parallel axes - tilt gear deviators
Fv107r77dt71d4 installation of parallel axes - tilt gear deviators
Faf107r77dt71d4 is a parallel axle-slash gear-reducing machine for b5 aerocentric axis
Fvf107r77dt71d4 is a parallel axle-slash gear-reducing machine for the b5 flannel core
Faz107r77dt71d4 is a parallel axle for b14-slash gear reduction
Fvz107r77dt71d4 is a parallel axle-slash gear-reducing machine for the b14 flannel axis
Ff107r77dt71d4 is a parallel to the b5-slash-pattern brake
Fh107br77dt71d4 foot hollow axle locks, parallel axle-slasher
Fh107r77dt71d4 is a parallel axle-slash-slasher for an empty axle lock
Fhf107r77dt71d4 is a parallel axle of b5 axle locks, a slasher
Fhz107r77dt71d4 is a parallel axle for the b14 axle lock-drive

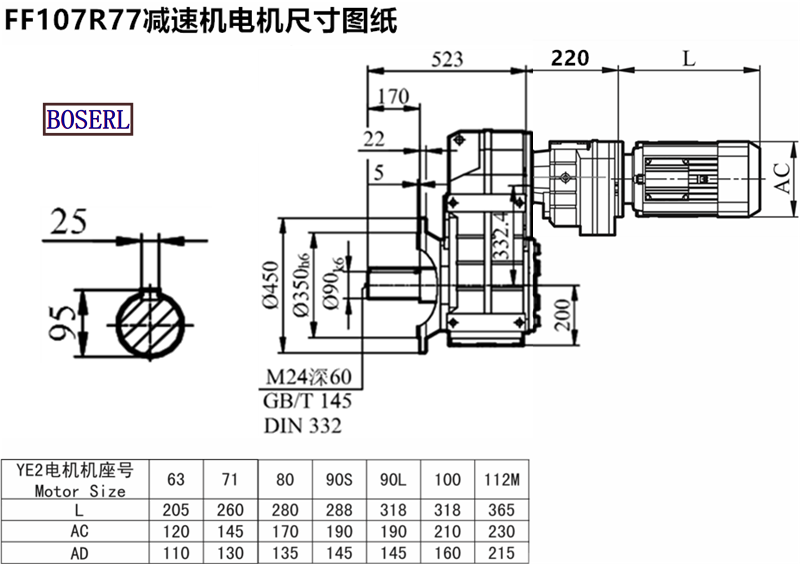

Ff107r77dt71d4reducing motorInstall size drawings
Ff107r77dt71d4reducing motorThe manufacturer, please make an appointment three days in advanceInduction Motor 3Ph
Induction Motor 3Ph,400VAC motor reducer,230VAC motor reducer Gearboc
FF27 gearbox, FF37 gearbox, FF47 gearbox, FF67 Gear Reducer, FF77 Gear Reducer, FF87 Gear Reducer, FF97 Gear Reducer, FF107 Gear Reducer, FF127 Gear Reducer, FF157 Gear Reducer Geared motor
FF Series Gear Reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 132KW
